Ajax DoorProtect U Wireless Door/Window Contact, Jeweller, CR123A, Black, 121294.03.BL1

Introduction: Ajax DoorProtect U and its key features

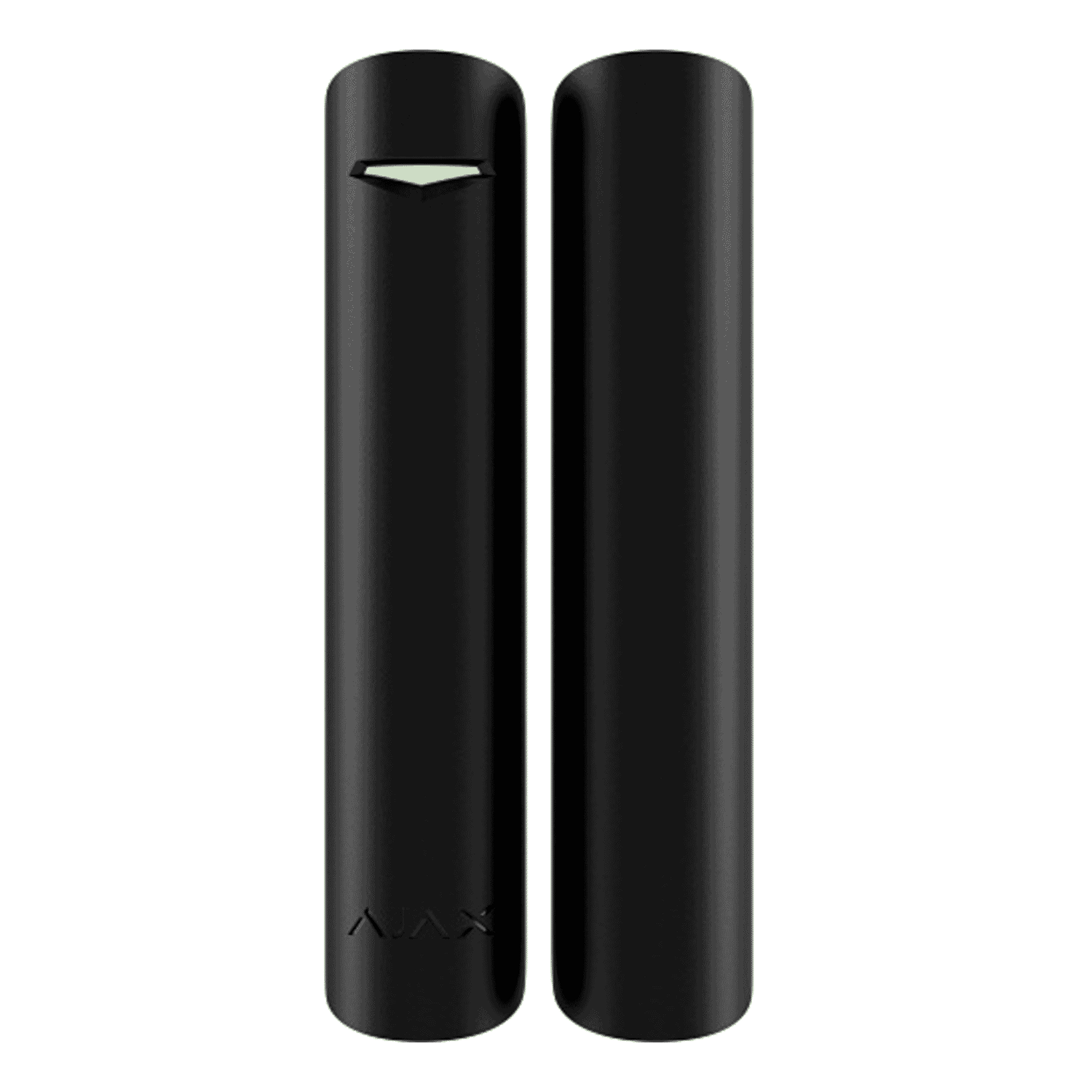

Ajax DoorProtect Uis a compact wireless magnetic door and window contact designed for professional and residential intrusion systems. It combines a sealed dual reed sensing element, flexible magnet options, and the Jeweller two-way encrypted radio protocol to deliver reliable open/close detection and secure communications with an Ajax Hub and central monitoring systems. With a pre-installed CR123A battery rated for up to seven years under typical conditions, tamper protection via the SmartBracket and a simple external NC input for wired devices, DoorProtect U aims to be a dependable, low-maintenance component in modern alarm installations.

Detailed specifications and benefits

Knowing what the DoorProtect U offers on paper helps explain why it is popular with installers, integrators and homeowners. The following sections summarise the product specifications and the practical benefits they provide:

The unit is compact and unobtrusive: detector dimensions are 103 × 22 × 21 mm, with a choice of two magnet sizes—big magnet approximately the same size as the detector and a small magnet around 55 × 11 × 6 mm. Weight is light (≈ 34 g for the black model), and the device mounts on a SmartBracket plate with a physical tamper screw for secure fitting. These physical attributes make DoorProtect U suitable for visible surface mounting on doors and windows where ease of installation and aesthetics matter.

DoorProtect U ships with a pre-installed CR123A battery (nominal 3 V) and an expected battery life of up to seven years under a conservative usage profile (10 open/close cycles per day with 60-second polling). This extended life reduces maintenance visits and battery management overhead for large systems. The device also provides an NC input to monitor a third-party wired detector (the external detector is not powered by DoorProtect U), enabling hybrid installations that mix wireless contacts with existing wired sensors.

The product uses Ajax’s Jeweller two-way encrypted radio protocol. In open space the range can reach approximately 1,200 m; real-world range will vary depending on building materials and obstacles. Two-way communication ensures the hub and sensor exchange status and acknowledgement messages, which improves reliability and reduces false alarms from missed or corrupted transmissions. The encrypted link enhances security versus simple unencrypted RF devices.

Detection relies on sealed dual reed relays delivering robust magnetic contact sensing. Two magnet sizes give flexibility: the small magnet generally triggers at ≤ 1 cm, while the big magnet can actuate at up to ≈ 2 cm depending on mounting. The sealed relays help maintain reliable operation in normal indoor environments and reduce susceptibility to dust and mechanical wear. Tamper detection is implemented via the SmartBracket and a physical screw option, which triggers an alarm if the device is removed or tampered with.

DoorProtect U is designed for indoor use with an operating temperature range of −10 °C to +40 °C and relative humidity up to 75% non‑condensing. Ingress protection is rated IP50 and impact protection noted as IK04 on reseller pages. The device requires an Ajax Hub (sold separately) and works with Ajax apps, range extenders and PRO monitoring platforms. It also requires up-to-date Ajax OS (Malevich) firmware for full functionality. Warranty coverage is two years.

Use cases and scenarios where DoorProtect U excels

DoorProtect U fits a broad set of deployments. Below are common scenarios where its features particularly shine:

• Residential front/back doors:The compact form factor and long battery life make DoorProtect U an ideal choice for homeowners who want reliable protection without frequent battery changes or intrusive wiring. The tamper detection gives additional security against device removal.
• Apartment and multi‑unit systems:For property managers and integrators monitoring multiple flats, the two-way encrypted radio and long battery life reduce maintenance overhead and provide stable connectivity to the hub and central monitoring stations.
• Retrofit projects:When upgrading older wired alarm systems, DoorProtect U’s NC input allows integration of existing wired sensors into a wireless Ajax system, lowering installation time and preserving investments in already-installed detectors.
• Commercial doors and access points:Small shops, offices and storage areas benefit from the device’s straightforward mounting, reliable magnetic sensing and range options when combined with Ajax Hubs and extenders—particularly in locations where running new cable is impractical.
• Temporary or remote installations:Events, pop-up stores or remote cabins that need short-term yet dependable intrusion detection can use the wireless DoorProtect U to create a full alarm perimeter without permanent wiring.

Comparisons with similar products on the market

When choosing a door/window contact, installers compare factors such as reliability, battery life, communication security, integration and ease of installation. DoorProtect U competes well across these dimensions, especially when weighed against three broad alternatives:

Wired contacts avoid batteries and can be viewed as more tamper-resistant in some setups; however, they require cable runs and may add significant labour and cost in retrofit or multi-point deployments. DoorProtect U eliminates cabling needs and adds encrypted wireless communication and tamper detection, making it more flexible for modern alarm installations.

Simpler one-way RF contacts may be less expensive initially but lack acknowledgement of message receipt, making them more susceptible to missed signals or interference. DoorProtect U’s two‑way Jeweller protocol ensures handshakes and acknowledgements, improving overall system reliability and making it a better choice for monitored systems where missed alarms are unacceptable.

Some competitors offer similar two-way wireless contacts, but differences typically come down to ecosystem features (app support, CMS integration), encryption strength, radio range and battery life. DoorProtect U stands out thanks to a proven ecosystem (Ajax Hubs and apps), long CR123A battery life, flexible magnet options and a real-world range suitable for most residential and light commercial sites. The NC input is also a differentiator for hybrid installations.

Customer feedback and typical reviews

While responses vary by installation and user expectations, typical feedback themes from professional installers and end users include:

• Installers appreciate:straightforward mounting on the SmartBracket, flexible magnet sizing to suit different frame types, the NC input for integrating legacy wired sensors, and reliable two-way communications that reduce call-backs.
• Homeowners report:long battery life and low maintenance, compact unobtrusive styling (especially in black or white variants), and peace of mind from the encrypted radio link and tamper detection.
• Property managers note:ease of scaling with Ajax Hub ecosystems and remote device management through the Ajax apps, which streamlines managing many doors or units.

Representative, anonymised example comments you might see in installer notes or user feedback include:

• "Battery life is excellent—installed a set two years ago and they’re still going strong."
• "The NC input saved us time on a retrofit project; no need to rewire the old sensor loop."
• "Range and communication are solid across the property once paired with a Hub and an extender where needed."

Note: These example comments are representative summaries of common feedback trends rather than verbatim testimonials from identified individuals.

Price and purchasing considerations

DoorProtect U is positioned as a mid-range wireless contact suitable for professional installations. The suggested retail price is approximately 46.31 (local currency dependent), with a supplier cost around 38.90—making it a cost-effective choice when long battery life, secure two-way communication and integration with a professional alarm ecosystem are required. Remember that the device requires an Ajax Hub (sold separately) and may need range extenders in larger properties to maintain robust coverage.

Conclusion: Why DoorProtect U is a great choice

Ajax DoorProtect U is a practical, reliable and flexible magnetic door/window contact that meets the needs of modern intrusion systems. Its combination of Jeweller two-way encrypted radio, long CR123A battery life, sealed reed contacts, two magnet sizes and an NC input for wired detectors places it well for both new installations and retrofit projects. Tamper protection via SmartBracket and compatibility with Ajax Hubs, apps and monitoring services make the device a strong choice for homeowners, installers and property managers who want secure, low-maintenance perimeter protection.

In short, if you need a wireless door/window contact that balances reliability, battery longevity and flexible installation options in a compact package, DoorProtect U is worth serious consideration—especially when deployed as part of a managed Ajax security system supported by professional monitoring or Ajax’s in-app management tools.
