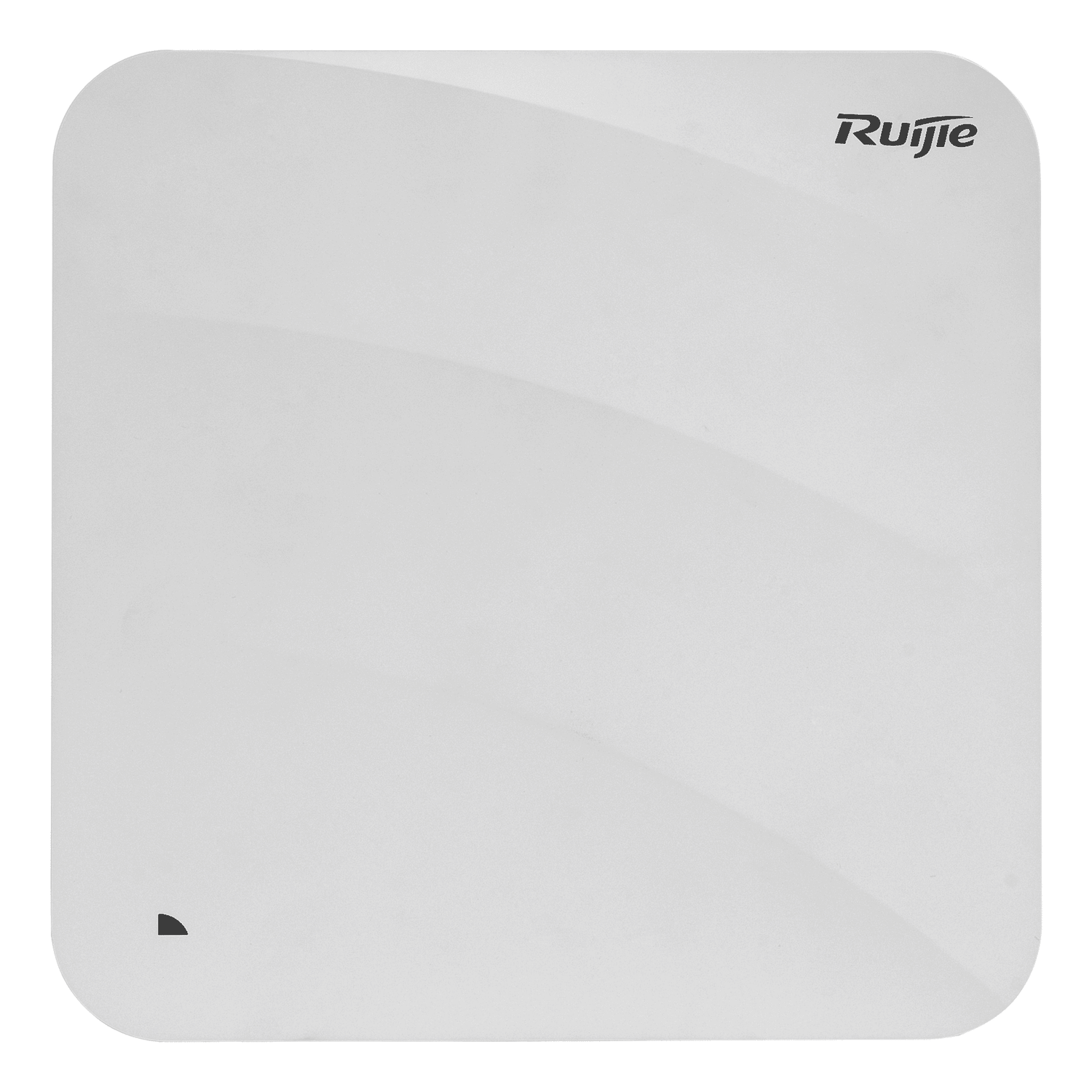

Ruijie RG-AP880-L Tri‑Radio Wi‑Fi 6E Access Point, 7.78 Gbps

Introduction to the Ruijie RG-AP880-L and its key features

Ruijie RG-AP880-Lis an enterprise-grade indoor Wi‑Fi 6E access point engineered for high-density environments where performance, reliability and future-proofing matter. As a tri‑radio access point operating across 2.4 GHz, 5 GHz and the newly opened 6 GHz band, it delivers a combined peak wireless throughput of up to7.78 Gbps. The RG-AP880-L combines advanced radio technologies (OFDMA, MU‑MIMO, 1024‑QAM/HE), multi‑gig wired connectivity and flexible management options (cloud, local controller or standalone modes) to meet the demands of campuses, auditoria, enterprise offices and dense public venues.

• Tri‑radio Wi‑Fi 6E (2.4 / 5 / 6 GHz) supporting up to eight spatial streams.
• Combined peak wireless throughput of up to 7.78 Gbps.
• Multi‑gig wired ports and SFP combo for high‑capacity backhaul.
• Flexible power options: PoE (802.3af/at/bt) and DC input.
• Cloud and local management with a free mobile app for monitoring and administration.

Detailed specifications and benefits

• Radio design:Tri‑radio operation across 2.4 / 5 / 6 GHz. The dedicated 6 GHz radio unlocks wider channel widths and additional spectrum where permitted by local regulators.
• Spatial streams and throughput:2x2 on 2.4 GHz, 2x2 on 5 GHz and 4x4 on 6 GHz — up to eight spatial streams in total. Peak combined throughput is up to 7.78 Gbps (6 GHz up to 4.804 Gbps; 5 GHz up to 2.402 Gbps; 2.4 GHz up to 574 Mbps).
• Advanced PHY and MAC features:IEEE 802.11ax (Wi‑Fi 6/6E) with OFDMA and MU‑MIMO improves spectral efficiency in high‑density scenarios, reducing latency and improving overall user experience. WPA3 support enhances security for modern deployments.
• Client capacity:The AP is recommended for roughly 300 active devices in dense environments, with a maximum associated client count of up to 1,536. Multiple BSSIDs (up to 45, or up to 15 per radio) and enterprise client management features (roaming 802.11k/v/r, client steering, load balancing) help maintain service quality as device counts scale.

Benefit: Together, these wireless capabilities translate into higher sustained throughput per user in congested areas, better latency characteristics for real‑time applications (VoIP, video conferencing) and the ability to onboard many IoT endpoints without sacrificing performance for human users.

• Ethernet:1 × multi‑gig BASE‑T (100/1000/2.5G/5G), 1 × 5GE SFP/RJ45 combo and 1 × 10/100/1000 BASE‑T downlink port. This mix gives both high‑speed uplink options and a downlink for powering or connecting a downstream device.
• USB and PoE:A USB port is included (PSE via 802.3bt when supported). The AP supports 802.3af, 802.3at and 802.3bt PoE standards and can also accept DC power input. Maximum power consumption is around 40 W under full load.
• Form factor:Ceiling or wall mount with bracket included; compact dimensions (230 × 230 × 51 mm) and a weight of approximately 1.0 kg make deployment straightforward.

Benefit: Multi‑gig and SFP options let you architect resilient backhaul — either copper or fibre — and the various PoE classes allow deployment on modern PoE++ switches or legacy PoE infrastructure with scaled functionality.

• Management:Compatible with Ruijie Cloud, traditional controller (AC) and fit/fat/cloud modes. A free Ruijie Cloud mobile app simplifies on‑site testing, commissioning and ongoing monitoring.
• Reliability:Designed for enterprise uptime with an MTBF of approximately 394,941 hours (at 25°C) and operating range −10°C to +50°C with 5%–95% non‑condensing humidity tolerance.
• Regulatory:6 GHz operation depends on regional regulatory approval. Installers must verify local channel availability and compliance (CE/UKCA or other national certification) before enabling 6 GHz radios.

Benefit: Cloud and controller options give IT teams the flexibility to run centralized policy, analytics and security while retaining the option for on‑premises control. The built‑in reliability figures and environmental tolerances mean the AP can be trusted for continuous service in typical indoor enterprise deployments.

Use cases and scenarios where the RG-AP880-L excels

• Enterprise offices:The combination of high client capacity, multi‑gig uplinks and performance features makes the AP ideal for open‑plan offices, hot‑desk areas and meeting rooms where videoconferencing and cloud apps demand consistent throughput.
• Campus and education:Lecture theatres, libraries and student hubs see highly variable and dense usage. The 6 GHz radio provides clean spectrum for latency‑sensitive lecture capture and collaboration tools, while client management features ensure roaming across buildings.
• Auditoria and event spaces:Large auditoria and multi‑use event spaces benefit from the AP’s ability to handle hundreds of concurrent devices and offer dedicated capacity using multiple SSIDs and BSSIDs for segregated services.
• Dense public venues and stadium concourses:When provisioned across many APs, the tri‑radio design helps separate bandwidth‑hungry client groups and offload traffic across bands for consistent user experience in congested environments.
• IoT and location services:Built‑in Bluetooth 5.1 supports location services and BLE‑based IoT devices, enabling asset tracking, proximity services and beaconing alongside traditional Wi‑Fi clients.

Deployment considerations: allow for proper PoE power budgeting (802.3bt for full feature sets), plan backhaul capacity (use multi‑gig or SFP for uplinks) and consult local rules for 6 GHz operation. Proper placement, channel planning and a site survey will optimise coverage in any of the above scenarios.

Comparisons with similar products on the market

Within the Wi‑Fi 6E access point category, the market contains offerings from several established vendors. When comparing the RG-AP880-L to other enterprise Wi‑Fi 6E APs, consider the following differentiators:

• Tri‑radio vs dual‑radio designs:Tri‑radio APs like the RG-AP880-L dedicate a radio to the 6 GHz band, unlocking additional capacity and simplified band steering. Dual‑radio Wi‑Fi 6E APs may share radio resources between 5 GHz and 6 GHz, which can limit peak performance in certain configurations.
• Backhaul options:The multi‑gig BASE‑T port combined with a 5GE SFP/RJ45 combo gives deployment flexibility compared with APs that only support single‑gig or lack fibre connectivity.
• Power budget:Support for 802.3bt PoE++ allows the AP to draw enough power for full functionality (higher transmit power, USB PSE), whereas some competitors require DC power or do not support PoE++.
• Management:Ruijie’s cloud management offering and mobile app are competitive with other vendor clouds; feature parity (zero‑touch provisioning, analytics, firmware management) is an important selection criterion for IT teams.
• Price vs capability:With a suggested price point of 549.0 (cost price 460.03), the RG-AP880-L positions itself as a capable mid‑to‑high tier enterprise AP. Total cost of ownership considerations should include support, licensing for cloud/controller features and any required infrastructure upgrades (switch PoE class, fibre uplinks).

In short, the RG-AP880-L is competitive where dedicated 6 GHz capacity, multi‑gig uplinks and enterprise management features are required. Buyers should match AP capabilities to site needs and verify regulatory availability of 6 GHz channels in their country.

Customer testimonials and review summary

At the time of writing there are no verified public testimonials included with the product datasheet provided here. However, common themes that enterprises report when deploying Wi‑Fi 6E tri‑radio APs — and that prospective users can expect with the RG-AP880-L — include the following observations:

• Performance gains:IT teams typically note lower congestion on 6 GHz and improved throughput for modern client devices that support Wi‑Fi 6E.
• Better user experience in dense areas:Facilities with many simultaneous users observe fewer drops and improved video conferencing performance after upgrading to tri‑radio APs.
• Simplified management:Organisations that use cloud management appreciate centralized monitoring and the ability to roll out firmware updates and policies without on‑prem controller maintenance.
• Installation caveats:Installers often emphasise the need to verify PoE budgets and to confirm 6 GHz regulatory status before enabling the band; some note that full capability requires PoE++ or DC supply.

These summary points reflect typical feedback across similar Wi‑Fi 6E deployments rather than site‑specific endorsements. For live testimonials, check vendor listings, reseller pages or independent review sites once the AP is in broad commercial use.

Conclusion — why choose the Ruijie RG-AP880-L?

The Ruijie RG-AP880-L is a strong contender for organisations planning to deploy high‑capacity indoor wireless across campuses, enterprise offices and dense public spaces. Its tri‑radio architecture with a dedicated 6 GHz radio, up to 7.78 Gbps combined throughput, multi‑gig and SFP backhaul options, and flexible power and management modes provide a balanced mix of performance, resilience and operational convenience.

Key advantages include the ability to serve hundreds of concurrent users with modern Wi‑Fi 6E features, flexible deployment choices (PoE classes, SFP or copper uplinks), and cloud or on‑premises management that aligns with varied IT strategies. The device’s recommended use in environments such as education, finance, government and large enterprises — together with built‑in BLE for location services — makes it suitable for forward‑looking wireless architectures.

Before purchase and commissioning, verify local 6 GHz regulatory rules and plan for PoE power delivery if you intend to use the AP at full capability. When those factors are aligned, the RG-AP880-L offers a future‑proof platform that can form the backbone of a reliable, high‑performance enterprise wireless network.
