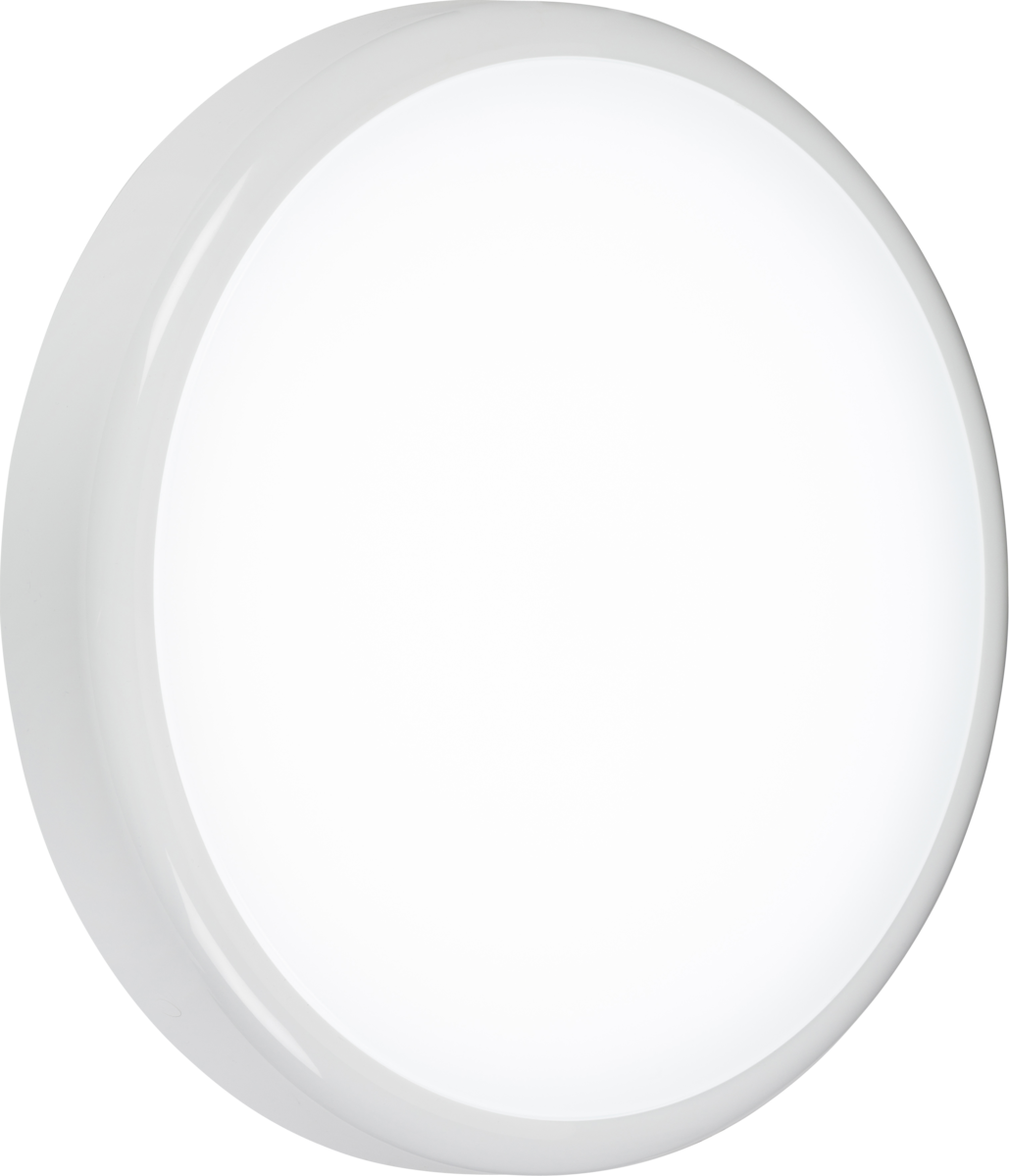

CCT Adjustable LED Bulkhead with Sensor
Introducing the 230V IP65 20W CCT Adjustable LED Bulkhead with Sensor, a versatile solution ideal for both indoor and outdoor applications. This LED luminaire features:
- CCT adjustable settings at 3000K / 4000K / 5700K for tailored lighting.
- High lumen output with options delivering up to 1930lm.
- Hinged LED gear tray for easy access and maintenance.
- Adjustable microwave sensor for detecting motion, with customizable lux and hold time settings.
- Durable polycarbonate construction ensuring long life and energy efficiency.
Your reliable choice for enhancing illumination in commercial, office, or multi-occupancy settings.
Complies with CE and UKCA regulations.
Specifications
Dimensions
Lamp
Driver
Luminaire
Photometric
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP65 |
Construction | Polycarbonate |
Primary Voltage | 230V 50Hz |
Dimensions
Diameter | 380 mm |
---|---|
Projection | 81 mm |
Lamp
L70B50 | 50,000 |
---|---|
Dimmable | No |
Beam Angle | 115 |
Lamp Included | Yes |
Lamp Technology | SMD LED |
Energy Rating (Class) post 2021 SLR | E |
Driver
Driver Type | Constant Current |
---|
Luminaire
Diffuser | Opal |
---|
Photometric
CCT | 3000/4000/5700 K |
---|---|
CRI | >80 |
Lumens | 1730 / 1930 / 1855 lm |
Wattage | 20 |
Light Colour | CCT |
Efficacy (Light source) | 126 lm/W |
Lumens (Light source only) | 2190 lm |
CCT Adjustable LED Bulkhead with Sensor features

230V IP65 20W CCT Adjustable LED Bulkhead with Sensor, Up to 1930lm, Durable Polycarbonate, BT20ACTS
