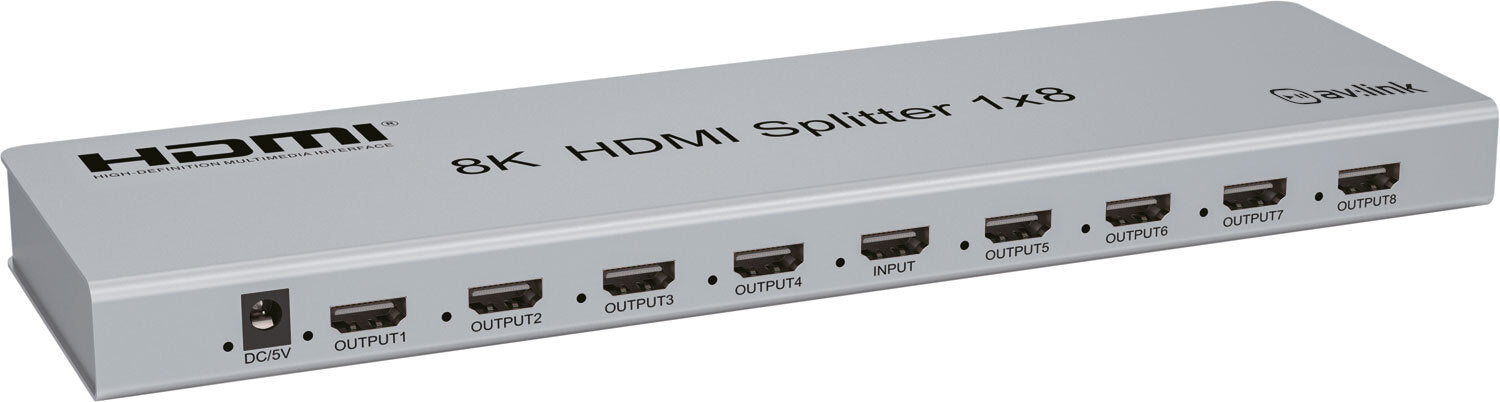

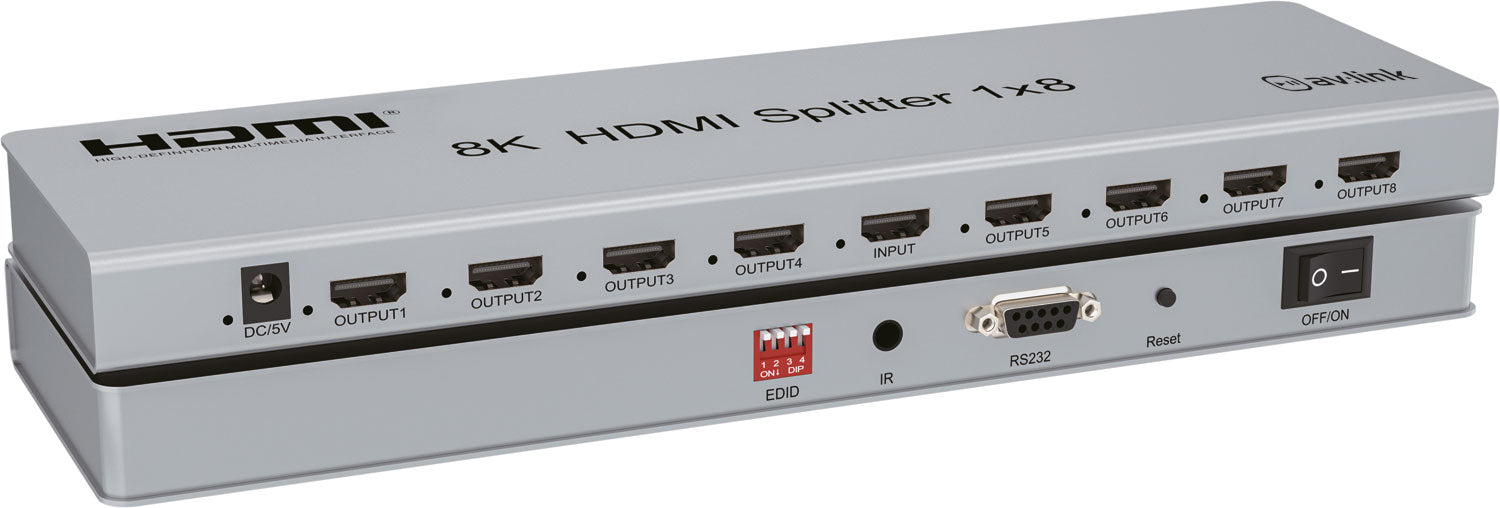

AV:Link: 128.863UK, 8K HDMI Splitter, 1x8, EDID Support, Up to 7680 x 4320 @ 60Hz, Metal Chassis

Product Overview & Key Benefits

The8K HDMI Splitter with EDIDis a state-of-the-art device designed to enhance the experience of connecting a single HDMI source to multiple displays effortlessly. Ideal for applications ingaming, entertainment, hospitality, and commercial venues, this splitter supports remarkable resolutions up to7680 x 4320 @ 60Hz. It boasts innovative features such as an8-mode EDID switchthat provides users with precise audio and video format selection, making it perfect for those who demand flexibility and quality in their visual presentations.

Technical Specifications & Product Details

• Weight:864g
• Dimensions:310 x 90 x 24mm
• Audio Formats Supported:DTS-HD, Dolby TrueHD, DTS, Dolby-AC3 and DSD

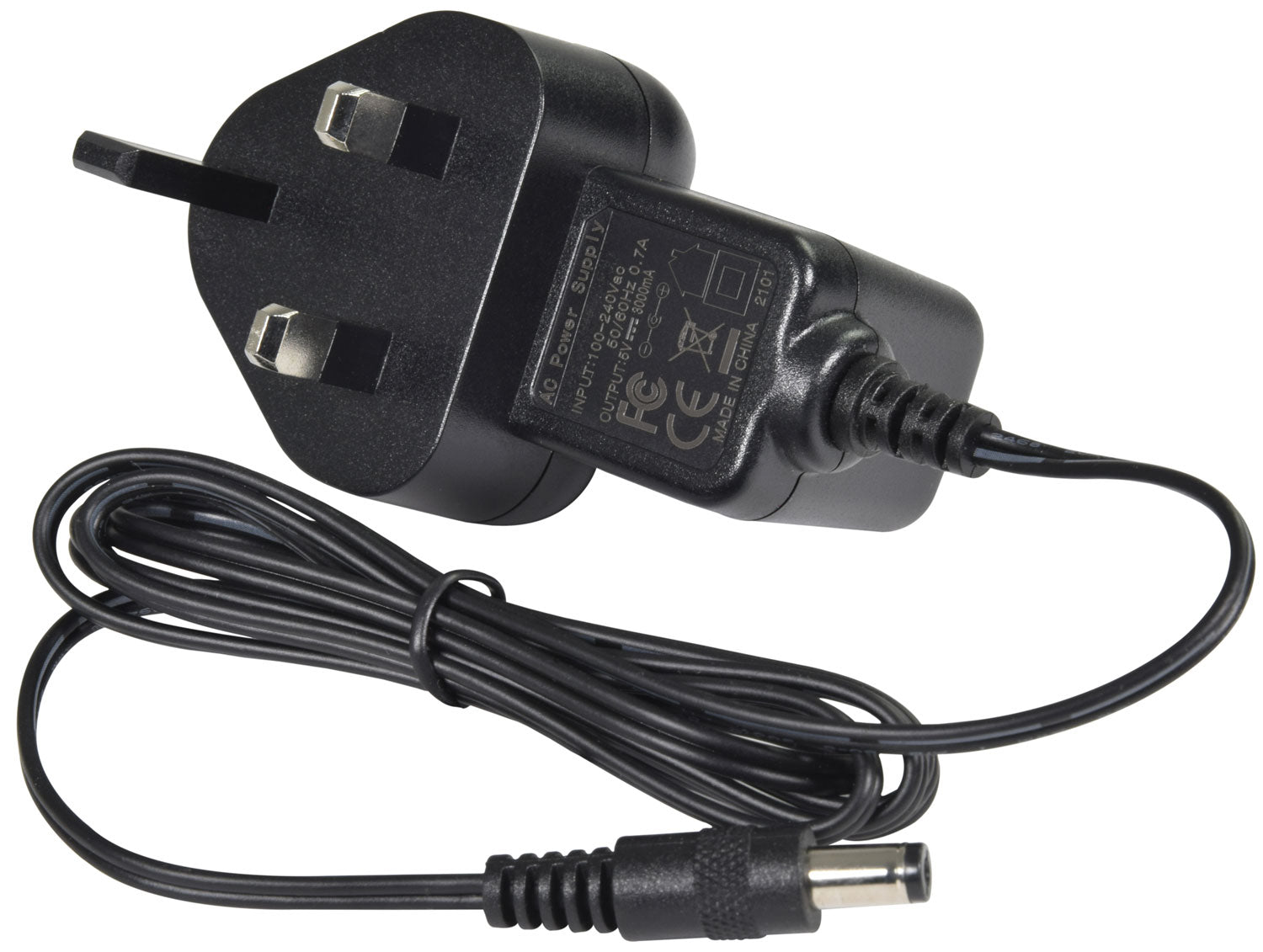

• Power Supply:Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/3A
• Max. Baud Rate:40Gbps
• Display Colours:8/10/12bit deep colour
• Video Resolution:Up to 7680 x 4320 @ 60Hz
• Input Connections:HDMI, RS232 Serial (online firmware updates only)
• Output Connections:8x HDMI, 3.5mm IR Extension Socket (not supplied)
• Max. Working Current:2.2A
• Transmission Distance:10m max 8K @ 60Hz
• Operating Temperature Range:-15°C to +55°C

Ideal Uses & Applications

This versatile HDMI splitter is ideal for a range of scenarios, including:

• Public presentations and exhibitions, where a single source needs to be displayed on multiple screens.
• Gaming setups, enabling enthusiasts to showcase gameplay on multiple televisions or monitors.
• Commercial environments such as bars and restaurants, where multiple displays are essential for showing different content simultaneously.
• Event venues that require seamless video distribution across various areas without compromising on quality.

Energy Efficiency & Cost Savings

As technology progresses, the occasional concern about energy consumption arises. The8K HDMI Splitteris designed to maximise efficiency without sacrificing performance. By leveraging cutting-edge technology, users can expect to save on energy costs while enjoying vibrant, high-res video and audio outputs. Switching to this advanced splitter can lead to reduced power usage, helping to lower electricity bills and promote environmental sustainability.
