Introduction to the HiLook DVR-204U-M1(E) and its key features

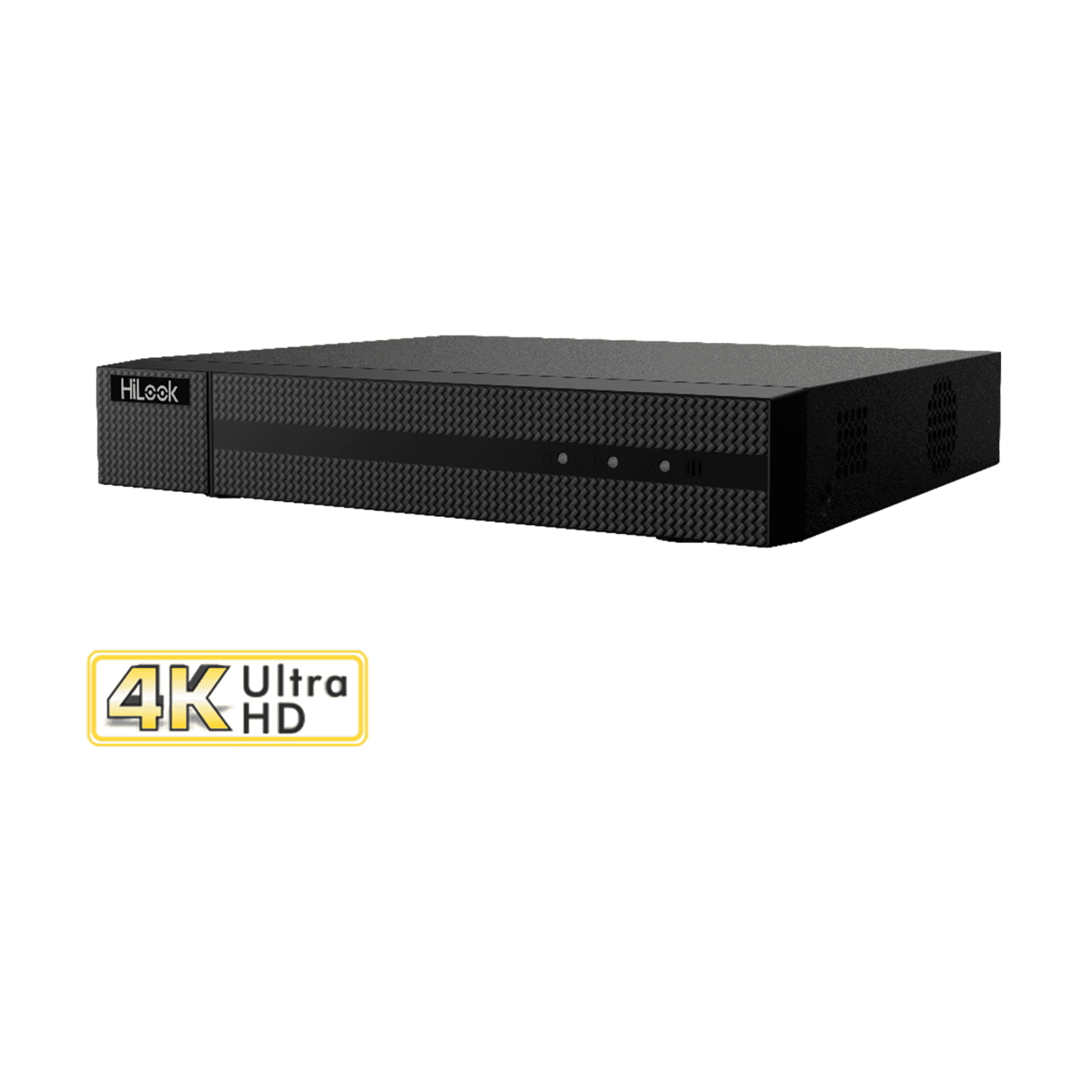

The HiLook DVR-204U-M1(E) is a compact 4-channel hybrid Turbo-HD DVR engineered for small retail outlets, offices, homes and light-commercial installations. Designed as an economical migration path from legacy analogue systems to higher-resolution CCTV, it supports up to 8 MP (4K) analogue capture while offering Enhanced IP camera compatibility for limited additional channels. Key selling points include efficient H.265 Pro+ compression, Deep-Learning Motion Detection 2.0 for smarter alerts and searches, one internal 3.5" SATA bay supporting up to 10 TB, and simultaneous HDMI and VGA video outputs for flexible monitoring setups.
Detailed specifications and benefits
The DVR packs a strong set of specifications for its class, balancing performance, storage efficiency and ease of integration. Below is a breakdown of important technical details and the practical benefits they bring.
- Video compression:H.265 Pro+/H.265 Pro/H.265 and legacy H.264+/H.264. Benefit: H.265 Pro+ significantly reduces storage and bandwidth needs compared with older codecs, which lowers ongoing costs for HDD storage and remote viewing over limited-bandwidth links.
- Supported resolutions:Up to 8 MP (4K) on analogue inputs, plus common intermediate resolutions down to CIF. Benefit: You can retain existing analogue cameras while upgrading to higher-resolution models in stages, capturing clearer detail where needed (for example facial recognition at entrances or license plates at parking exits).
- Video bitrate and bandwidth:32 Kbps–10 Mbps per channel, total bandwidth 96 Mbps. Benefit: Reasonable per-channel bitrate range for quality control and network planning; 96 Mbps total is ample for four high-resolution analogue channels plus a small number of IP streams in hybrid configurations.
- Analogue inputs:4 × BNC, supporting up to 8 MP analogue cameras. Benefit: Straight swap-in for most existing CCTV coax runs without the need to re-cable to Ethernet.
- IP video input:Standard: 2 channels (up to 6); Enhanced IP mode: up to 4 (up to 8 depending on mode). Benefit: Adds flexibility to mix analogue and IP cameras during phased upgrades or to add specialized IP cameras such as fisheye devices or advanced analytics models.
- Remote connections:Up to 32 concurrent remote connections and support for HiLookVision and Hik-Connect apps. Benefit: Multiple users can access live view and playback; mobile apps make remote monitoring straightforward for administrators and end users.
- ONVIF compatibility:Enables integration with many third-party cameras and management systems, easing integration into mixed-vendor environments.
- Internal bays:1 × 3.5" SATA supporting up to 10 TB. Benefit: Large single-disk capacity is sufficient for many small-site retention policies; a single drive keeps the chassis compact and cost-effective.
- USB:2 × USB 2.0 for backup, export or mouse control.
- Audio:1 × RCA input and 1 × RCA output with audio-over-coax support and two-way audio via the first input. Benefit: Enables basic audio monitoring and intercom-style two-way audio for entrances or reception desks without running extra audio cables when supported over coax.
- Simultaneous outputs:HDMI + VGA. Benefit: Use a modern monitor and a legacy display at the same time or separate operator and wall displays.
- Power:12 VDC, 1.5 A with typical consumption ≤ 15 W (without HDD). Benefit: Low power draw reduces operating costs and heat generation in small control or equipment cabinets.
- Operating temperature:−10 °C to +55 °C, making the unit suitable for normal indoor environments common to small businesses and homes.
Use cases and scenarios where the DVR excels
The HiLook DVR-204U-M1(E) is built for practicality and budget-conscious upgrades. Typical scenarios where it excels include:
Small shops often have existing analogue cameras and limited budgets. This DVR allows owners to keep working coaxial wiring while upgrading some cameras to higher resolution where detail matters, such as point-of-sale areas or entrances. H.265 Pro+ reduces the need for frequent drive upgrades while retaining long retention periods for incident review.
Offices that need basic perimeter and internal monitoring benefit from the DVR's compact form, HDMI/VGA outputs for local viewing, and mobile remote access for IT administrators or managers. Deep-Learning Motion Detection 2.0 helps cut down false alarms from plants, pets or lighting changes, delivering cleaner event lists for security staff.
For homeowners or landlords upgrading older systems, the HiLook DVR lets them preserve existing cameras and add a couple of IP cameras for gates or driveways. The single SATA bay with up to 10 TB supports multi-week retention at reasonable bitrates when H.265 Pro+ is used.
Installers doing phased upgrades will appreciate the hybrid inputs and ONVIF compatibility. The unit is compact and low-power, easing installations in meter cupboards or behind reception counters. It is especially useful where a single recorder serves a small suite of cameras without the expense of an enterprise NVR.
Comparisons with similar products on the market
In its segment, the HiLook DVR-204U-M1(E) competes with other compact 4-channel hybrid DVRs and entry-level NVRs. Key differentiators to consider when comparing models include codec efficiency, hybrid IP support, storage capacity and smart analytics.
- Codec efficiency:H.265 Pro+ gives this HiLook unit an edge over older H.264 and even some H.265-only models by delivering lower storage and bandwidth requirements for comparable image quality. If long retention on a single drive is a priority, H.265 Pro+ helps reduce future HDD upgrades.
- Hybrid vs pure IP:Pure IP NVRs are ideal for greenfield installs with new Ethernet wiring, offering more channels and higher scalability. The HiLook hybrid DVR is more cost-effective for brownfield (coax) sites and phased migrations where keeping existing cabling saves time and money.
- Analytics:Deep-Learning Motion Detection 2.0 provides better human/vehicle classification than basic motion detection available on many budget DVRs. This reduces false alarms and accelerates forensic searches, a practical benefit in real-world deployments.
- Storage and scalability:The single 3.5" SATA bay keeps the unit compact and affordable, but limits on-device redundancy and multi-disk capacity. Installers needing RAID, longer retention without high compression or more than 10 TB on-device will look to larger DVR/NVR platforms.
Customer feedback and reviews
There are no verified customer testimonials supplied with the product brief. Based on common feedback trends for similarly positioned hybrid HiLook devices, installers and end users typically praise the following:
- Value for money and straightforward setup for mixed analogue/IP installs.
- Noticeably reduced storage requirements when using H.265 Pro+ versus legacy codecs.
- Improved alarm relevance with Deep-Learning Motion Detection, saving time when reviewing events.
Potential areas of constructive feedback often include the single-disk limitation for users seeking higher redundancy, and the modest number of enhanced IP channels compared with dedicated NVRs. As always, check SKU details to confirm whether an HDD is pre-fitted or if the unit ships bare.
Conclusion: why the HiLook DVR-204U-M1(E) is a great choice
The HiLook DVR-204U-M1(E) is a pragmatic choice for small businesses, offices and homeowners who want to preserve existing coax infrastructure while stepping up to 4K-capable analogue capture and smarter, more efficient recording. Its balanced feature set — H.265 Pro+ compression, Deep-Learning Motion Detection 2.0, Hybrid Turbo-HD inputs, ONVIF compatibility and a single high-capacity SATA bay — makes it particularly attractive for retrofit projects and phased upgrades where cost, space and power consumption matter.
At a suggested retail price of approximately 184.99, the unit represents a cost-effective way to modernise surveillance systems without the expense of full re-cabling. It pairs especially well with mixed-site strategies where a few IP cameras complement existing analogue cameras, or where installers need a compact, reliable recorder for small deployments. Always verify exact SKU contents and compliance markings in the official datasheet before purchase, and consider an appropriately sized HDD based on your desired retention policy.
