Knightsbridge: CS2BC, 10AX 1G 2-Way Plate Switch, Brushed Chrome, Square Edge, Stainless Steel, IP20, 230V
About this product

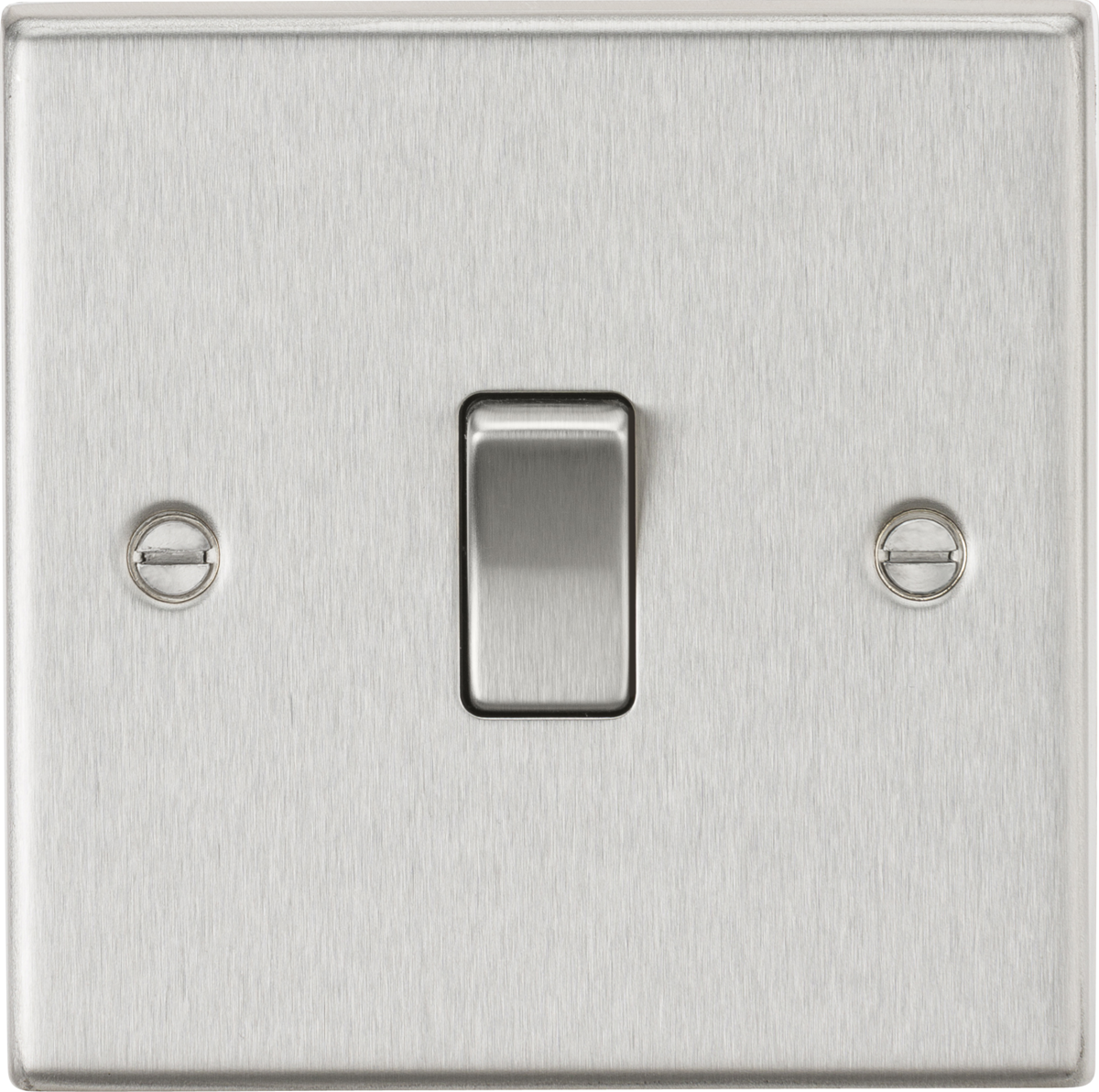

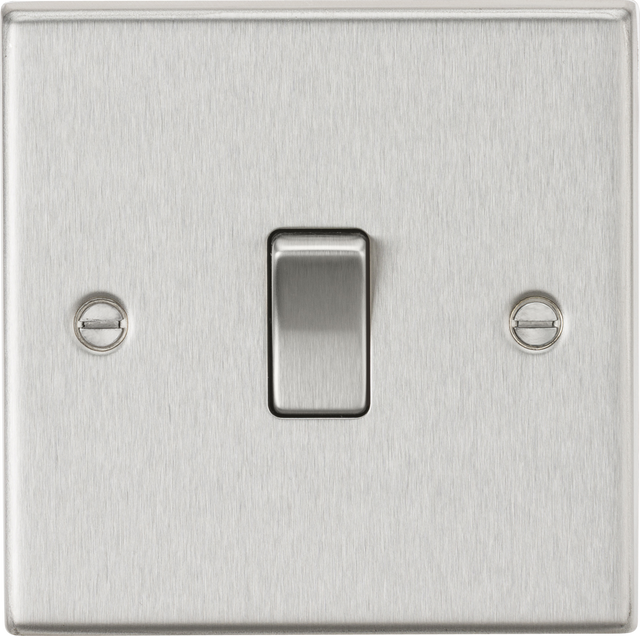

This 10AX 1G 2-way plate switch in brushed chrome is the perfect finishing touch for any modern home. Its square edge metal design with a matching metal rocker enhances the aesthetic appeal while providing functionality.
- 10AX Rated - Suitable for standard lighting control.
- 2-way functionality allows control from two entrances.
- Square edge design with built-in gasket for durability.
- Certified to EN 60669-1 standards for safety.
- Minimum mounting box requirement of 16mm.
Specifications
Dimensions
Wiring-accessories
Specifications
| Finish | Brushed Chrome |
|---|---|
| IP Rating | IP20 |
| Construction | 430 Stainless Steel |
| Primary Voltage | 230V 50Hz |

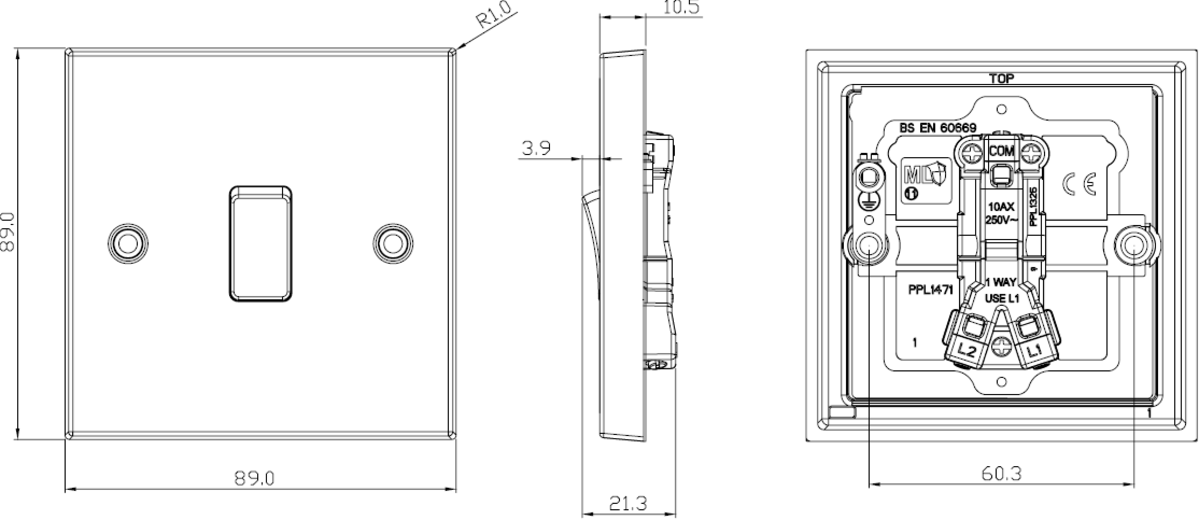

Dimensions
| Depth | 21.3 mm |
|---|---|
| Width | 89 mm |
| Height | 89 mm |
| Projection | 14.4 mm |
| Plate Depth | 10.5 mm |
| Min. Mounting Box Depth | 16mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Earth Terminal | Yes |
