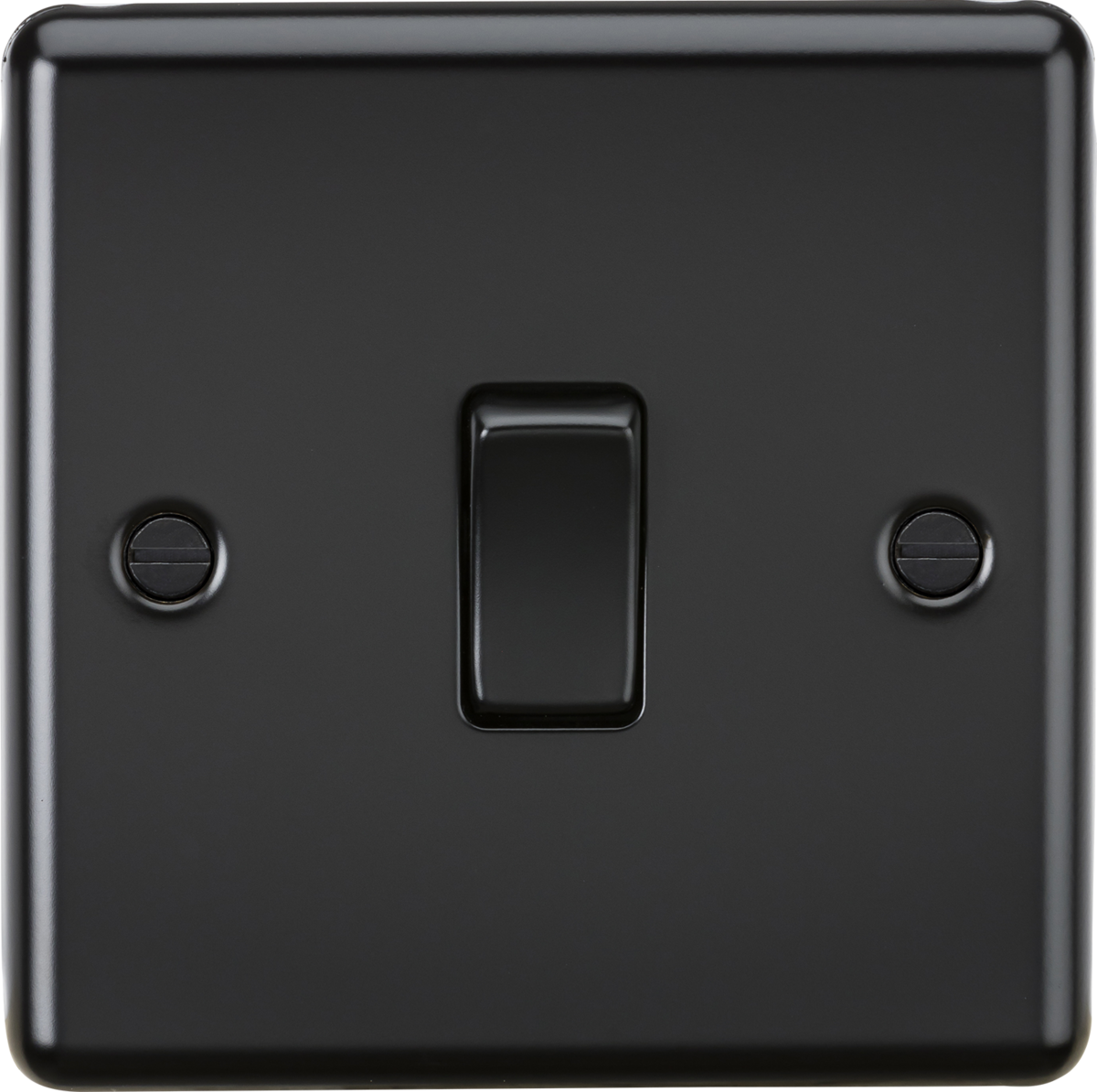

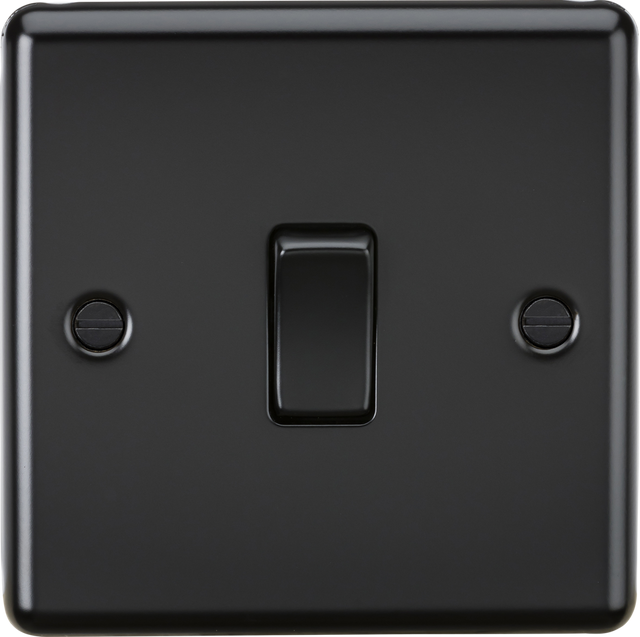

Knightsbridge: CL12MBB, Matt Black Intermediate Light Switch, 10AX, 1 Gang, IP20 Rated, 230V, Stainless Steel
About this product
The 10AX 1G Intermediate Switch in Matt Black is the perfect finishing touch for any modern home. Its rounded edge metal design, coupled with a matching metal rocker, not only enhances aesthetic appeal but also offers functionality:
- Rated at 10AX, suitable for various applications
- Designed for use with multiple switches to control one light, ideal for landings and staircases
- Rounded edge design with built-in gasket for added durability
- Requires a minimum mounting box depth of 16mm
With its IP20 rating, this switch is compliant for indoor use, ensuring safety and longevity in operation.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Matt Black |
IP Rating | IP20 |
Construction | 304 Stainless steel |
Primary Voltage | 230V 50Hz |

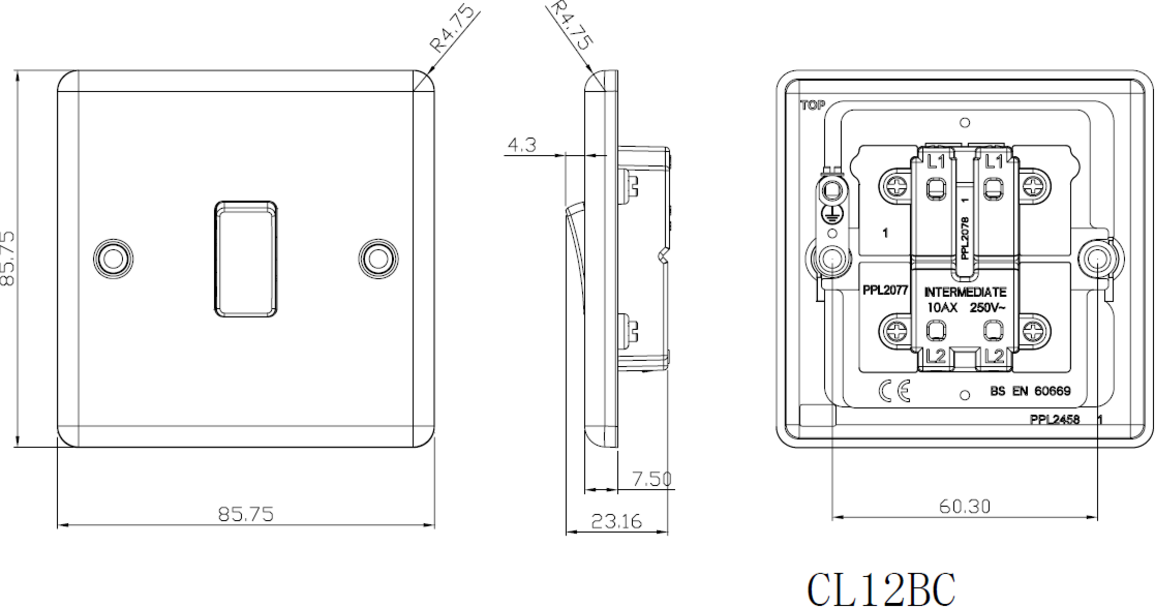

Dimensions
Depth | 23.16 mm |
---|---|
Width | 87.75 mm |
Height | 87.75 mm |
Projection | 11.8 mm |
Plate Depth | 7.5 mm |
Min. Mounting Box Depth | 16mm |
Wiring-accessories
Terminal | Screw |
---|---|
Earth Terminal | Yes |
Matt Black Intermediate Light Switch - 10AX features
