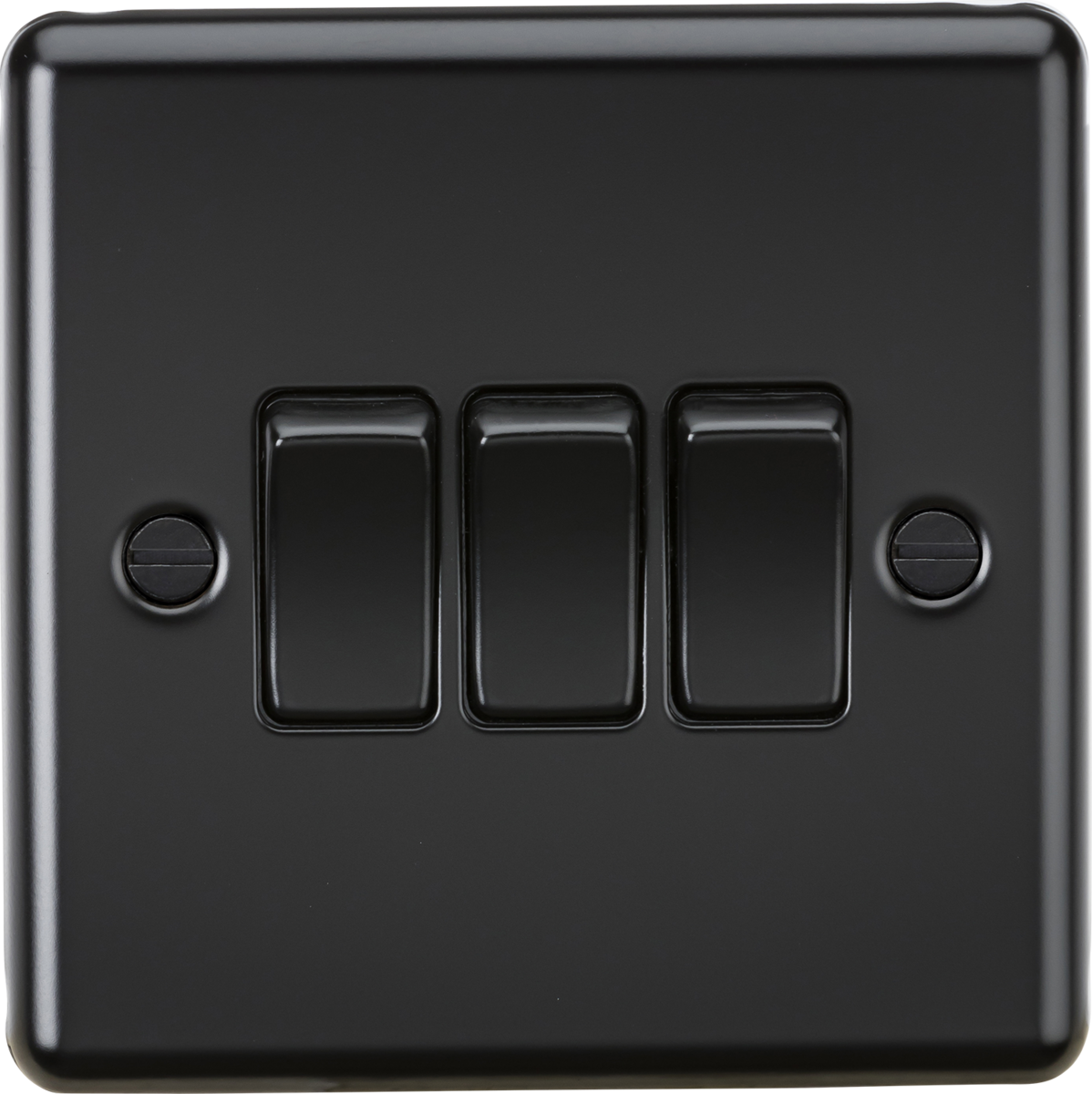

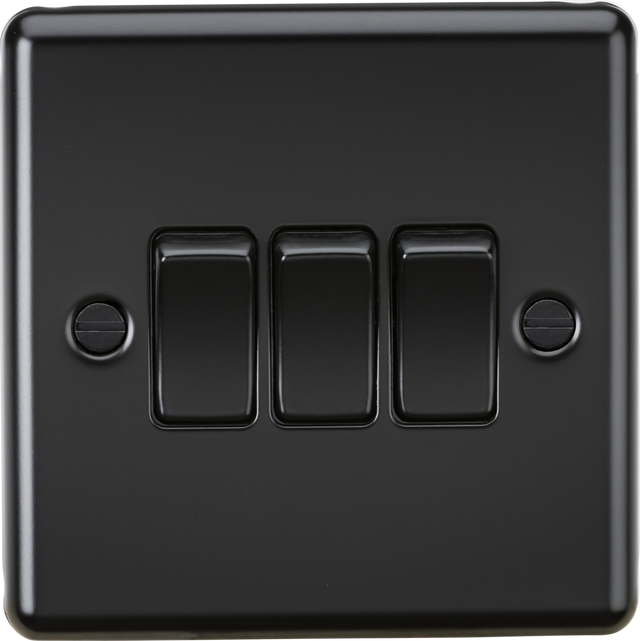

Knightsbridge: CL4MBB, 10AX 3G 2-Way Switch, Matt Black, Rounded Edge, IP20, 230V, EN 60669-1 Certified
About this product
Perfect finishing touch to any modern home, rounded edge metal design with matching metal rocker. 10AX 2-way switches are generally used when there are two entrances to a room, where there is a switch positioned at either entrance requiring joint control of the lighting.
- 10AX rated
- 2-way
- Rounded Edge design with built in gasket
- Certified to EN 60669-1
- Minimum mounting box 16mm
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Matt Black |
| IP Rating | IP20 |
| Construction | 304 Stainless steel |
| Primary Voltage | 230V 50Hz |

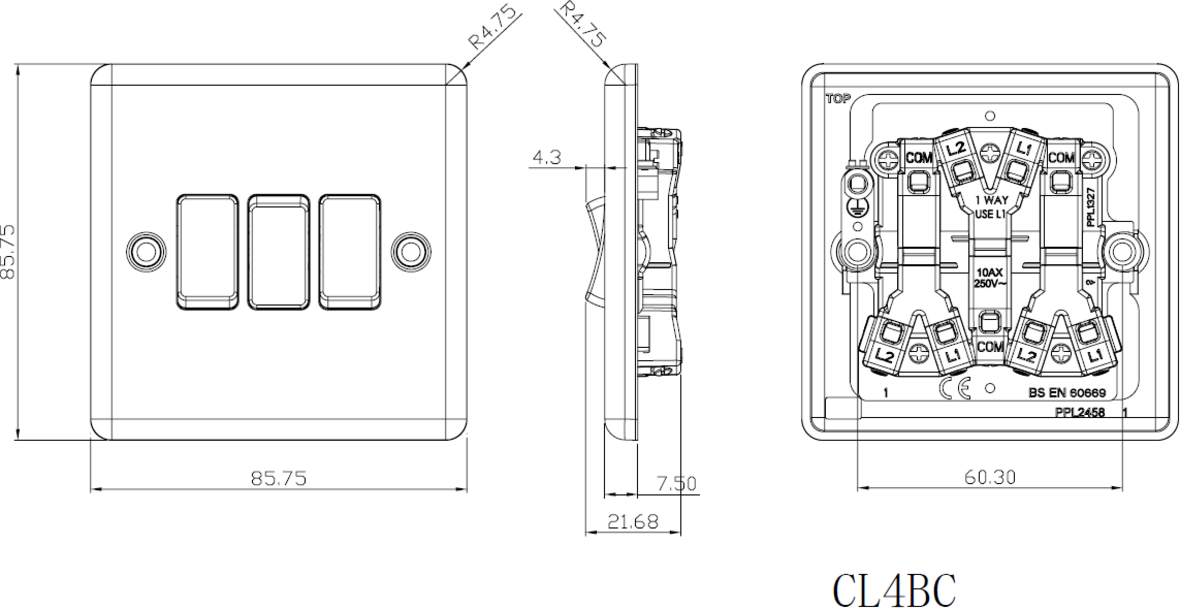

Dimensions
| Depth | 21.68 mm |
|---|---|
| Width | 87.75 mm |
| Height | 87.75 mm |
| Projection | 11.8 mm |
| Plate Depth | 7.5 mm |
| Min. Mounting Box Depth | 16mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Earth Terminal | Yes |
10AX 3G 2-Way Switch - Matt Black features
Knightsbridge: CL4MBB, 10AX 3G 2-Way Switch, Matt Black, Rounded Edge, IP20, 230V, EN 60669-1 Certified
