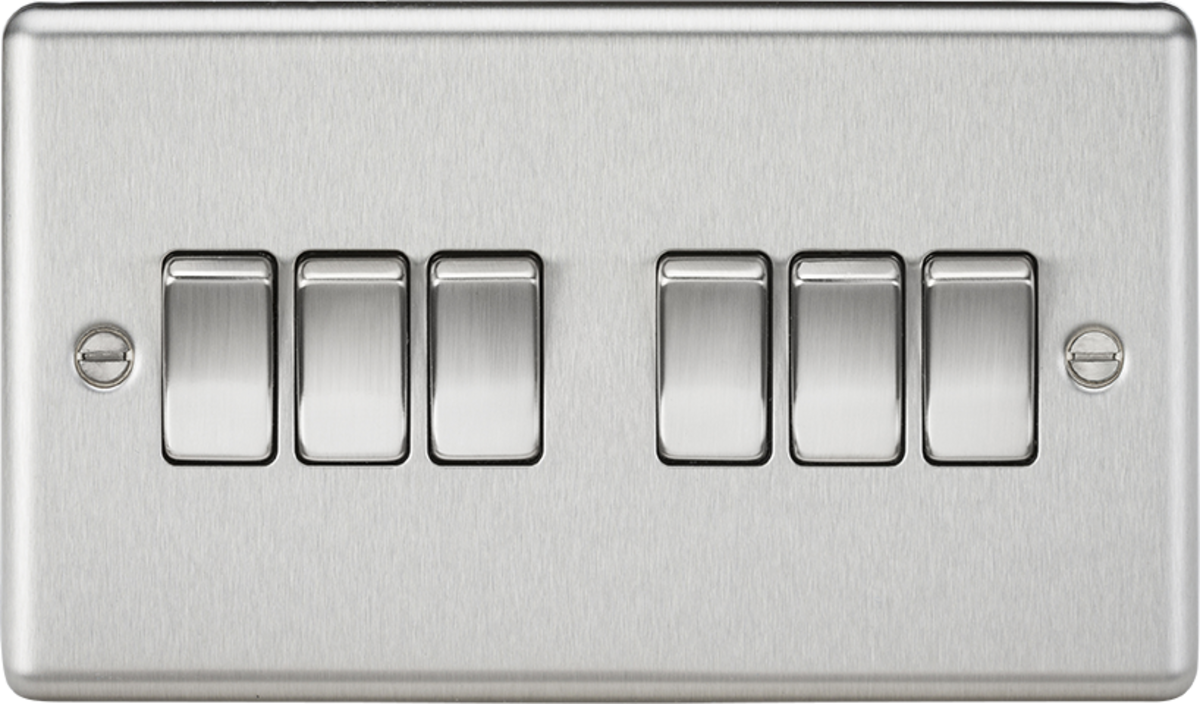

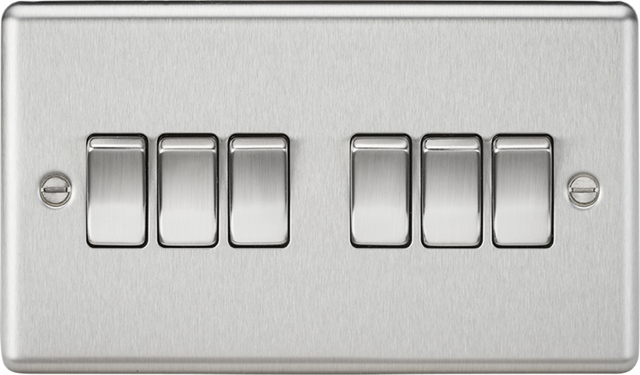

Knightsbridge: CL42BC, 10AX 6-Gang 2-Way Switch, Rounded Edge Design, Brushed Chrome Finish, IP20, 230V, 10A
About this product
The 10AX 6G 2-way Switch in Brushed Chrome is the perfect finishing touch to any modern home. Its rounded edge metal design, combined with a matching metal rocker, offers both style and functionality.
- Rated for 10AX
- 2-way switching capability - ideal for controlling lighting from two entrances
- Certified to EN 60669-1
- Minimal mounting box requirement of 16mm
Installation should adhere to UK safety standards. Suitable for both domestic and commercial use.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Brushed Chrome |
| IP Rating | IP20 |
| Construction | 304 Stainless steel |
| Primary Voltage | 230V 50Hz |

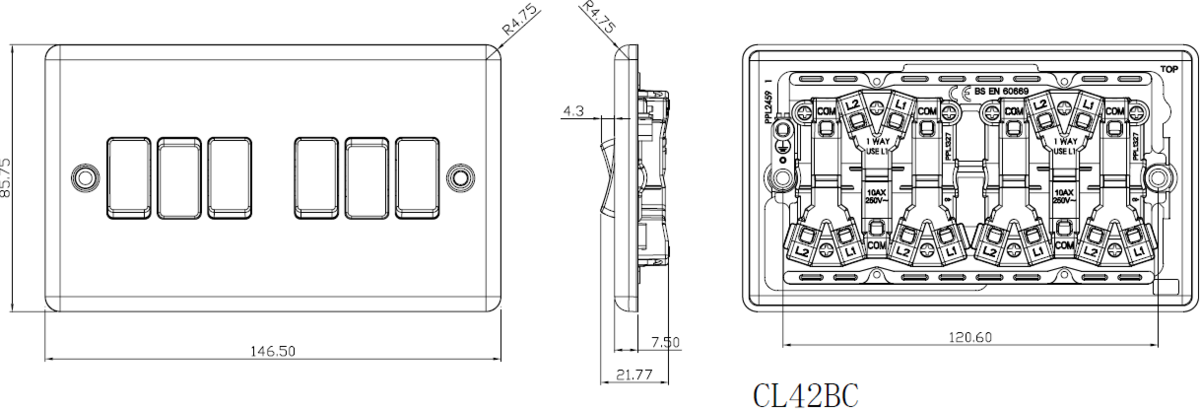

Dimensions
| Depth | 21.77 mm |
|---|---|
| Width | 146.5 mm |
| Height | 85.75 mm |
| Projection | 11.8 mm |
| Plate Depth | 7.5 mm |
| Min. Mounting Box Depth | 16mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Earth Terminal | Yes |
10AX 6G 2-Way Switch - Brushed Chrome features
Knightsbridge: CL42BC, 10AX 6-Gang 2-Way Switch, Rounded Edge Design, Brushed Chrome Finish, IP20, 230V, 10A
