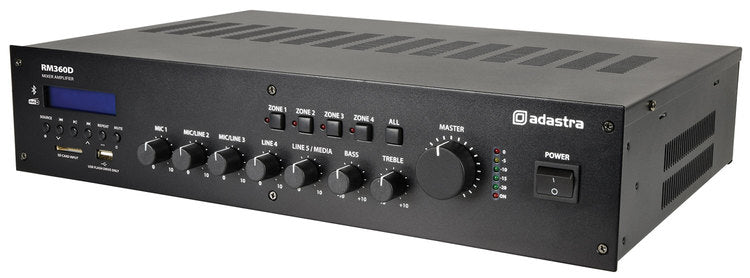

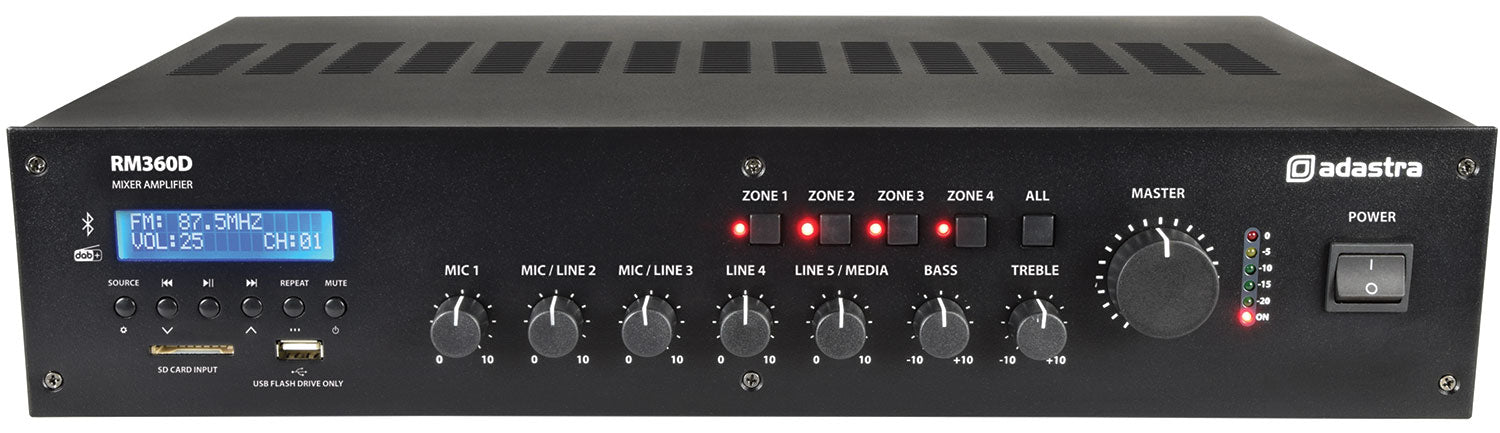

Adastra: 953.226UK, RM-series 100V Mixer-Amplifier, 360W, DAB+, Bluetooth, USB/SD, 19 Inch Rack-Mountable

Product Overview & Key Benefits

The RM-series 100V Mixer-Amplifier with DAB+, BT, USB/SD is an exceptional solution designed for commercial sound installations. This 5-channel mixer-amplifier is equipped to power 100V line speakers or standard speakers down to a 4 Ohm load. Its versatility is highlighted by numerous input options and the built-in DAB+/FM radio tuner, making it an ideal choice for those looking to enhance their audio experience in varied settings.

Perfect for commercial environments such as hotels, restaurants, and retail spaces, the RM-series provides not only state-of-the-art sound quality but also intuitive user controls, including Bluetooth connectivity and a comprehensive media player. The product features an automatic voiceover function, allowing seamless transitions between music and announcements, thereby ensuring audibility without interruptions.

Technical Specifications & Product Details

The RM-series Mixer-Amplifier boasts a range of impressive technical specifications:

• Power Output:360W RMS
• Total Harmonic Distortion (THD):<1.0%
• Fuse Rating:T5A

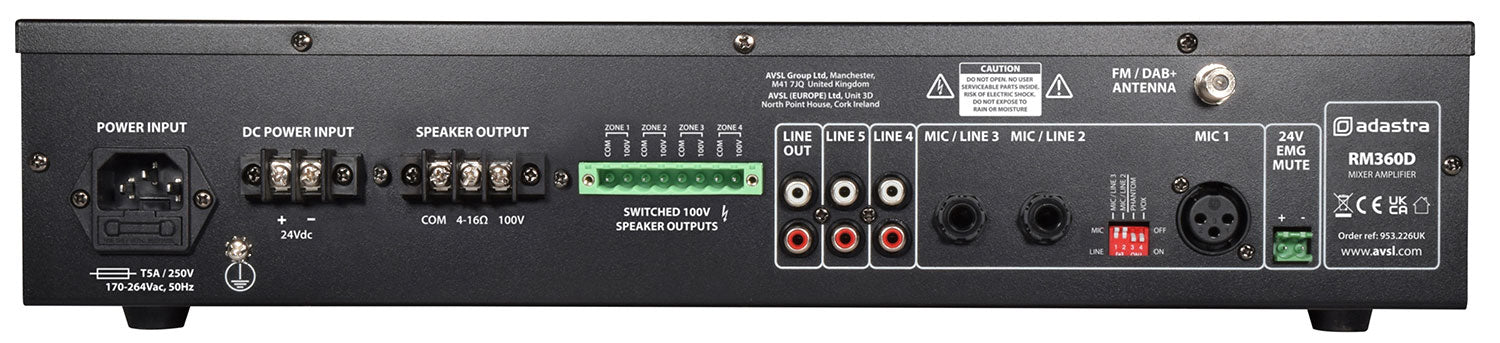

• Inputs:Mic XLR, 2 x mic/line jack, 2 x RCA line
• Dimensions:433 x 410 x 88mm
• Weight:9.14kg
• Speaker Outputs:4 switched + 1 non-switched (100V/4-16 Ohms/COM)
• Power Supply:170-264VAC, 50Hz (IEC) or 24VDC (screw terminals)
• Bluetooth Version:5.0
• Emergency Control:24V contacts - mute all except Mic.1 when triggered
• Equaliser (Bass):100Hz ±10dB
• Equaliser (Treble):10kHz ±10dB
• Input Sensitivity (Mic 1):-53dBV (balanced)
• Input Sensitivity (Line):-15dBV (-18.5dBV for line 5)
• Mic Phantom Power:+20V (switchable for Mic 1)
• Rear Panel Controls:Phantom, VOX, Mic/Line 2+3

Ideal Uses & Applications

This versatile Mixer-Amplifier finds its application across a variety of settings:

• Hospitality Venues:Perfect for hotels, restaurants, and bars where background music and announcements are essential.
• Retail Spaces:Enhances in-store customer experience by providing sound that draws attention to promotions.
• Office Environments:Ideal for conference rooms and common areas to manage announcements and ambient music.
• Public Spaces:Suitable for community centres, schools, and facilities that require clear audio for events.
• DIY Installations:Tailored for home theatres or multi-room audio solutions, providing professional-grade sound quality.

Energy Efficiency & Cost Savings

Choosing the RM-series 100V Mixer-Amplifier is not only an investment in sound quality but also in energy efficiency. With its ability to handle 24V DC power, and efficient RMS power output, this unit is designed to reduce energy consumption potentially saving users a noticeable amount on their electricity bills. By integrating digital radio and Bluetooth functionalities, users can enjoy streaming their favourite audio without the need for additional equipment, further promoting energy savings.

With its robust features and enhancements for sound control, the RM-series shines in environments needing reliable audio solutions while ensuring energy-efficient operation. This makes it not just a cost-effective option for businesses but also a sustainable choice contributing positively to environmental conservation.
