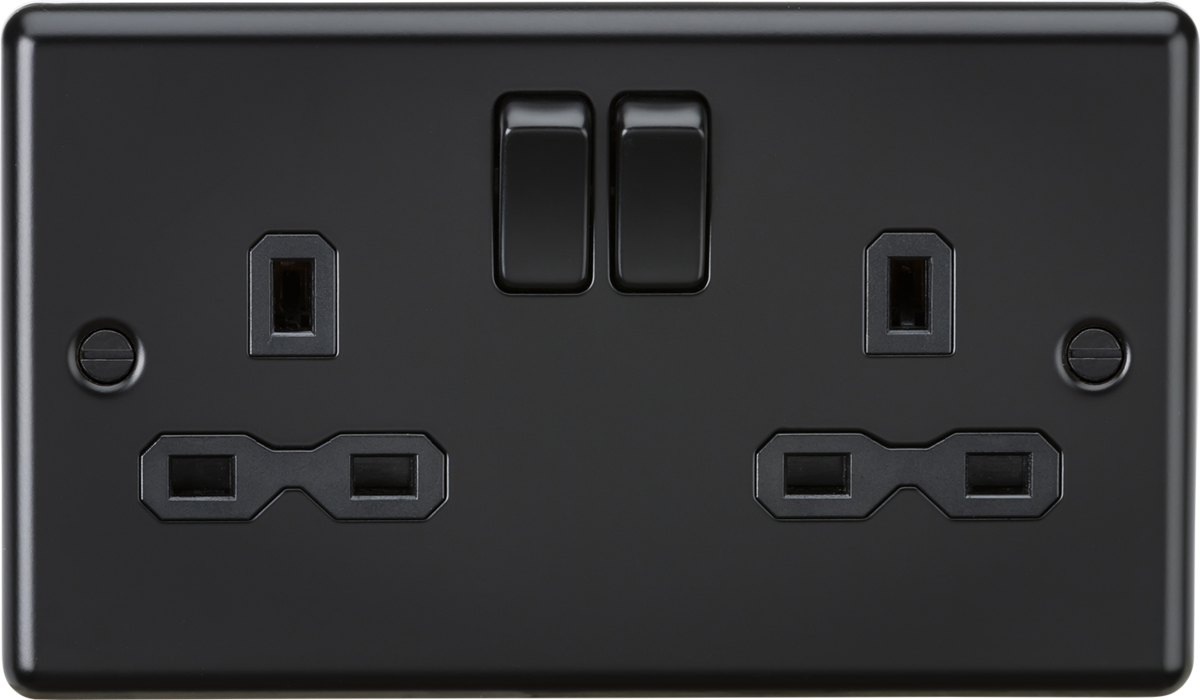

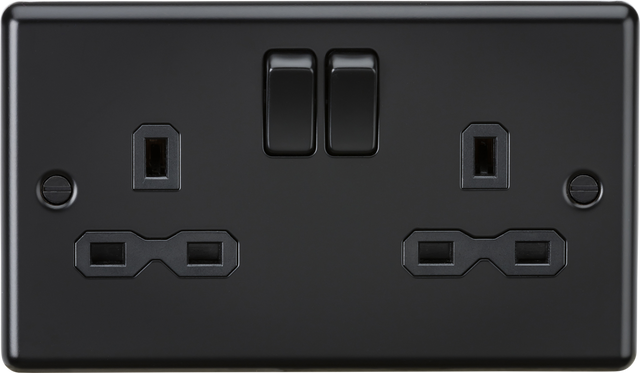

13A Double Pole Switched Socket - Matt Black
The 13A 2G DP Switched Socket is designed to provide both functionality and style. This socket features a contemporary rounded edge metal design with matching metal rockers. It is equipped with:
- 13A 2G Switched Socket
- Double Pole Switches
- Fitted with twin earth terminals
- Rounded Edge design with built-in gasket
- Compliant with BS 1363:2 standards
- Minimum mounting box depth of 25mm
Ideal for both DIY enthusiasts and professional contractors, the stylish matt black finish complements modern interiors.
Specifications
I
Matt Black
IP20
304 Stainless steel
230V 50Hz

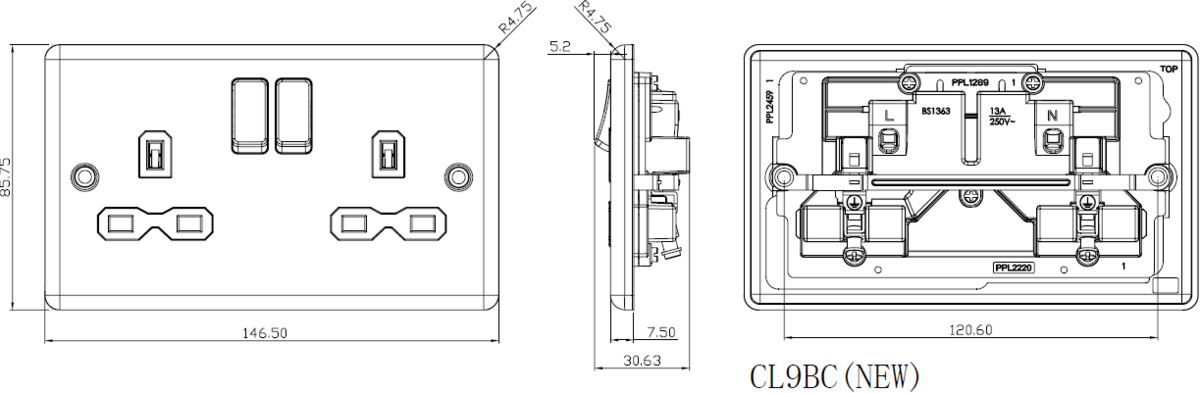

Dimensions
30.63 mm
146.5 mm
85.75 mm
12.7 mm
7.5 mm
25mm
Wiring-accessories
Screw
Specifications
Class | I |
---|---|
Finish | Matt Black |
IP Rating | IP20 |
Construction | 304 Stainless steel |
Primary Voltage | 230V 50Hz |
Dimensions
Depth | 30.63 mm |
---|---|
Width | 146.5 mm |
Height | 85.75 mm |
Projection | 12.7 mm |
Plate Depth | 7.5 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Terminal | Screw |
---|
13A Double Pole Switched Socket - Matt Black features

13A Double Pole Switched Socket, 2 Gang, Matt Black, Rounded Edges, 230V, BS 1363:2 Certified, CL9MBB
