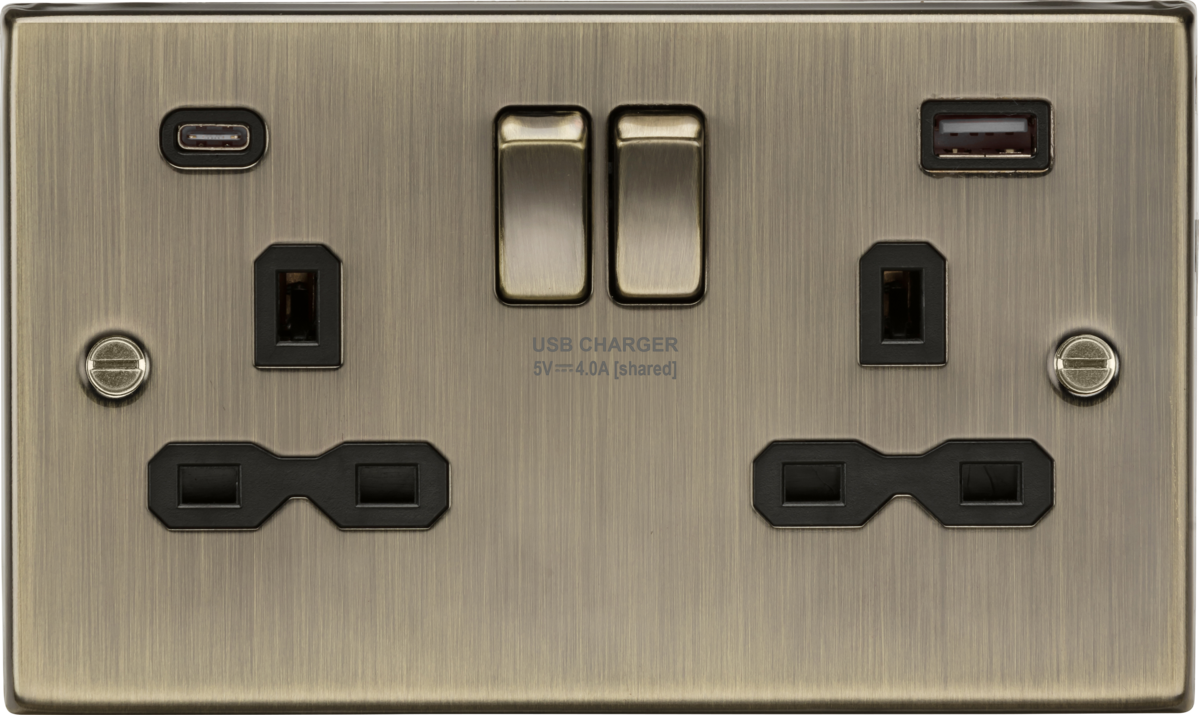

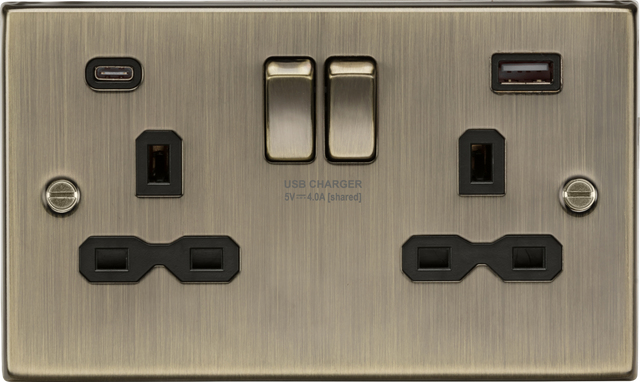

13A Switched Socket with Dual USB A+C
The 13A 2G Switched Socket with Dual USB A+C is a perfect addition to any modern home. Its decorative square edge metal design with matching metal rockers seamlessly blend functionality and aesthetics.
- Dual USB A+C 5V DC 4.0A shared (Max. 20W)
- Minimum mounting box depth of 25-35mm is required
- Constructed from durable 430 stainless steel
- IP20 rated for indoor use
- Class I device, requires earthed connection
We recommend always using certified USB cables for safety and compatibility. Complies with CE and UKCA standards.
Specifications
I
Antique Brass
IP20
430 Stainless Steel
230V 50Hz

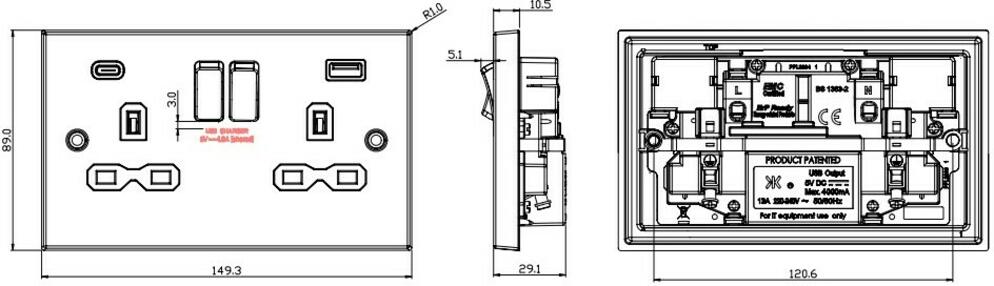

Dimensions
29.1 mm
149.3 mm
89 mm
15.6 mm
10.5 mm
13.5 mm
25mm
Wiring-accessories
Yes
Specifications
Class | I |
---|---|
Finish | Antique Brass |
IP Rating | IP20 |
Construction | 430 Stainless Steel |
Primary Voltage | 230V 50Hz |
Dimensions
Depth | 29.1 mm |
---|---|
Width | 149.3 mm |
Height | 89 mm |
Projection | 15.6 mm |
Plate Depth | 10.5 mm |
Recessed Depth | 13.5 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Earth Terminal | Yes |
---|
13A Switched Socket with Dual USB A+C features

13A 2G Switched Socket with Dual USB A+C, Antique Brass Finish, 20W Max Power, CS9940AB
