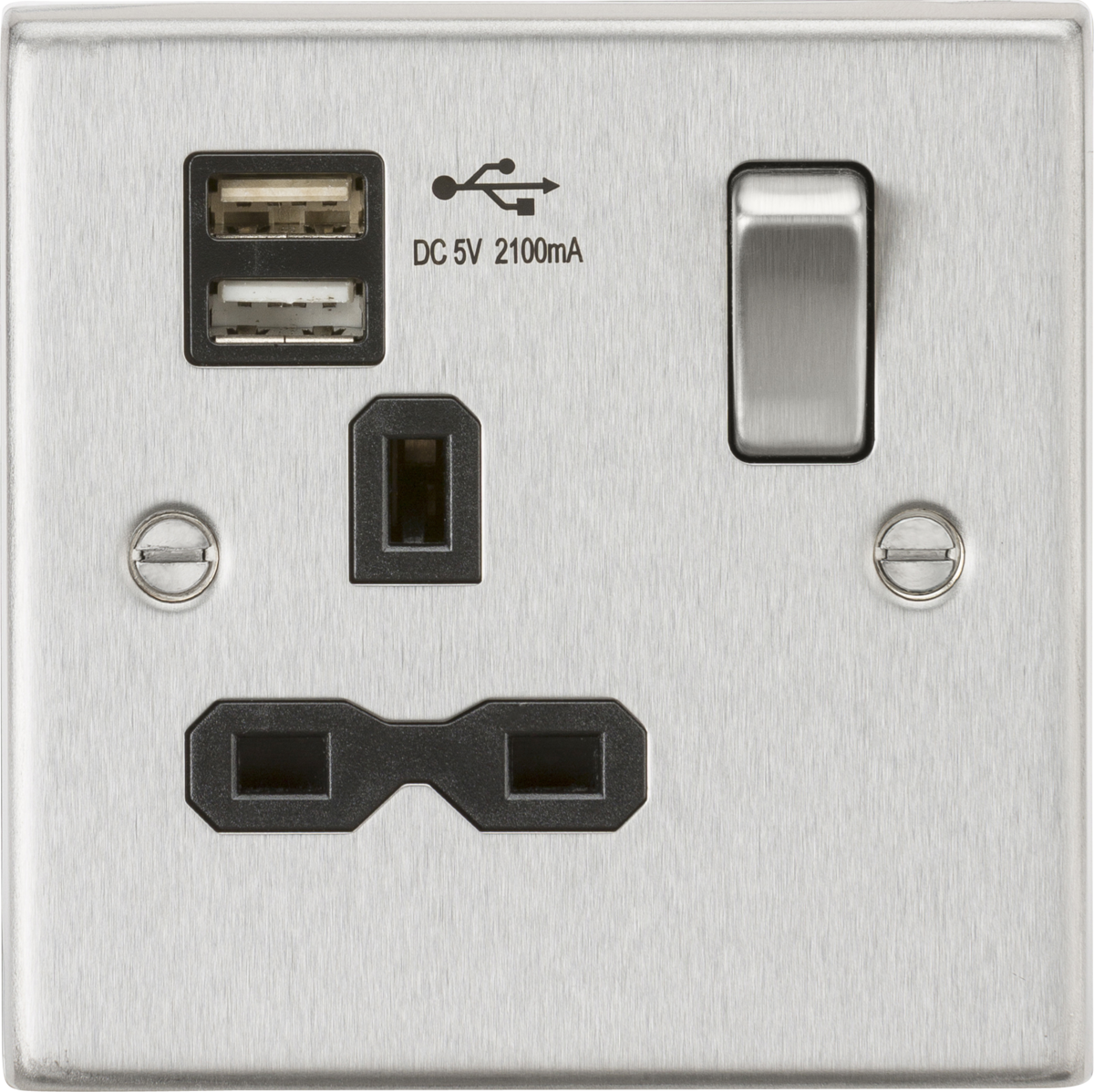

Square Edge Dual USB Socket
This charger socket is a great finishing touch to any modern home. Decorative square edge metal design with matching metal rockers.
- 13A Switched socket
- Dual USB Charging 5V DC 2.1A (shared)
- Decorative square edge design with built in gasket
- Certified to BS1363-2, EMC Certified and ErP Ready
- Minimum mounting box depth 25-35mm*
*Dependent on wiring conditions. WE RECOMMEND YOU ALWAYS USE CERTIFIED USB CABLES FOR SAFETY AND TO ENSURE COMPATIBILITY.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Brushed Chrome |
IP Rating | IP20 |
Construction | 430 Stainless Steel |
Primary Voltage | 230V 50Hz |

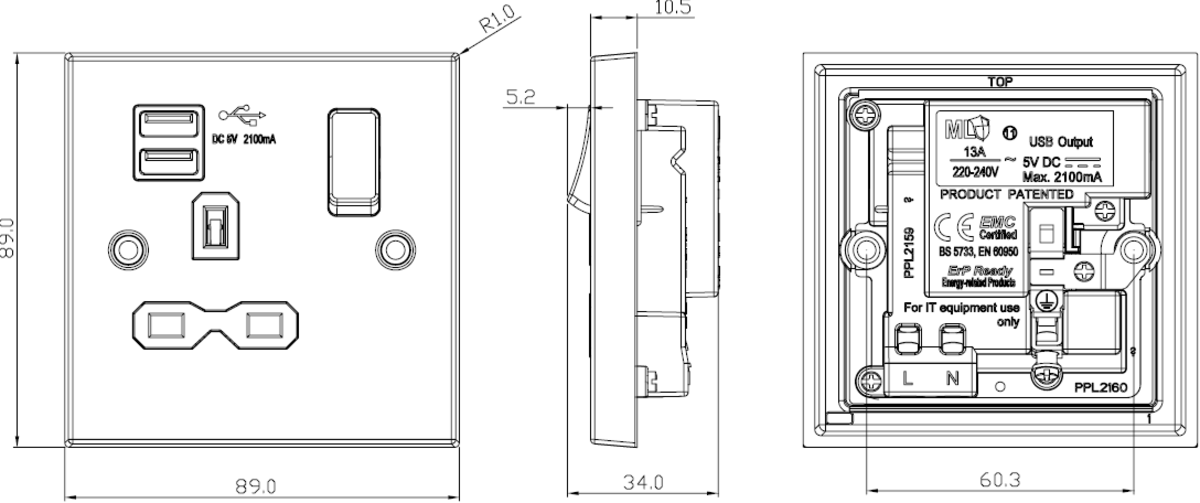

Dimensions
Depth | 34 mm |
---|---|
Width | 89 mm |
Height | 89 mm |
Projection | 15.7 mm |
Plate Depth | 10.5 mm |
Recessed Depth | 18.3 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Earth Terminal | Yes |
---|
Square Edge Dual USB Socket features

13A Switched Socket with Dual USB A+A, Brushed Chrome Square Edge Design, 230V, 2.1A Shared, CS91BC
