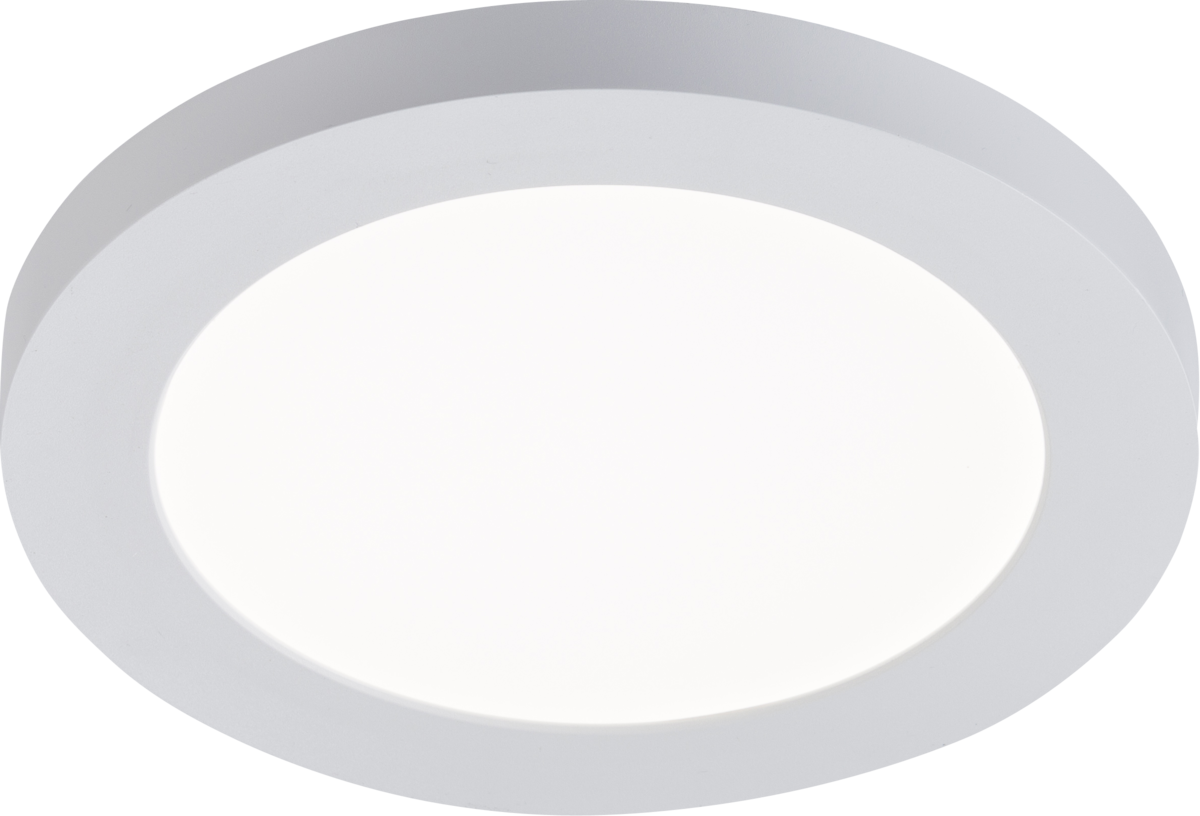

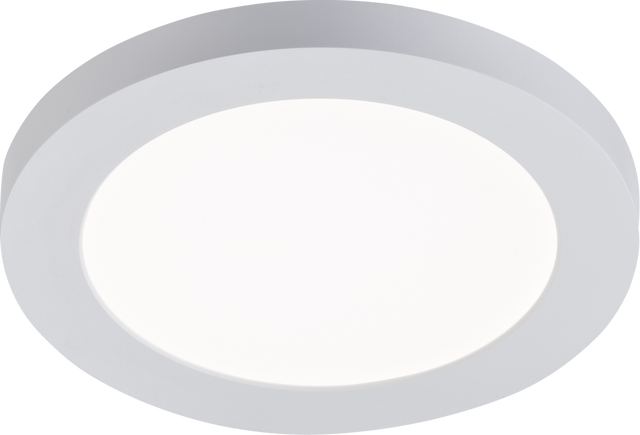

Knightsbridge: CPL12CT, 230V 12W Adjustable Circular LED Panel, IP20, 165mm, Dual Mounting
About this product
The 230V 12W CCT Adjustable Circular Dual Mounting LED Panel is the most versatile luminaire for various settings.
- Dual surface and recessed fixing options.
- Adjustable recessed brackets suitable for cut outs from 55mm to 125mm.
- Integrated driver with low flicker technology.
- Optional magnetic bezels are available.
- Diameter: 165mm.
Ideal for domestic, commercial, and retail areas, it provides a clean and modern look while offering innovative CCT switching to select your preferred temperature (3000K, 4000K, 6000K).
Specifications
Dimensions
Lamp
Luminaire
Photometric
Specifications
| Class | II |
|---|---|
| Finish | White |
| IP Rating | IP20 |
| Cable Length | 0.3 m |
| Construction | Polycarbonate |
| Primary Voltage | 230V 50Hz |

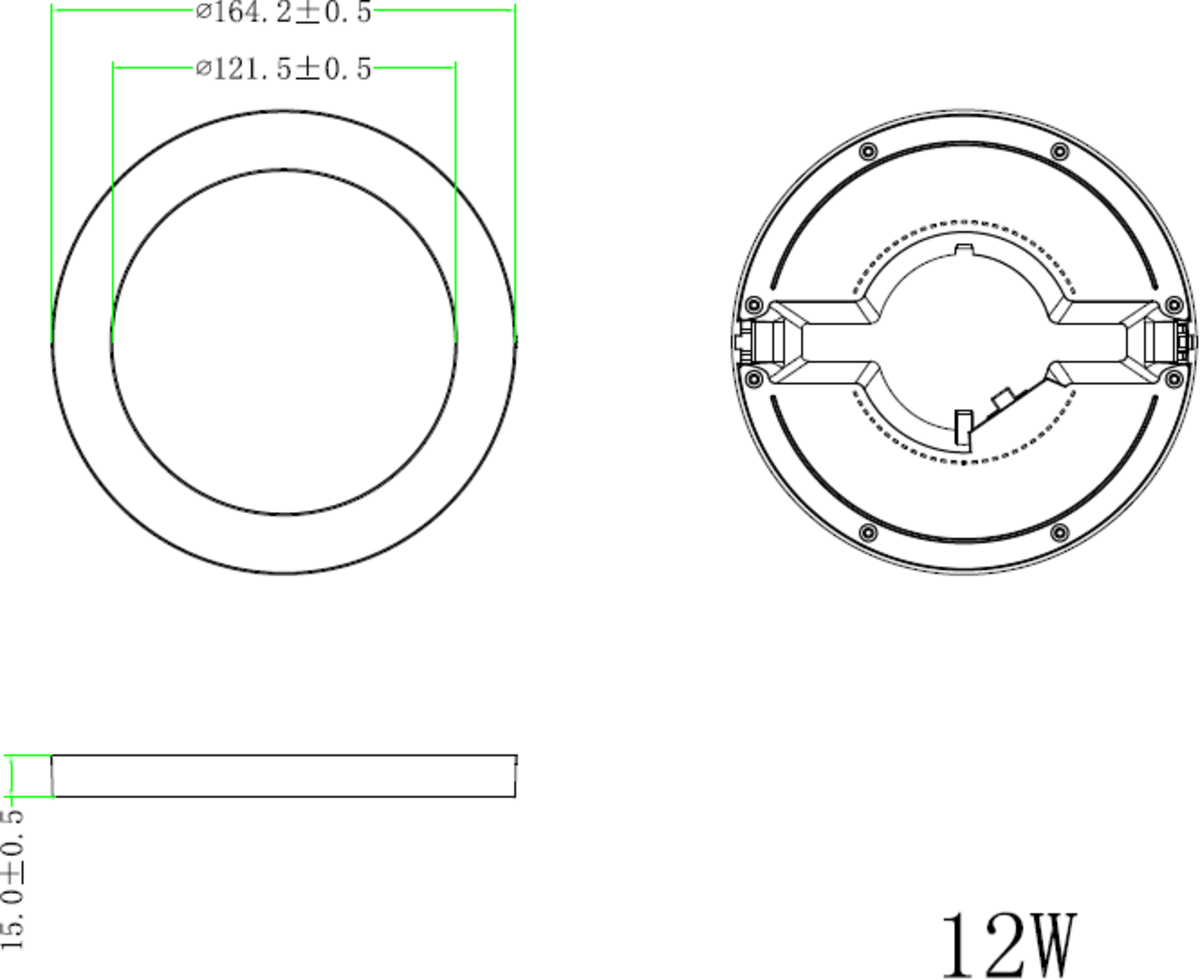

Dimensions
| Height | 15 mm |
|---|---|
| Diameter | 165 mm |
| Projection | 15 mm |
| Minimum Void | 50 mm |
| Recessed Depth | 0 mm |
| Cut-out Diameter | 55 mm |
Lamp
| L70B50 | 30,000 |
|---|---|
| Dimmable | No |
| Beam Angle | 120 |
| Lamp Included | Yes |
| Lamp Technology | SMD LED |
| Energy Rating (Class) post 2021 SLR | E |
Luminaire
| Diffuser | Opal |
|---|
Photometric
| CCT | 3000/4000/6000 K |
|---|---|
| CRI | >85 |
| Lumens | 850/940/920 lm |
| Wattage | 12 |
| Light Colour | CCT |
| Efficacy (Light source) | 130 lm/W |
| Lumens (Light source only) | 1545 lm |
CCT Adjustable Circular Dual Mounting LED Panel features
