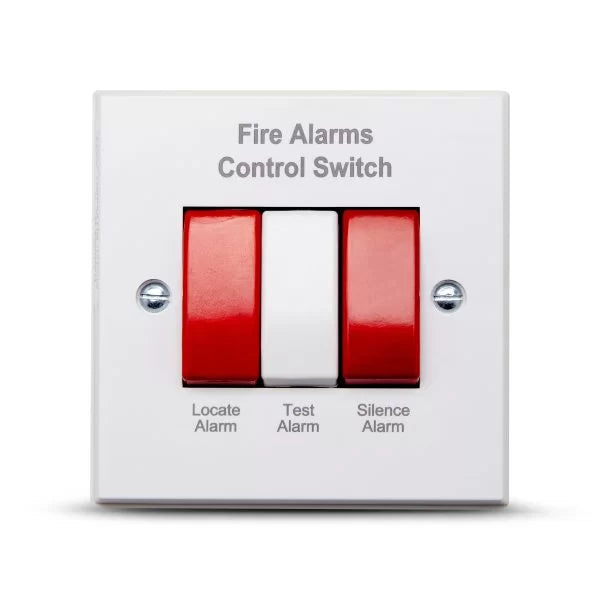

Aico Ei1529RC Hard Wired Alarm Control Switch – Test, Locate, Silence for Aico Systems – SKU: Ei1529RC

The Aico Ei1529RC Alarm Control Switch (SKU: Ei1529RC) is a mains-powered, hard-wired control unit designed to enhance the functionality and usability of interconnected Aico fire and carbon monoxide alarm systems. Ideal for residential and landlord installations, the Ei1529RC provides centralised control to Test, Locate, and Silence alarms within a wired network.

Compatible with the Aico 3000 Series, Ei2110e Multi-Sensor, and the 160e and 140e Series of smoke and heat alarms—as well as hard-wired CO alarms—the Ei1529RC is a must-have accessory for ensuring intuitive and efficient alarm management in multi-device systems.

Key Features:

• Brand: Aico

• Model SKU: Ei1529RC

• Power Source: Mains powered (230V AC)

• Interconnection: Hard-wired – connects via 3-core cable (Live, Neutral, Interconnect)

• Control Functions:

  • Test – Trigger all alarms in the system

  • Locate – Identify which alarm has activated

  • Silence (Hush) – Mute nuisance or non-emergency alarms

• Compatible With:

  • Aico 3000 Series alarms

  • Ei2110e Multi-Sensor Fire Alarm

  • 160e Series alarms

  • 140e Series alarms

  • Ei261ENRC Carbon Monoxide alarms

• Mounting: Wall-mounted with surface box (supplied) or standard recessed box (not supplied)

• Maximum Configuration: Supports up to 4 Ei1529RC switches per system, and 16 interconnected alarms

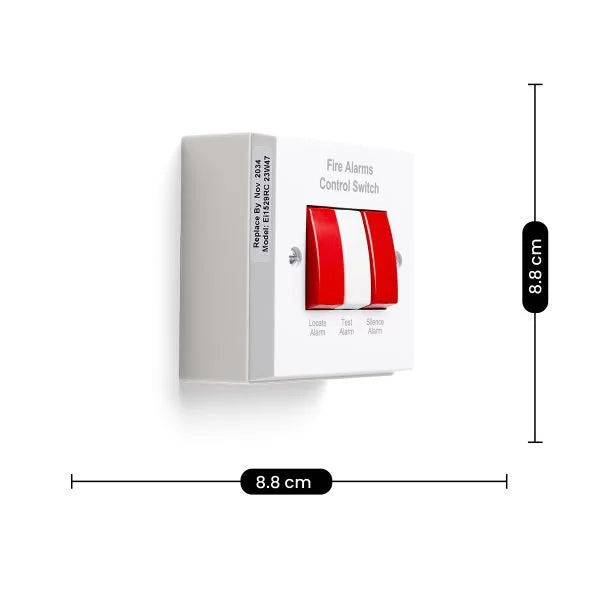

• Dimensions: 90mm x 90mm x 40mm

• Weight: 240g (packaged)

• Manufactured: In Ireland

• Approvals:

  • CE certified

  • EMC Directive: EN61000-6-1:2007 & EN61000-6-2:2005

  • Low Voltage Directive: EN60065:2001 + A12:2011

• Warranty: 5 years

Centralised Alarm Control for Safer, Smarter Systems

The Ei1529RC is designed to offer a user-friendly interface for any interconnected Aico alarm system. In multi-alarm homes or buildings, especially those combining Smoke, Heat, and CO detection, it is essential to know which type of danger is present—and respond quickly.

Installed at a central or convenient location, the switch lets users:

• Test the entire alarm system without needing to access each unit individually

• Identify the exact alarm that was triggered, using the Locate function

• Silence nuisance alarms (e.g. from steam or cooking fumes) quickly using the Hush function

This not only enhances safety response times but also reduces frustration and maintenance complexity—ideal for homes with multiple floors, vulnerable residents, or landlords managing compliance.

Use Case Example: Full Control in a Multi-Room Property

In a modern 3-bedroom property, the homeowner installs Aico 160e alarms in each bedroom, an Ei2110e multi-sensor in the hallway, and a CO alarm near the boiler. When an alarm triggers, the resident doesn't need to guess whether it's a fire or CO alert. They simply go to the Ei1529RC switch in the hallway, see which type of alarm is active, and press Locateto isolate the source. If it’s a false alarm, Silence deactivates it without needing to climb or physically reset the alarm unit.

This ensures fast, informed decisions during potential emergencies and simplifies regular system testing—which is crucial for both homeowner confidence and legal compliance in rented accommodations.

Installation and Configuration

The Ei1529RC is easily installed using standard 3-core alarm cable (Live, Neutral, Interconnect) and can be mounted using the supplied surface box or a standard recessed back box. It supports up to 4 control switches per system, making it ideal for larger or multi-entrance buildings.

Aico’s reputation for high-quality manufacturing and compliance with EU safety directives ensures long-term reliability and safe performance.

The Aico Ei1529RC Hard Wired Alarm Control Switch (SKU: Ei1529RC) is the ideal solution for anyone looking to simplify alarm system management, improve response times, and enhance safety for occupants. With its smart Test, Locate, and Silence functions and broad compatibility across Aico's leading alarm ranges, it’s a valuable addition to any hard-wired fire and CO safety setup.
