C-TEC CFP702-2 fire alarm panel, Flush, Surface Mount

Free Delivery
£ 167 53
(Incl. VAT) RRP: £201.04
Save £33.51

About this product

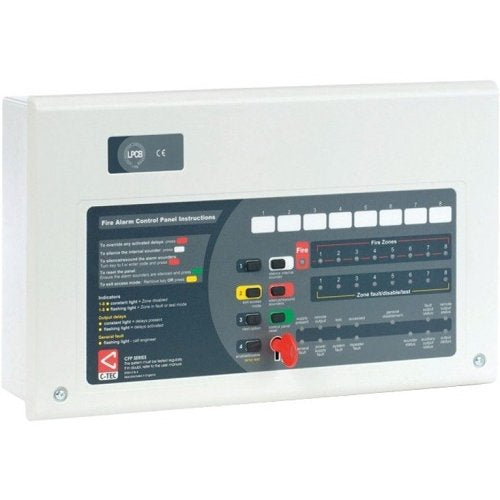

C-TEC CFP702-2 is a fire alarm panel.

LPCB certified to EN54-2/4, C-TEC's CFP two-wire 2 zone AlarmSense fire panel is designed to work with Apollo's AlarmSense range of detectors, call points, sounders and visual indicators. Most conventional fire systems work with two pairs of wires per zone: one pair for detection devices; the other for alarm devices. By using different voltage bands for quiescent and alarm states, AlarmSense components can be connected to the same pair of supply wires.

This reliable technology takes all of the complexity out of fire system design, leading to quicker, more flexible installation and around a 20-25% reduction of labour over a standard four wire system. The CFP702-2 includes two AlarmSense zones, four conventional sounder circuits, class change & alert inputs and on-board fire & fault relays. A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone facilities.

Key features

  • LPCB certified to EN54 parts 2 and 4
  • Intuitive user-friendly interface with colour-coded buttons and combined keypad/keyswitch entry to access level 2
  • 2, 4 or 8 AlarmSense zone circuits (dependent on model purchased)
  • Four conventional sounder circuits
  • Integral 1.5A EN54-4/A2 compliant switch mode PSU
  • Wide range of engineering functions including zone test, coincidence, zone delay and non- latching zones
  • Two on-board relays (Fire and Fault)
  • Two open-collector outputs (Remote and Reset)
  • ‘Class change’ and alert inputs

If you are matching this to an existing installation, work from the CFP702-2 part number rather than the description.

£ 167 53
RRP: £201.04 Save £33.51
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£167.53 Incl. VAT £201.04
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
C-TEC
Manufacturer Part Number
CFP702-2
Product Type
Fire Alarm Control Panel
Technical information
Connectivity Technology
Wired
Maximum Operating Range
500.00m
Number of Relays Supported
2
Number of Standard Zones
2
Panel Control Type
Conventional
Battery information
Battery Voltage
12.00V
Certifications
Certifications & Standards
CE, EN54-2/4 by the LPCB (0832-CPR-F0386), LPCB
Physical characteristics
Depth
96.00mm
Height
235.00mm
Weight
1.75kg
Width
380.00mm
Power description
Input Voltage
20-27V
Product information
Mount Type
Flush Mount, Surface Mount
Miscellaneous
Additional Information
Mains rated current 350 mA maximum. Internal power supply 19V-28.5V (27V nominal). Ripple 7V maximum (battery fault). Total output current limited to 1.5A @ 230V AC (ImaxA eq 146 mA). Quiescent current 25 mA (mains failed, internal sounder
Compatibility
Detection Devices and Alarm Devices
Environmental certification
EN 54-2/4
Attributes
Compatibility
Detection Devices and Alarm Devices
Input Voltage
20-27V
Weight
1.75kg

Specifications

Brand Name C-TEC
Manufacturer Part Number CFP702-2
Product Type Fire Alarm Control Panel

Technical information

Connectivity Technology Wired
Maximum Operating Range 500.00m
Number of Relays Supported 2
Number of Standard Zones 2
Panel Control Type Conventional

Battery information

Battery Voltage 12.00V

Certifications

Certifications & Standards CE, EN54-2/4 by the LPCB (0832-CPR-F0386), LPCB

Physical characteristics

Depth 96.00mm
Height 235.00mm
Weight 1.75kg
Width 380.00mm

Power description

Input Voltage 20-27V

Product information

Mount Type Flush Mount, Surface Mount

Miscellaneous

Additional Information Mains rated current 350 mA maximum. Internal power supply 19V-28.5V (27V nominal). Ripple 7V maximum (battery fault). Total output current limited to 1.5A @ 230V AC (ImaxA eq 146 mA). Quiescent current 25 mA (mains failed, internal sounder
Compatibility Detection Devices and Alarm Devices
Environmental certification EN 54-2/4

Attributes

Compatibility Detection Devices and Alarm Devices
Input Voltage 20-27V
Weight 1.75kg

C-TEC CFP702-2 fire alarm panel

C-TEC CFP702-2 fire alarm panel, Flush, Surface Mount

Who this is for

For the installer — this is the fire alarm panel supplied under C-TEC part number CFP702-2. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a fire alarm panel made by C-TEC. The part number CFP702-2 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this fire alarm panel is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact fire alarm panel I have been quoted? Check the manufacturer part number CFP702-2 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against CFP702-2 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

C-TEC CFP702-2 fire alarm panel
C-TEC

C-TEC CFP702-2 fire alarm panel, Flush, Surface Mount

£167.53 £201.04

C-TEC CFP702-2 is a fire alarm panel.

LPCB certified to EN54-2/4, C-TEC's CFP two-wire 2 zone AlarmSense fire panel is designed to work with Apollo's AlarmSense range of detectors, call points, sounders and visual indicators. Most conventional fire systems work with two pairs of wires per zone: one pair for detection devices; the other for alarm devices. By using different voltage bands for quiescent and alarm states, AlarmSense components can be connected to the same pair of supply wires.

This reliable technology takes all of the complexity out of fire system design, leading to quicker, more flexible installation and around a 20-25% reduction of labour over a standard four wire system. The CFP702-2 includes two AlarmSense zones, four conventional sounder circuits, class change & alert inputs and on-board fire & fault relays. A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone facilities.

Key features

If you are matching this to an existing installation, work from the CFP702-2 part number rather than the description.
