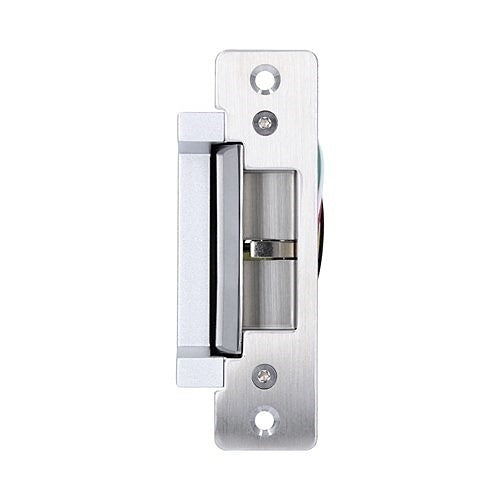

CDVI ARU-M electric strike, Silver
£
44
09
(Incl. VAT)
RRP: £52.91
About this product
CDVI ARU-M is an electric strike from the ARU range.
This page covers CDVI part ARU-M. Everything below is recorded against that exact part number rather than against the wider range it belongs to.
The figures held against it cover application/usage, packaged quantity, compatible door frame type among others. Anything not listed we have not stated.
Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.
Key features
- Application/Usage: Access Control System, Commercial, Door, Industrial, Public Building, Wooden Door. This is the figure the record carries for this exact part number.
- Packaged Quantity: 1. Parts in the same family can differ here, so check the code rather than the family.
- Compatible Door Frame Type: Metal, Wood. It is listed for this part number, not for the range as a whole.
- Compatible Door Lock Type: Mortise. Where your specification names a figure, compare it against this one before ordering.
- Holding Strength: 1100kg. Parts in the same family can differ here, so check the code rather than the family.
- Security Configuration: Fail Safe, Fail Secure. This is the figure the record carries for this exact part number.
- RoHS compliance: Recorded as compliant with the Restriction of Hazardous Substances rules, which limit specified hazardous materials in electrical equipment. Where your specification names a figure, compare it against this one before ordering.
- WEEE compliance: Recorded as compliant with the Waste Electrical and Electronic Equipment rules, which govern how the product is taken back and recycled at end of life. It is listed for this part number, not for the range as a whole.
- Colour: Silver. This is the figure the record carries for this exact part number.
- Material: Stainless Steel. Parts in the same family can differ here, so check the code rather than the family.
- Weight: 380.00g. It is listed for this part number, not for the range as a whole.
- Holding Force: 1100.00kg. Where your specification names a figure, compare it against this one before ordering.
- Mount Type: Door Mount. Parts in the same family can differ here, so check the code rather than the family.
- Additional Information: 12V DC at 250mA Consumption, 12V DC Power input, tested to 200,000 operations Accepts extension lips (25mm & 50mm). This is the figure the record carries for this exact part number.
Use cases
Specify this part where the electric strike role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.
- Where it goes: Recorded for indoor, outdoor use.
- Mounting: Recorded as door mount.
- Typical application: Access Control System, Commercial, Door, Industrial, Public Building, Wooden Door.
If you are matching this to an existing installation, work from the ARU-M part number rather than the description.
£
44
09
RRP: £52.91
Save £8.82
Price
Technical Details
Specifications
Brand Name
CDVI
Manufacturer Part Number
ARU-M
Product Series
ARU
Product Type
Electric Strikes
General information
Application/Usage
Access Control System, Commercial, Door, Industrial, Public Building, Wooden Door
Packaged Quantity
1
Technical information
Compatible Door Frame Type
Metal, Wood
Compatible Door Lock Type
Mortise
Holding Strength
1100kg
Security Configuration
Fail Safe, Fail Secure
Certifications
RoHS compliance
Compliant
WEEE compliance
Compliant
Physical characteristics
Colour
Silver
Material
Stainless Steel
Weight
380.00g
Power description
Input Current
280mA
Input Voltage
12V DC
Product information
Holding Force
1100.00kg
Mount Type
Door Mount
Miscellaneous
Additional Information
12V DC at 250mA Consumption, 12V DC Power input, tested to 200,000 operations Accepts extension lips (25mm & 50mm)
Compatibility
Wooden/Metal Doors
Features
Monitored, Reversible
Indoor or outdoor use
Indoor, Outdoor
Package Contents
Long and short faceplate Full fixing kit for metal doors
Attributes
Compatibility
Wooden/Metal Doors
Input Voltage
12V DC
Package Contents
Long and short faceplate Full fixing kit for metal doors
Weight
380.00g
Input Current
280mA
Specifications
| Brand Name | CDVI |
|---|---|
| Manufacturer Part Number | ARU-M |
| Product Series | ARU |
| Product Type | Electric Strikes |
General information
| Application/Usage | Access Control System, Commercial, Door, Industrial, Public Building, Wooden Door |
|---|---|
| Packaged Quantity | 1 |
Technical information
| Compatible Door Frame Type | Metal, Wood |
|---|---|
| Compatible Door Lock Type | Mortise |
| Holding Strength | 1100kg |
| Security Configuration | Fail Safe, Fail Secure |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Physical characteristics
| Colour | Silver |
|---|---|
| Material | Stainless Steel |
| Weight | 380.00g |
Power description
| Input Current | 280mA |
|---|---|
| Input Voltage | 12V DC |
Product information
| Holding Force | 1100.00kg |
|---|---|
| Mount Type | Door Mount |
Miscellaneous
| Additional Information | 12V DC at 250mA Consumption, 12V DC Power input, tested to 200,000 operations Accepts extension lips (25mm & 50mm) |
|---|---|
| Compatibility | Wooden/Metal Doors |
| Features | Monitored, Reversible |
| Indoor or outdoor use | Indoor, Outdoor |
| Package Contents | Long and short faceplate Full fixing kit for metal doors |
Attributes
| Compatibility | Wooden/Metal Doors |
|---|---|
| Input Voltage | 12V DC |
| Package Contents | Long and short faceplate Full fixing kit for metal doors |
| Weight | 380.00g |
| Input Current | 280mA |
features
CDVI ARU-M electric strike, Silver
