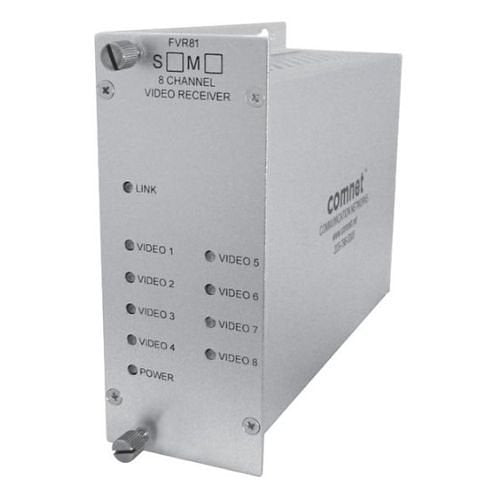

Comnet FVR81M1 encoded video receiver, Rack Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comnet FVR81M1 is an encoded video receiver.
The Comnet FVT/FVR81 video transmitter and video receiver series utilizing state of the art digital encoding and decoding for high-quality video transmission. These environmentally hardened units provide transmission of eight independent video channels over one optical fiber and are ideal for use in unconditioned roadside or outof-plant installations.
Key features
- Standard ComFit models are hot-swappable
- Digitally encoded video transmission, transmits 8 real-time color video signals
- Status indicating LEDs provide rapid indication of critical operating parameters
- Exceptionally low video distortion with zero Performance Variation versus Optical Path Loss
- Robust design ensures extremely high reliability in unconditioned out-of-plant environments
- ComFit standard form factor is designed for wall, surface, rack, or DIN rail mount installations (using optional card cage or DIN mounting bracket)
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- Designed for installation in harsh out-of-plant/unconditioned industrial or roadside operating environments (-40º to +75ºC ambient). Fully compliant with the environmental requirements of NEMA TS-2 for Traffic Signal Control Equipment
If you are matching this to an existing installation, work from the FVR81M1 part number rather than the description.
-
Download
- FVR81M1 — Product Manual
Specifications
Technical information
Interfaces/ports
Physical characteristics
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Comnet |
|---|---|
| Manufacturer Part Number | FVR81M1 |
| Product Type | Video Extender Receiver |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Maximum Operating Distance | 3km |
| Media Type Supported | Optical Fiber |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 8 |
Interfaces/ports
| Number of ST Ports | 1 |
|---|
Physical characteristics
| Colour | Red |
|---|---|
| Depth | 154.94mm |
| Form Factor | Rack Mount |
| Height | 55.88mm |
| Width | 134.62mm |
Product information
| Mount Type | Freestanding, Rack Mount |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Package Contents | DC Plug-in Power Supply 90-264 V AC 50 60 Hz |
Attributes
| Package Contents | DC Plug-in Power Supply 90-264 V AC 50 60 Hz |
|---|
