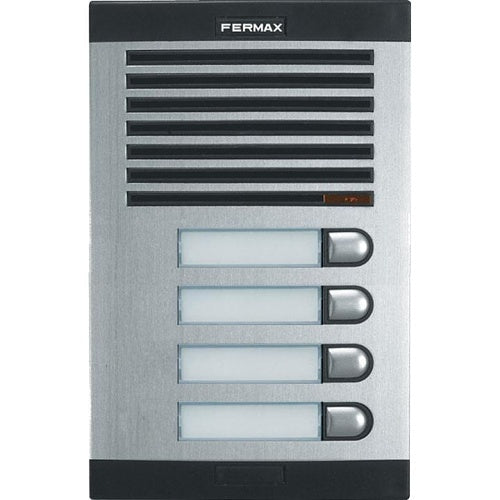

Fermax 8593 intercom door station

Please note: this is a non-returnable item (excluding faulty goods)

Fermax 8593 is an intercom door station from the Classic range.

Installed in the accesses to the building, they enable communication with homes, door opening, guard unit call , etc. CityLine Classic is the "continuous profile" outdoor panel line for buildings. The PANELS are manufactured in anodized aluminium, highly resistant to rough weather and climate changes.

The panel design stands out for its curved-convex profile. A cellular rubber airtight seal included assures a perfect panel-to-wall fit to prevent water filtrations. It is possible to combine two or more panels, as long as they are from the same series.

For a perfect fit, a set of separators should be used for every two panels installed between their flush mounted boxes. Colour aluminium Call Pushbuttons streamlined metallic shape in line with the panel’s curved profile. Pressing the call button is confirmed by an acoustic signal from the amplifier.

Equipped with special silver plated contacts that make them last longer. Pushbuttons include a card slot to insert a label with the home owner’s name and door number. When the lighting key on the front of the amplifier is pressed, a soft light lets you see the card slots, even in total darkness.

Conventional System uses wires common to the whole installation plus 1 call wire (or call return) per home.. Recommended in small to medium-sized buildings (up to 50 residents approx), with several accesses and central guard unit. For residential complexes with general entrance and interior blocks.

Wiring - Audio door entry system - 4 common wires N (1 call wire per home). Video door entry system 7 common wires 1 video coaxial N (1 call wire per home). Maximum distance in the installation based on the cable section used (see technical manuals).

Key features

• Surface mount installation only
• Anodized aluminum panel resists rough weather and climate changes
• Curvedconvex profile design for aesthetics
• Cellular rubber airtight seal prevents water infiltration
• Allows combination of multiple panels from the same series
• Streamlined metallic call pushbuttons matching panel profile
• Acoustic signal confirmation on button press
• Silver plated contacts in pushbuttons for enhanced durability
• Label card slots illuminated by soft light for visibility in darkness
• Conventional wiring with common wires plus one call wire per home

If you are matching this to an existing installation, work from the 8593 part number rather than the description.
