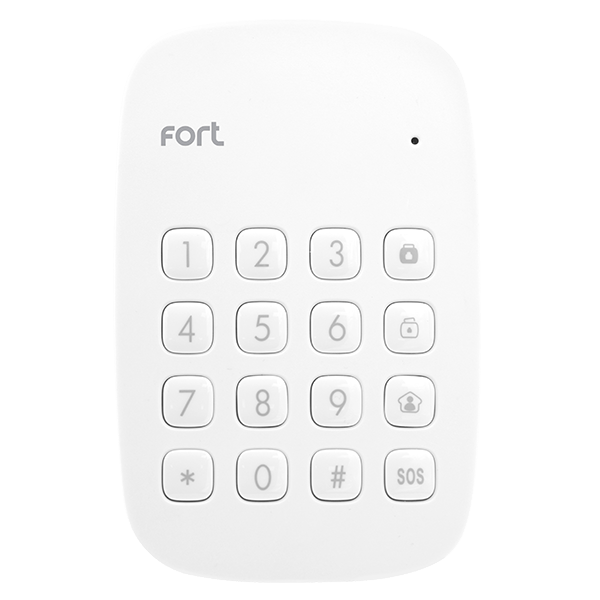

Fort ECSPKY Smart Alarm Keypad
£
30
42
(Incl. VAT)
Smart Alarm Keypad
About this product
About this product
The Fort ECSPKY is a Smart Alarm Keypad.
Key Features
- Battery powered (supplied)
- Tamper protection
- Low power indication
- Disarm, home mode and panic function (arm via fob)
- Genuine ESP smart alarms supplied by WME
-
Download
- ECSPKY Tech Sheet
£
30
42
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
135 x 90 x 15
Operating Voltage (V DC)
4.5
Fob Reader Operating Distance (mm)
<50
Power Consumption (A)
0.06
PIN length
6 for Administration, 4 for User
Power Reserve
12 Months (Approx.)
Backlit
Keys (Blue LED's)
Battery Type
AAA (LR03) x 3
Status Indication
Green LED
Transmission Frequency (MHz)
433
Weight (Kg)
0.14
Transmission Distance (m)
80m (open field)
Materials
ABS
Relative Humidity Resistance (%)
<80 (non-condensing)
Colour
White
Mounting
Surface
Available Operations
Home/Disarm/SOS
Additional Information
Disarm, Home Mode and Panic Function (Arm Via Fob)
Dimensions
Dimensions (mm)
135 x 90 x 15
Specifications
| Dimensions (mm) | 135 x 90 x 15 |
|---|---|
| Operating Voltage (V DC) | 4.5 |
| Fob Reader Operating Distance (mm) | <50 |
| Power Consumption (A) | 0.06 |
| PIN length | 6 for Administration, 4 for User |
| Power Reserve | 12 Months (Approx.) |
| Backlit | Keys (Blue LED's) |
| Battery Type | AAA (LR03) x 3 |
| Status Indication | Green LED |
| Transmission Frequency (MHz) | 433 |
| Weight (Kg) | 0.14 |
| Transmission Distance (m) | 80m (open field) |
| Materials | ABS |
| Relative Humidity Resistance (%) | <80 (non-condensing) |
| Colour | White |
| Mounting | Surface |
| Available Operations | Home/Disarm/SOS |
| Additional Information | Disarm, Home Mode and Panic Function (Arm Via Fob) |
Dimensions
| Dimensions (mm) | 135 x 90 x 15 |
|---|
Smart Alarm Keypad features
Fort ECSPKY Smart Alarm Keypad
