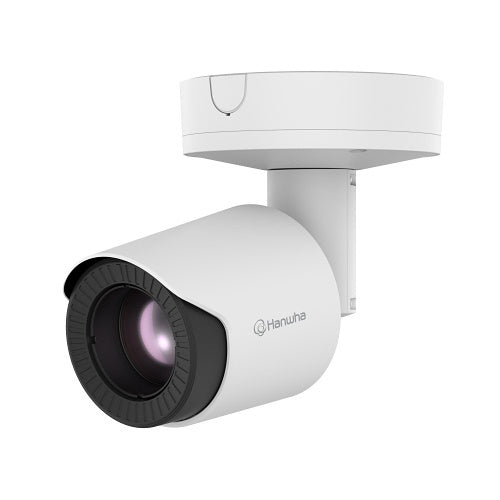

Hanwha Vision TNO-C3080T compact bullet camera, 60mm
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hanwha Vision TNO-C3080T is a compact bullet camera from the T range.
The new line of QVGA AI Telephoto Lens Thermal Cameras from Hanwha Vision enables you to accurately detect and classify people and vehicles at long range, even in challenging weather and lighting conditions. Available in 13mm, 19mm, 35mm and 60mm focal length options to best fit your needs. Thermal cameras are a powerful tool in monitoring applications where there is very little light, due to their ability to create images based on heat.
Maximize your view in complete darkness, bad weather, and low-contrast conditions such as rain or fog. Powered by advanced image processing technology, QVGA AI Telephoto Lens Thermal Cameras provide enhanced thermal contrast, resulting in higher-quality images and more accurate AI object classification perFormance. Camera size has been reduced by more than 40% compared to previous-generation radiometric cameras, making them ideal for installation in environments with limited space.
QVGA AI Telephoto Lens Thermal Cameras support both one-way and two-way communication and audio recording.
Key features
- Wisenet T network thermal compact bullet camera
- QVGA resolution (384x288, 17μm)
- 60mm Tele lens option
- High perFormance thermal sensitivity (NETD 20mK at 25°C)
- AI based object classification (person, vehicle)
- Max. 30fps (H.265/H.264/MJPEG)
- IP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H
- Built-in SD card slot (1x1TB)
- Integrated back box
If you are matching this to an existing installation, work from the TNO-C3080T part number rather than the description.
Specifications
Technical information
Certifications
Environmental conditions
Lens
Memory
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | Hanwha Vision |
|---|---|
| Manufacturer Part Number | TNO-C3080T |
| Product Series | T |
Technical information
| Field of View | Diagonal, Horizontal, Vertical |
|---|---|
| Lens Type | Fixed |
| Maximum Frame Rate | 30fps |
Certifications
| Ingress protection | IP66 |
|---|
Environmental conditions
| Operating Humidity | 0-95% RH (Non-Condensing) |
|---|---|
| Operating Temperature (T-T) | -40-60°C |
| Storage Temperature (T-T) | -50-60°C |
Lens
| Focal Length | 60mm |
|---|
Memory
| Memory Card Supported | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Material | Aluminum |
| Weight | 2340.00g |
Power description
| Input Voltage | 12V DC |
|---|
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 2340.00g |
