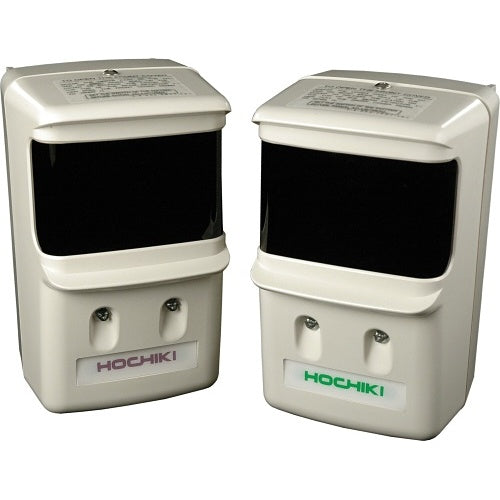

HOCHIKI SPC-ET beam smoke detector, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)
HOCHIKI SPC-ET is a beam smoke detector.
Discover the precision and reliability of the Hochiki SPC-ET Optical Beam Smoke Detector, perfect for spaces requiring a range of 5 to 100 meters. This advanced detector offers automatic compensation and signal strength adjustment to ensure optimal performance. It can be powered directly from a zone or loop, and features both latching and non-latching fault relay options.
Easily integrate it into an ESP system using a CHQ-DZM or CHQ-SZM. With full line continuity options and approvals from LPCB & VdS, it's an ideal choice for enhancing safety. Consider adding this essential safety device to your system today!
Key features
- 5 to 100m range
- Automatic compensation
- Automatic signal strength adjustment
- Emitter unit can be powered directly from zone (or loop)
- Features a Latching or Non-Latching Fault Relay
- Can be interfaced onto ESP system via a CHQ-DZM or CHQ-SZM
- Full line continuity options
- Approved by LPCB & VdS
If you are matching this to an existing installation, work from the SPC-ET part number rather than the description.
-
Download
- SPC-ET — Product Manual
Specifications
Technical information
Environmental conditions
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | HOCHIKI |
|---|---|
| Manufacturer Part Number | SPC-ET |
| Product Type | Smoke Detector |
Technical information
| Maximum Coverage Area | 1500.0m2 |
|---|---|
| Sensing Technology | Infrared |
Environmental conditions
| Operating Relative Humidity (H-H) | 95% |
|---|---|
| Operating Temperature (T-T) | -10-50°C |
| Storage Temperature (T-T) | -30-60°C |
Physical characteristics
| Colour | White |
|---|---|
| Height | 145.00mm |
| Material | ACS |
| Width | 86.00mm |
Power description
| Input Voltage | 15-33V DC |
|---|
Miscellaneous
| Compatibility | CHQ-DZM Dual Zone Module, CHQ-SZM Single Zone Module, Hochikis ESP system |
|---|
Attributes
| Compatibility | CHQ-DZM Dual Zone Module, CHQ-SZM Single Zone Module, Hochikis ESP system |
|---|---|
| Input Voltage | 15-33V DC |
| Maximum Coverage Area | 1500.0m2 |
| Operating Relative Humidity (H-H) | 95% |
