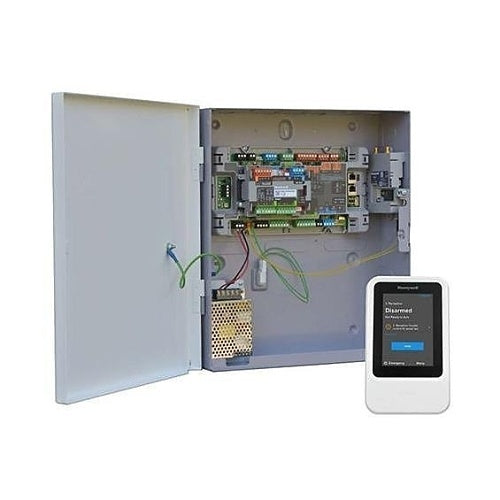

Honeywell Commercial Security MPIP2KIT04 kit
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Honeywell Commercial Security MPIP2KIT04 is a kit.
MAXPRO Intrusion (MPI) from Honeywell is a modular and scalable cloud-based intrusion system suitable for access control and video integration. Installation of this Grade 3 system is intuitive due to color-grouped components and names of the connections on the prints. The colored connectors are removable, making cabling easy.
The power of MPI is partly due to MAXPRO® Cloud. The associated robust web-based platform from Honeywell with which the MPI control panels and all associated peripherals are always available online. The control panels can easily be programmed and managed remotely in MAXPRO® Cloud via Chrome web browser.
Key features
- 10 zones onboard, expandable to 60 zones
- Zones 9 and 10 can be used for 2-wire smoke detectors
- 4 OC outputs and 1 relay on the main board, expandable to 60 outputs
- Access control up to 10 doors
- Burglary log up to 1000 events
- 1 IB2 data bus with free wiring topology (bus, star or branch)
- 14V DC Power Supply Voltage
If you are matching this to an existing installation, work from the MPIP2KIT04 part number rather than the description.
Specifications
Technical information
Certifications
Specifications
| Brand Name | Honeywell Commercial Security |
|---|---|
| Manufacturer Part Number | MPIP2KIT04 |
Technical information
| Connectivity Technology | Wired, Wireless |
|---|
Certifications
| LPCB Certified | Yes |
|---|---|
| SBSC Certified | Yes |
Honeywell Commercial Security MPIP2KIT04 kit
