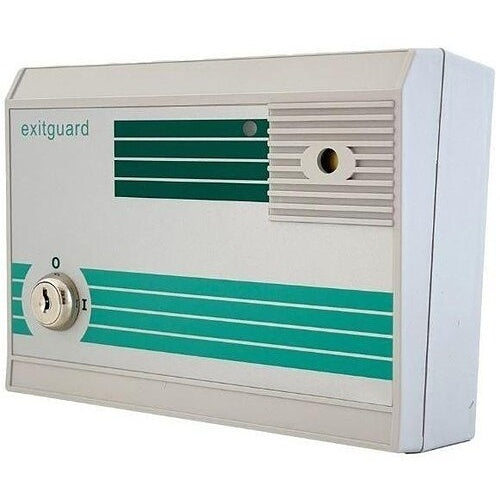

Hoyles EX125I-T door alarm
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hoyles EX125I-T is a door alarm.
Designed specifically for integration with Grade 2 EN50131 intruder alarm systems monitoring either 1k/1k Honeywell, or 2k2/4k7, such as Pyronix, Texecom and Castle, the Exitguard EX125iS-T is the ideal solution for all types of door security issues. Any alarm or fault is communicated to the main intruder alarm system using a supervised loop for On/Off monitor and separate Alarm output. An auto sounder reduction feature is incorporated to attenuate the sounder after a preset period to reduce the annoyance caused if the key holder is not immediately available.
However, the sounder will restart if the door is opened again. The Bleep In Off (BIO) function can be enabled to provide a local audible and visual indication when the Exitguard is turned off. This reduces the likelihood of the Exitguard being left turned off.
Selectable resistors on the alarm circuits allow for compatibility with key intruder panel manufacturers’ systems.
Key features
- Designed for Grade 2 intruder systems
- High power piezo sounder 108dB at 1m
- Visual alarm indication
- Keyswitch control with random key numbers
- Audible/visual warning when turned off (BIO)
- Supervised loop for On/Off monitor and separate alarm output
- Safe Set to minimises false alarms
- Tamper switch
- Simple function change by internal jumpers
- Compatible with key panel manufacturers
If you are matching this to an existing installation, work from the EX125I-T part number rather than the description.
-
Download
- EX125I-T — Product Manual
Specifications
Power description
Attributes
Specifications
| Brand Name | Hoyles |
|---|---|
| Manufacturer Part Number | EX125I-T |
| Product Type | Security Alarm |
Power description
| Power Source | DC Power |
|---|
Attributes
| Power Source | DC Power |
|---|
