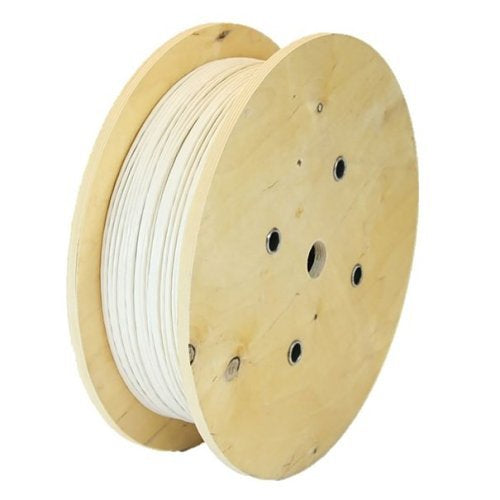

Kidde ADE88-0100 lhd cable, 100m
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Kidde ADE88-0100 is a lhd cable from the Alarmline II range.
The ADE88-0100 is a Digital Linear Heat Detection (LHD) cable with a 88°C fixed temperature activation rating. The ADE range of digital sensor cables provides a very simple fixed temperature heat detection system which can be used in many applications where other forms of detection are not suitable.
Key features
- Flame retardant
- Low-Smoke Zero Halogen
- Detection along total cable length
- Simple low maintenance installation
If you are matching this to an existing installation, work from the ADE88-0100 part number rather than the description.
Specifications
Technical information
Certifications
Physical characteristics
Miscellaneous
Attributes
Specifications
| Brand Name | Kidde |
|---|---|
| Manufacturer Part Number | ADE88-0100 |
| Product Series | Alarmline II |
| Product Type | LHD Cable |
Technical information
| Cable Type | Digital |
|---|---|
| Conductor Count | 1 |
| Device Supported | Fire monitoring equipment |
| Maximum Distance | 1.00km |
| Number of Conductors | 2 |
| Number of Pairs | 1 |
Certifications
| CE marking | Yes |
|---|
Physical characteristics
| Cable Length | 100.00m |
|---|---|
| Colour | White |
Miscellaneous
| Environmental status | Yes |
|---|
Attributes
| Device Supported | Fire monitoring equipment |
|---|
