Nitek WP1325 abs molded enclosure, Grey
About this product
Please note: this is a non-returnable item (excluding faulty goods)

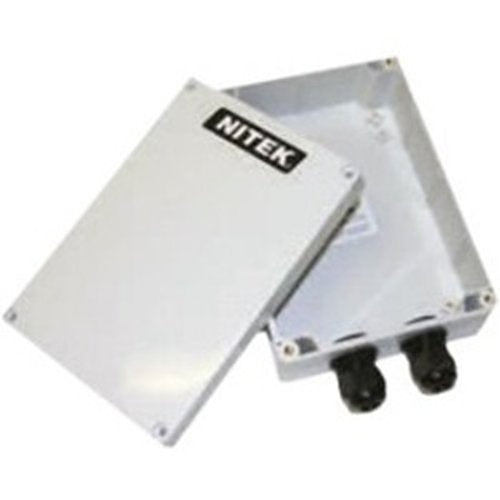

Nitek WP1325 is an abs molded enclosure.
The WP1325 is an Outdoor Enclosure Kit for Nitek Ethernet Extender products. The Kit includes a NEMA 4X rated Weatherproof, Polycarbonate, high-impact ABS molded enclosure, a Polycarbonate, high-impact ABS molded top with a Neoprene sealing gasket, 4-Stainless Steel screws to secure the top to the box and 2-UL94V-2 weatherproof nylon cable seals to maintain NEMA 4 or 4X ratings at the cable entry points. The cover attaching screws are located outside the sealing area to prevent ingress of moisture and dirt.
Cover screws fasten to threaded brass inserts.
Key features
- Weatherproof
- Includes NEMA 4X rated outdoor housing
- Designed to IP 65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 Specifications
- Cover Attaching Screws Are Outside the Sealing Area, Preventing Ingress of Moisture and Dust
- Cover Screws Are M-4 Stainless Steel, Non-Magnetic and Fasten into Threaded Brass Inserts
If you are matching this to an existing installation, work from the WP1325 part number rather than the description.
-
Download
- WP1325 — Product Manual
Specifications
Technical information
Physical characteristics
Miscellaneous
Attributes
Specifications
| Brand Name | Nitek |
|---|---|
| Manufacturer Part Number | WP1325 |
| Product Type | Mounting Box |
Technical information
| Device Supported | Cable, Network Extender, Surge Protector |
|---|
Physical characteristics
| Colour | Grey |
|---|---|
| Depth | 5.50cm |
| Height | 25.20cm |
| Material | ABS, Neoprene, PC |
| Width | 14.60cm |
Miscellaneous
| Compatibility | Nitek Ethernet Extender Series: EE328 EL1500 ET1500 |
|---|---|
| Environmental status | Yes |
Attributes
| Compatibility | Nitek Ethernet Extender Series: EE328 ; EL1500; ET1500 |
|---|---|
| Device Supported | Cable, Network Extender, Surge Protector |
| Package Contents | Outdoor Rated Housing; Top with Sealing Gasket; 4 x Screws; 2 x Cable Seals |
