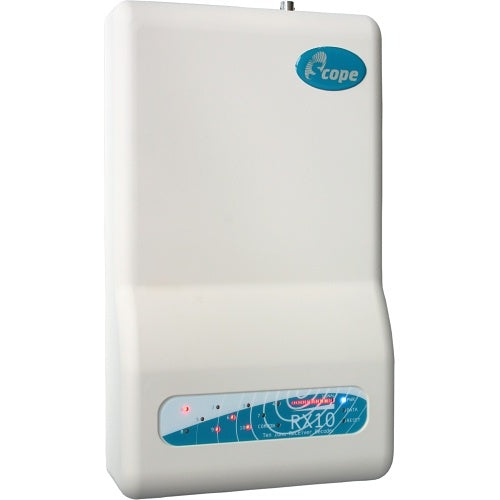

Scope RX10TAC large case
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Scope RX10TAC is a large case from the Rx10 range.
Scope Rx10 has 10 zones each have an individual relay output which can be set for latching, momentary, or change of state. There is also a configurable common relay, there is also a programmable RS232 serial output. If 10 zones aren’t enough then multiple expansion modules can be added (PZ10) each providing another 10 zones.
Key features
- Test call monitoring possible
- Flexible settings for relays (latched, Change of state, momentary or test call monitored)
- Capable of being battery backed up
- Signal strength on display only
If you are matching this to an existing installation, work from the RX10TAC part number rather than the description.
-
Download
- RX10TAC — User Manual
Specifications
Certifications
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Scope |
|---|---|
| Manufacturer Part Number | RX10TAC |
| Product Series | Rx10 |
| Product Type | Receiver |
Certifications
| ATEX Compliant | No |
|---|---|
| CE marking | Yes |
Physical characteristics
| Depth | 42.00mm |
|---|---|
| Height | 185.00mm |
| Width | 140.00mm |
Power description
| Frequency | 470MHz |
|---|---|
| Input Voltage | 12-13.8V DC, 230V AC |
Miscellaneous
| Compatibility | All Scope POCSAG transmitters |
|---|---|
| Environmental status | Yes |
Attributes
| Compatibility | All Scope POCSAG transmitters |
|---|---|
| Input Voltage | 12-13.8V DC, 230V AC |
