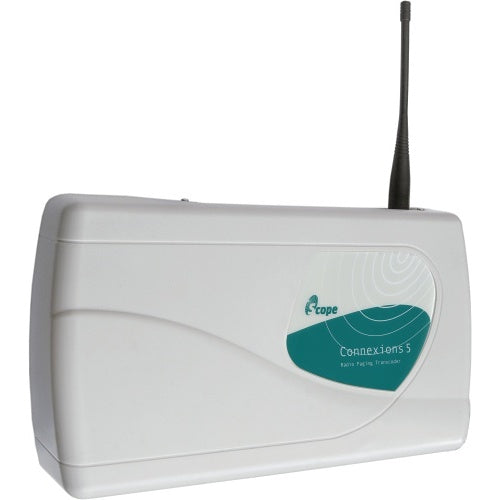

Scope CX5RUMDC paging transmitter
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Scope CX5RUMDC is a paging transmitter from the Connexions range.
Scope Connexions transmitter has been designed to replicate / mimic panel display text to pagers. For security staff, maintenance staff, nursing staff fire Marshall, etc to instantly see the alert information text from the panel on the move. Making the response time faster as they do not need to attend the panel for the alert text location.
Its modular, high-performance interfaces enable direct connections with various Fire, Nurse, Intruder, and Security panel devices via PC networks – including Ethernet (optional), RS232, RS485, and USB serial interfaces. The pager range can cover up to a mile, depending on the environment. Moreover, it includes eight dry contact inputs, which permit hard wiring to devices so customized messages can be sent to pagers triggered by relays from toilet alarms, doorbells, lockdowns, and DDA, among others.
Operating at UHF frequencies guarantees a remarkably high level of reliability for transmissions in commercial environments, all while using very small and discreet antennas.
Key features
- Benchmark UHF radio paging transmitter 2 Watt Rf power output
- Available with Three RS232 input ports, 8 dry contacts and USB port
- Optional Internal Protocol Conversion module to enable data from third party panels to be paged. Most major fire panels, security panels and nurse-call systems are supported (phone for more details)
- Ranges of up to a mile are possible with the basic antenna supplied, external antennas and transponders can be added to improve coverage on difficult sites
- Connex Page PC paging option which can access multiple Connexions transmitters over LAN or VPN
- High quality transmitter modules provide rock-solid RF performance. Standard (CX6) and high power (CX5) versions available
- UHF POCSAG signalling format ensures excellent propagation even in difficult environments
- Mains powered and 12VDC models available
- Operational to pagers
If you are matching this to an existing installation, work from the CX5RUMDC part number rather than the description.
-
Download
- CX5RUMDC — User Manual
Specifications
Certifications
Specifications
| Brand Name | Scope |
|---|---|
| Manufacturer Part Number | CX5RUMDC |
| Product Series | Connexions |
| Product Type | Receiver |
Certifications
| ATEX Compliant | No |
|---|---|
| CE marking | Yes |
