Introduction to SFX/C6-UTP-SWA-PE-BLK — Cat6 Armoured External UTP Cable (290 m)
SFX Cables SFX/C6-UTP-SWA-PE-BLKis a purpose-built Cat6 external armoured UTP cable supplied on a 290 m roll. Designed for outdoor and exposed installations, it combines Category 6 performance (up to 250 MHz and Gigabit Ethernet support) with galvanised steel wire armour (SWA) and a weather-resistant polyethylene (PE) outer jacket. Whether you are installing perimeter network runs, CCTV backhaul, or robust links between cabinets on an industrial site, this cable is engineered to deliver reliable data transmission together with mechanical protection against impact, rodent damage and the elements.
Key features at a glance
- Category 6 performance:Supports Gigabit Ethernet (1000 Mbps) up to 250 MHz.
- Armoured protection:Galvanised steel wire armour (SWA) provides mechanical resistance for exposed or direct-burial installations.
- Robust construction:Solid 23 AWG bare copper conductors with HDPE insulation and PE inner/outer jackets.
- Outdoor durability:Black PE sheath (RAL 9005) for UV and weather resistance.
- Compliance:CE and RoHS noted; CPR reaction to fire classification listed as Fca (refer to datasheet for details).
- Length & form factor:Supplied on a 290 m roll for longer continuous runs and reduced joins.
Detailed specifications and benefits
The SFX/C6-UTP-SWA-PE-BLK uses solid bare copper conductors at 23 AWG (~0.55 mm). Solid conductors are ideal for permanent installations where low attenuation and reliable pairing are required. Each conductor is insulated with HDPE, and the pair colours follow standard Cat6 coding (Blue/White-Blue; Orange/White-Orange; Green/White-Green; Brown/White-Brown).
Electrical performance is engineered to meet Category 6 expectations: a characteristic impedance of 100 Ω (±15 Ω across 1–100 MHz, ±20 Ω up to 250 MHz) and support for frequencies up to 250 MHz. That translates to dependable Gigabit Ethernet operation and headroom for most modern network applications.

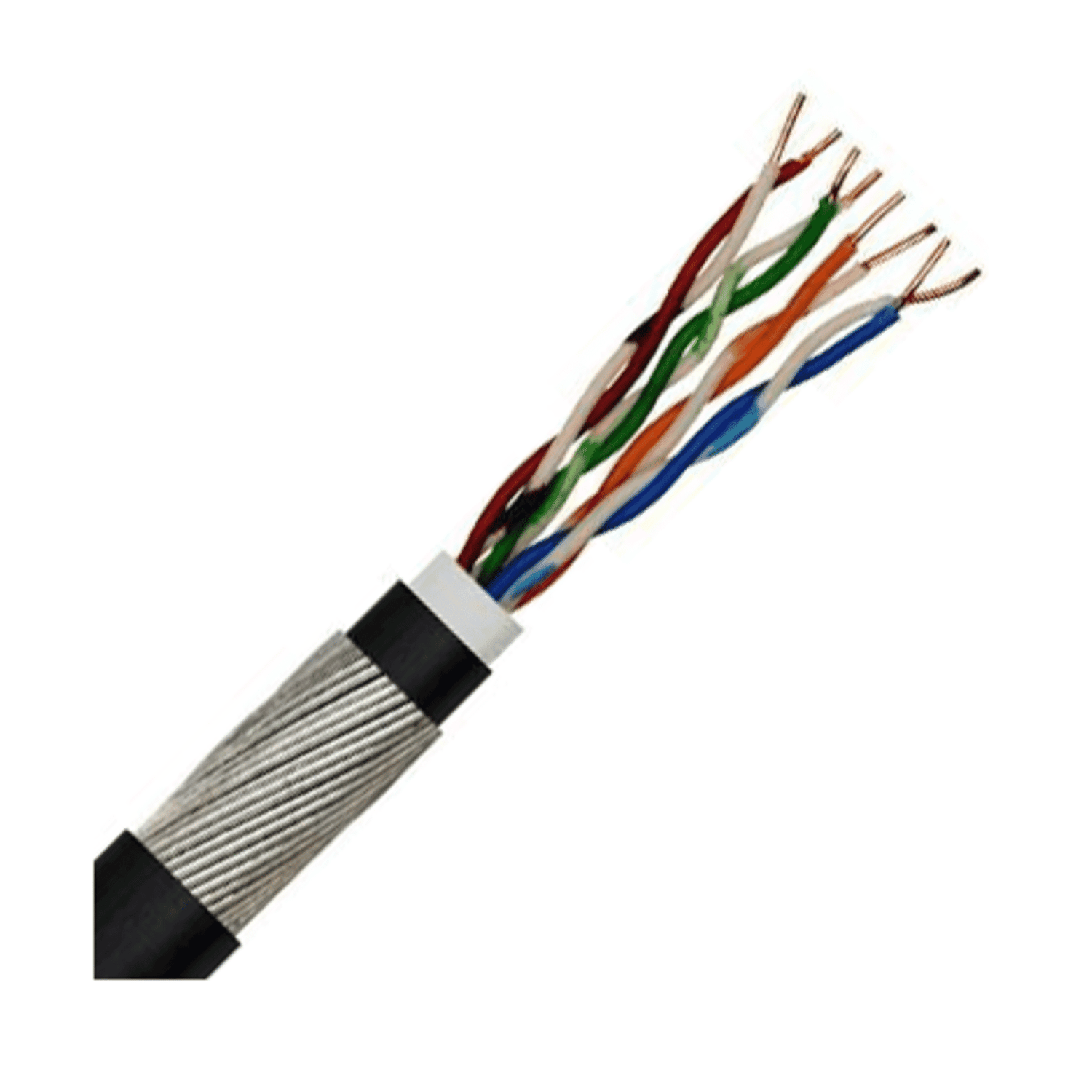

What sets this cable apart for outdoor use is the galvanised steel wire armour (SWA) applied over an inner PE jacket. The armour construction (0.9 x 27) provides meaningful mechanical protection against crushing, digging equipment and rodents when buried or laid in trays. Over the armour sits the black PE outer jacket (RAL 9005), chosen for UV and weather resistance.
Typical mechanical specs include an inner jacket diameter of approximately 10.5 mm and an outer diameter listed around 7.00 ±0.20 mm (refer to the manufacturer drawing for exact dimensions). The cable is rated for a conductor temperature up to 80 °C and a maximum DC conductor resistance of < 83 Ω/km.
The product lists CE and RoHS compliance and carries a CPR reaction to fire classification of Fca. Installers must follow local regulations and industry guidance for external and direct-burial cable running, including correct glands, armoured terminations and earthing/continuity practices for the armour where required. The manufacturer datasheet should be consulted for detailed mechanical drawings and CPD/CPR guidance.
Benefits for installers and system designers
- Durability:Armour and PE sheath extend service life in challenging environments.
- Performance consistency:Solid 23 AWG conductors and Cat6 pairing deliver predictable data rates and lower attenuation over installed runs.
- Reduced joints:290 m roll length minimizes the number of splices or joins on long outdoor runs.
- Versatility:Suitable for direct burial, tray installations and exposed runs along walls or poles.
- Ease of specification:Standard Cat6 signalling simplifies integration with existing network gear while offering mechanical protection not available with standard indoor cables.
Use cases and scenarios where this cable excels
The SFX Cat6 armoured external cable is tailored for situations that demand both network performance and physical protection. Typical scenarios include:
- Perimeter and campus networks:Long outdoor runs between buildings, cabinets or telecom points benefit from armoured cabling that resists accidental mechanical damage and vandalism.
- CCTV/IP surveillance backhaul:Camera networks often require robust outdoor cable runs to carry high-definition streams; the cable supports Gigabit links and stands up to outdoor risks.
- Industrial sites and factories:Environments with heavy machinery, dust and potential impact are suitable for an armoured solution that protects conductors from puncture and crushing.
- Direct burial applications:When installed with appropriate bedding and trench standards, SWA cables can be used in direct-buried runs for permanent installations.
- Telecommunications between street cabinets:Where exposed duct routes or direct runs are needed, this cable reduces the need for additional protective conduits.
Comparisons with similar products on the market
Standard outdoor Cat6 cables often have thicker jackets or polyethylene jackets for UV resistance but lack armour. The SFX armoured variant adds galvanised SWA, offering significantly greater mechanical protection. If the route is exposed to digging, rodents or mechanical stress, the armoured cable is a safer choice; for fully ducted runs where mechanical risk is low, a non-armoured outdoor cable can be more cost-effective.
Unshielded armoured cables like this one rely on careful pair twisting and solid conductor geometry to meet Cat6 performance. Shielded armoured alternatives (foil or braid around pairs plus outer armour) add protection against electromagnetic interference (EMI). Choose shielded armoured cables when runs are adjacent to heavy machinery, power conductors, or other strong EMI sources. For typical outdoor runs and most CCTV/data links, the UTP armoured option balances cost, ease of termination and adequate immunity.
SWA provides point-to-point mechanical protection and is easier to cut and terminate with the correct fittings. Steel tape armour (STA) offers continuous tape coverage that can be more robust against some intrusion types but may be less flexible. The galvanised SWA used in the SFX cable is a good middle ground for many installation types, offering strong protection while remaining practical for installers.
Cat6A provides higher frequency support (up to 500 MHz) and improved alien crosstalk performance, enabling 10 Gigabit Ethernet more reliably at longer distances. If your project requires 10 Gbps over copper outdoors, consider a Cat6A armoured product. For most current backhaul and surveillance uses where Gigabit speeds are the norm, Cat6 armour is a cost-effective and suitable choice.
What customers and installers typically say
While specific customer quotes are not provided here, common installer feedback for armoured Cat6 UTP cables includes:
- "Appreciated the mechanical protection — fewer failures after major landscaping work or site activity."
- "Solid conductors made terminations straightforward for permanent outdoor runs."
- "Good balance of price and robustness compared to fully shielded or Cat6A options when 1 Gbps is adequate."
- "The 290 m roll length reduced joins and saved time on long campus runs."
Installers also frequently remind purchasers to budget for correct glands, armour continuity connectors and earthing provisions — neglecting these installation details can reduce the protective and compliance benefits of armoured cable.
Pricing and value
The suggested price for the SFX/C6-UTP-SWA-PE-BLK is indicated at approximately 765.00 (currency depending on vendor). For the combination of Category 6 performance, galvanised SWA and a 290 m roll length, this positions the product as a competitive option compared with shielded or Cat6A armoured alternatives. Cost-conscious project managers should weigh the requirement for 10 Gbps support, expected site risks, and total installed cost (including glands and termination) when selecting cable.
Conclusion — why choose SFX/C6-UTP-SWA-PE-BLK?
For outdoor network links that demand both data performance and mechanical resilience, the SFX/C6-UTP-SWA-PE-BLK Cat6 armoured external UTP cable is a practical, well-balanced choice. It delivers Category 6 electrical performance for Gigabit Ethernet, robust galvanised SWA for physical protection, and a weather-resistant PE outer jacket suited to exposed or direct-burial installations. The 290 m roll length is convenient for longer runs and reduces splice points, while compliance notes (CE and RoHS) and a defined CPR classification support specification within regulated projects.
If your installation requires reliable Gigabit throughput with added protection against mechanical hazards, this armoured Cat6 solution offers clear advantages in durability, installation efficiency and value. Always pair the cable with correct termination accessories, follow local installation standards, and consult the manufacturer datasheet for full mechanical and regulatory details to ensure a safe, long-lasting deployment.
