Introduction: Meet the SFX CAT6/PE 305m Duct Grade External Cat6 Cable

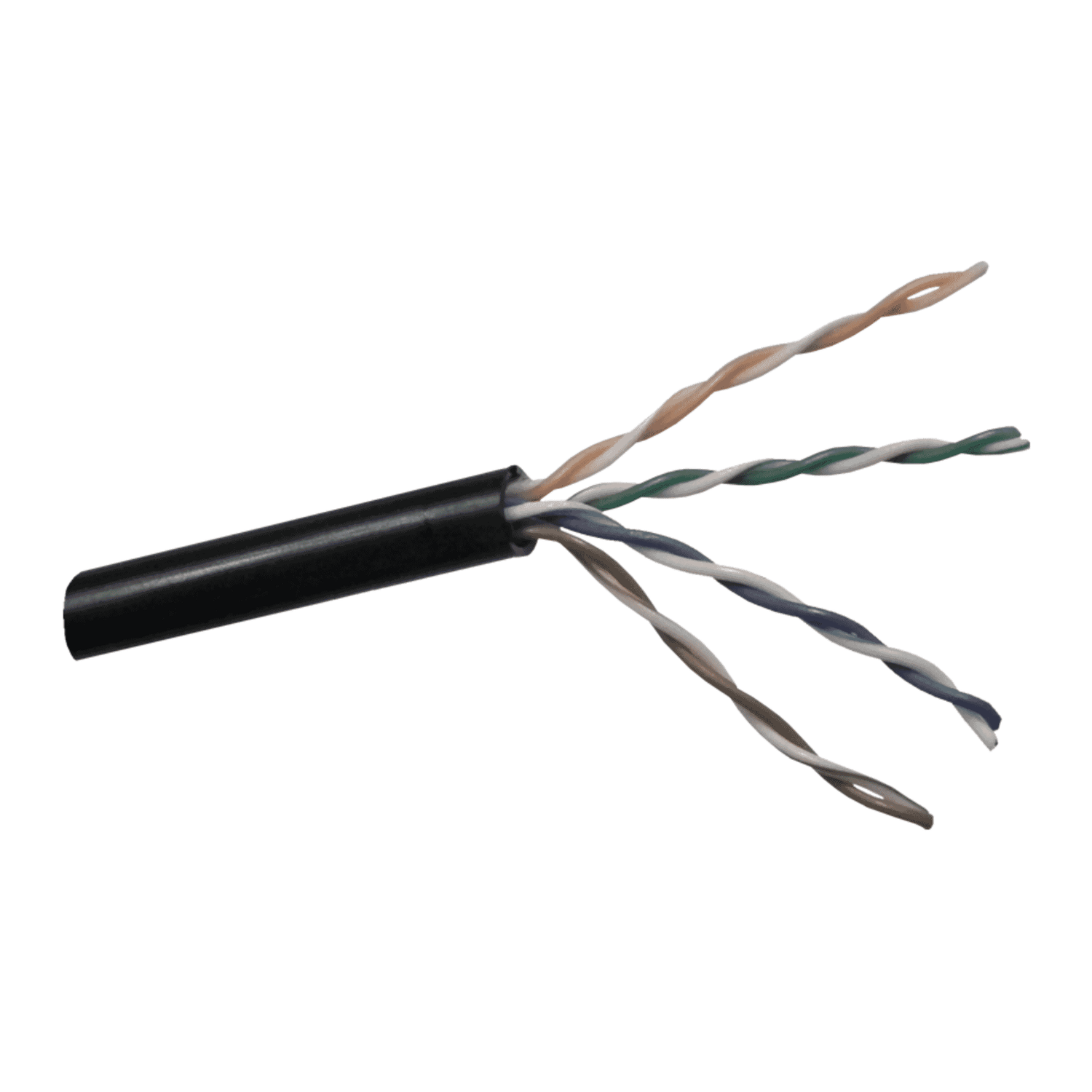

SFX CAT6/PE 305m — Duct/External Grade Cat6 Cableis a purpose-built networking cable designed for outdoor duct runs and external trunking. Supplied in a convenient 305 metre easy-pull box, this Category 6, 4-pair U/UTP cable combines solid 23 AWG copper conductors with a polyethylene (PE) outer jacket that resists UV and moisture. It’s aimed at installers, integrators and contractors who need a weather-resistant, duct-grade cable for gigabit Ethernet backbones, CCTV/IP camera feeds and other outdoor or semi-exposed data links.
Key features at a glance:
- Category:Cat6, rated to 250 MHz for reliable Gigabit Ethernet support.
- Conductor:Solid bare copper, 23 AWG for stable signal transmission.
- Jacket:Polyethylene (PE), black, UV-resistant and suitable for duct/external runs.
- Packaging:305 m easy-pull box for fast on-site deployment.
- Application focus:Duct and external installations including network backbones and camera runs.
Outdoor and duct-installed cables face a different set of challenges than indoor patch cables: sunlight, moisture, temperature swings and the physical constraints of conduit or ductwork. The SFX CAT6/PE is engineered to meet those demands while preserving the performance characteristics expected of a Cat6 cable. It offers a straightforward choice for projects that need duct-rated, UV-stable cabling without moving up to more costly shielded or gel-filled direct-burial products.
Detailed specifications and benefits
The SFX Cat6 External PE cable specification sheet highlights the following technical attributes and practical advantages:
- Cable type:Category 6 (Cat6), 4-pair U/UTP — suitable for structured cabling where shielded cables are not required.
- Length & packaging:305 m easy-pull box — trade-friendly length for many commercial jobs and large residential installations.
- Conductors:Solid bare copper, 23 AWG (~0.56 mm) — offers low attenuation and consistent performance for termination into RJ45 jacks or patch panels.
- Insulation:HDPE insulation around each conductor pair and a central cross/filler — preserves pair geometry to reduce crosstalk and maintain NEXT performance.
- Outer jacket:PE (polyethylene), black, UV and moisture resistant — suited to duct runs and routes with potential outdoor exposure.
- Bandwidth / Data rate:Rated to 250 MHz (Cat6) — supports Gigabit Ethernet (1 Gbps) over full distances. 10GbE may be achievable over short runs depending on installation quality and vendor guidance.
- Markings & features:Typically includes metre markings on the sheath and a rip-cord for easy jacket removal; check the spec sheet for exact metre-mark spacing.
- Compliance:Many external PE Cat6 cables are listed as CPR class Fca; confirm UKCA/CE marking and CPR/fire rating on the delivered SKU prior to installation.
Benefits in practice:
- Durability for duct work and outdoor routes thanks to the PE jacket.
- Consistent Gigabit performance for backbone and camera systems.
- Installer-friendly packaging with an easy-pull box and common on-sheath markings.
- Cost-effective choice vs. fully shielded or direct-burial cables when conduit or ducts provide sufficient mechanical protection.
- Confirm CPR/fire rating and UKCA/CE markings before quoting or installing.
- Protect the cable from sharp edges and mechanical abrasion; use innerduct or conduit where required.
- Respect manufacturer bend-radius guidelines to avoid degrading performance.
- Terminate using appropriate Cat6 components and follow T568A/B wiring standards to maintain category performance.
- For direct burial or prolonged soil exposure, consider a gel-filled direct burial cable instead — PE jackets protect against moisture but may not be sufficient where water ingress is likely without conduit.
Use cases and scenarios where the SFX Cat6/PE excels
This cable is especially useful in scenarios that combine outdoor exposure with the need for structured network performance:
- Campus and multi-building links:Run through ducts between buildings for backbone Ethernet connectivity where a weather-resistant jacket is required.
- CCTV and IP camera deployments:Long camera runs in conduit or trunking benefit from the PE jacket and Cat6 performance for PoE power and gigabit streams.
- Telecommunications and utility ducts:Ideal for installers pulling long lengths through ducts that protect the cable from direct sunlight and mechanical damage.
- Temporary outdoor events:Quick deployment where the cable may be exposed for limited periods yet must handle high-speed data traffic.
- Residential external trunking:Linking outdoor network points (e.g., garden buildings, garages) back to an indoor switch/router via ducting.
Comparisons with similar products on the market
Choosing the right external cable depends on environment, budget and performance needs. Here’s how the SFX Cat6/PE compares to common alternatives:
- Indoor Cat6 U/UTP (PVC jacket):Indoor patch or riser-rated Cat6 cables are cheaper but lack UV and moisture resistance. Use indoor cable only inside buildings; the SFX PE version is superior for duct or outdoor-facing runs.
- Cat6a (shielded or unshielded):Cat6a provides higher frequency performance (500 MHz) and consistent 10GbE support over 100 m. If 10GbE is a firm requirement across long distances, Cat6a or 10G-rated outdoor cables are the better choice — but they are typically thicker and more expensive than Cat6/PE.
- Shielded Cat6 (F/UTP or S/FTP):Shielded cables help in high-EMI environments (near electrical equipment or large motors). The SFX Cat6/PE is U/UTP and is appropriate where EMI is not a concern or where conduit provides separation.
- Direct-burial/gel-filled outdoor cable:These are designed to be buried without conduit and include water-blocking gel. If you need to lay cable in soil, a direct-burial choice is safer; SFX Cat6/PE is intended for duct/external trunking rather than direct burial unless manufacturer guidance permits it.
Conclusion: Why choose the SFX CAT6/PE 305m ?
The SFX CAT6/PE 305m duct-grade cable is a practical, cost-effective solution when you need a weather-resistant Cat6 cable for ducted outdoor runs and external trunking. With solid 23 AWG copper conductors, HDPE pair insulation, and a UV-resistant PE jacket, it delivers reliable Gigabit Ethernet performance and installation-friendly packaging in a trade-length box.
Choose this cable when you need:
- Protected external runs that won’t be direct-buried,
- Dependable Gigabit performance for backbones and camera systems, and
- A budget-conscious option that avoids the extra cost and thickness of Cat6a or shielded variants where they aren’t necessary.
Before installation, confirm the delivered SKU’s CPR/fire rating and UKCA/CE markings, and follow standard installation best practices (bend radius, mechanical protection, correct termination) to ensure the cable meets the expected performance.
Specifications reminder:Category 6, 4-pair U/UTP; 305 m box; solid 23 AWG copper; HDPE insulation; PE outer jacket (black, UV resistant); 250 MHz rating; SKU ITM001022; commonly CPR class Fca — confirm with spec sheet.
