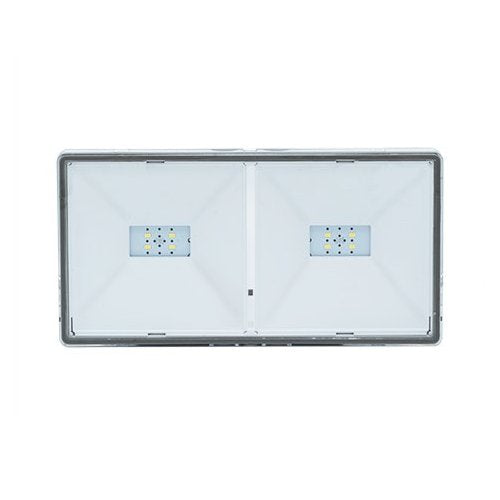

TM Technologie TM-S3.MXATX060W exit sign, Silver
About this product
Please note: this is a non-returnable item (excluding faulty goods)
TM Technologie TM-S3.MXATX060W is an exit sign from the ONTEC S30 AT range.
This multi-purpose large combination IP65 emergency bulkhead light and exit sign features auto-test (self-test) to reduce the time needed for monthly and annual testing. In 3-hour mode, the open area optic LED lamps provide the standard illumination of 184 lumens, while in 1-hour mode the LED lamps provide 414 lumens. The 1-hour high output mode makes it suitable for use in high-risk areas such as kitchens, plant rooms and industrial areas where devices need to be shut down before safe exit from the area.
The included legend enables the ONTEC S30 to be used as an exit sign with up, down, left and right arrow directions and a 30-metre viewing distance. Due to the injection moulded polyurethane gasket, the IP65 rated ONTEC S30 is perfectly suited for industrial or outdoor areas.
Key features
- British kite-mark certified environmentally friendly European design and manufacture
- Large Bulkhead with unique ability to operate at 2 different light output levels (184 or 414 lumens)
- Supplied with 30m viewing distance exit sign legend with multi-directional arrow
- Selectable 3-hour or 1-hour long life lithium iron phosphate battery (LiFePO4/C)
- IP65 / IK08 rating with Polycarbonate Casing
- 3.55W active power
- LED lifetime of 50,000 work hours
If you are matching this to an existing installation, work from the TM-S3.MXATX060W part number rather than the description.
Specifications
General information
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | TM Technologie |
|---|---|
| Manufacturer Part Number | TM-S3.MXATX060W |
| Product Series | ONTEC S30 AT |
| Product Type | Combo Bulkhead Emergency Light |
General information
| Application/Usage | High Risk Industrial |
|---|
Physical characteristics
| Colour | Silver |
|---|---|
| Material | Polycarbonate (PC) |
Power description
| Input Voltage | 210-250V AC |
|---|
Attributes
| Input Voltage | 210-250V AC |
|---|
