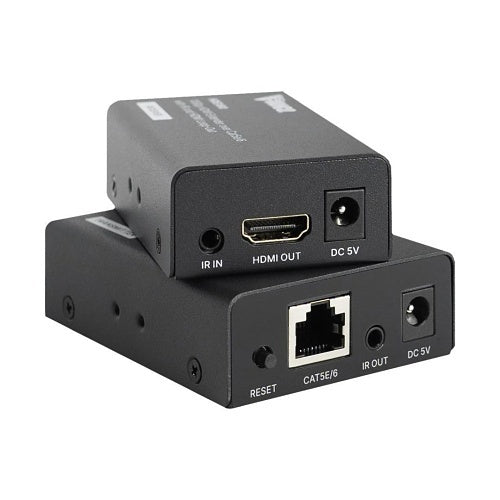

Vanco HDEX60 cable, 1920 x 1080
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Vanco HDEX60 is a cable.
The HDEX60 by Vanco extends 1080p high-definition video, audio, IR, and power up to 196' (60m). Power over Ethernet (PoE) technology allows power from the transmitter to be sent over CAT5e/6 cabling to the receiver. No EDID or EQ changes are necessary as the units automatically adjusts with dynamic EDID management.
HDMI Loop-out is built into the transmitter for connecting additional local displays, AVR, or other system components. IR Pass-through also allows for source control from the display location.
Key features
- 196' (60m) Transmission distance over a single CA5e/6 cable
- Power over Ethernet (PoE) allows a single power supply at the transmitter to provide power to the receiver
- HDMI Loop-out on the transmitter splits or cascades signals for additional components
- IR Pass-through from the receiver to the transmitter with provided IR cables
- Supports 1080p at 60 Hz resolutions
- Compatible with Dolby, DTS, and PCM audio formats
- Dynamic EDID management
- HDCP Compliant
- Includes 5VDC 1A power supply and adapter
If you are matching this to an existing installation, work from the HDEX60 part number rather than the description.
Specifications
Technical information
Display & graphics
Interfaces/ports
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Vanco |
|---|---|
| Manufacturer Part Number | HDEX60 |
Technical information
| Maximum Operating Distance | 60m |
|---|---|
| Media Type Supported | Twisted Pair |
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Number of Network (RJ-45) Ports | 1 |
Power description
| Power over Ethernet (PoE) | Yes |
|---|
Miscellaneous
| Package Contents | 1A Power supply and adapter 5V DC HDEX60 IR cables |
|---|
Attributes
| Package Contents | 1A Power supply and adapter 5V DC HDEX60 IR cables |
|---|
