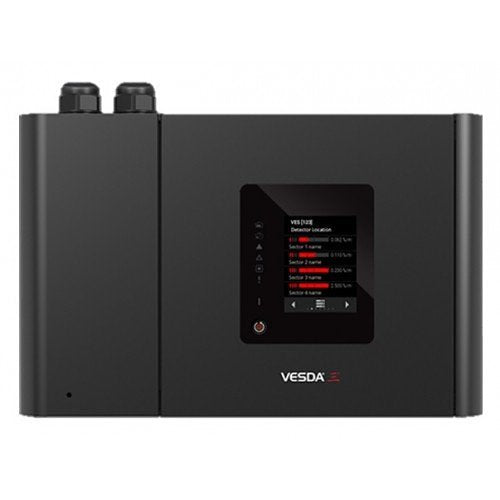

Xtralis by Honeywell VES-A10-P aspirating smoke detector, Silver
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Xtralis by Honeywell VES-A10-P is an aspirating smoke detector from the VESDA-E range.
The VESDA-E VES can identify and monitor smoke density by individual sampling pipe (sector) which allows a single zone to be divided into four separate sectors; for example, distinguishing between separate aisles within a data room. Sector addressability enables the user to respond to a potential fire event quickly by reducing the search area. The VESDA-E VES has four programable alarm thresholds (Alert, Action, Fire 1 and Fire 2) per pipe that allows flexible field application.
After the detector identifies the first sector to reach the Alert threshold it continues to sample from all sectors to report real time status per sector via the intuitive touch screen display. Built on the Flair detection technology and years of application experience the VESDA-E VES detector delivers very early warning with the best in class dust rejection throughout its lifetime. The VESDA-E is the most advanced, reliable, and flexible ASD system ever produced.
Key features
- Flair detection technology delivers reliable very early warning in a wide range of environments with minimal nuisance alarms
- Multi stage filtration and optical protection with clean air barriers ensures lifetime detection performance
- Four alarm levels and a wide sensitivity range deliver optimum protection for the widest range of applications
- Intuitive LCD icon display provides instant status information for immediate response
- Flow fault thresholds per port accommodate varying airflow conditions
- Smart on-board filter retains dust count and remaining filter life for predictable maintenance
- Extensive event log (20,000 events) for event analysis and system diagnostics
- AutoLearn™ smoke and flow for reliable and rapid commissioning
- Referencing to accommodate external environmental conditions to minimize nuisance alarms
If you are matching this to an existing installation, work from the VES-A10-P part number rather than the description.
-
Download
- VES-A10-P — User Manual
Specifications
Technical information
Environmental conditions
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | Xtralis by Honeywell |
|---|---|
| Manufacturer Part Number | VES-A10-P |
| Product Series | VESDA-E |
| Product Type | Smoke Detector |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Maximum Coverage Area | 2000.0m2 |
Environmental conditions
| Operating Relative Humidity (H-H) | 5-95% |
|---|---|
| Operating Temperature (T-T) | 0-38°C |
Physical characteristics
| Colour | Silver |
|---|---|
| Depth | 135.00mm |
| Height | 225.00mm |
| Weight | 4.80kg |
| Width | 350.00mm |
Power description
| Input Voltage | 18-30V DC |
|---|---|
| Power Source | DC Power |
Attributes
| Input Voltage | 18-30V DC |
|---|---|
| Maximum Coverage Area | 2000.0m2 |
| Power Source | DC Power |
| Weight | 4.80kg |
