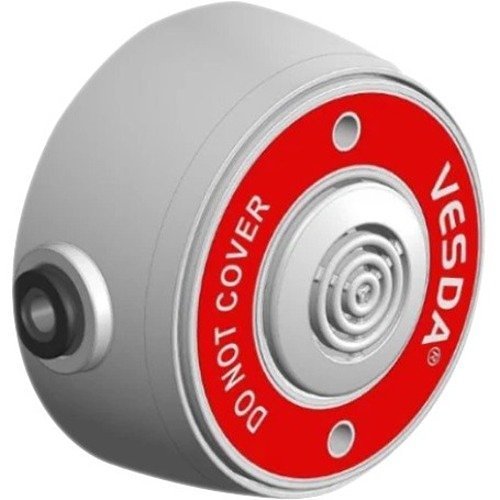

Xtralis by Honeywell VSP-980-W sampling point, Silver
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Xtralis by Honeywell VSP-980-W is a sampling point from the VESDA range.
VEA sampling points are available in two different types (surface mount and standard mount). The Standard sampling points are designed for a ceiling with a void where microbore tubes are run in the void and sampling points are mounted in the ceiling. Sampling points can either be directly screwed to the ceiling or mounted using a retainer supplied as a standard inclusion.
Standard sampling points are available in black or white with 4mm or 6mm inlets to suit appropriate microbore tubes. The inlet has a swivel joint to allow flexible orientation of the tube. The standard sampling points allow blind mounting removing any need to access the ceiling void once the microbore tubes are installed and passed through the ceiling.
The VESDA-E VEA series of detectors combines VESDA reliability and early warning smoke detection with pinpoint addressability and a variety of annunciation options that truly surpass traditional spot detectors. VEA detectors use patented air sampling points and multiple microbore air-sampling tubes with three alarm sensitivity settings. Each patented VEA sampling point and microbore tube is fully supervised by the detector.
End to end supervision combined with system integrity monitoring reduces VEA system servicing and maintenance time by 90% compared to typical spot detection solutions.
Key features
- Two different types, standard and surface mount
- Available in black or white
- Full supervision
- Automated cleaning by the detector
- Swivel joint to allow optimum tube orientation
- Models to suite 6mm and 4mm microbore tubes
- Direct mount or ceiling tile mount with retainer housing
- Ease of replacement
If you are matching this to an existing installation, work from the VSP-980-W part number rather than the description.
Specifications
Technical information
Physical characteristics
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Xtralis by Honeywell |
|---|---|
| Manufacturer Part Number | VSP-980-W |
| Product Series | VESDA |
| Product Type | Smoke Detector Sampling Point |
Technical information
| Device Supported | Smoke Detector |
|---|
Physical characteristics
| Colour | Silver |
|---|---|
| Height | 63.68mm |
| Weight | 453.60g |
Product information
| Mount Type | Ceiling Mount |
|---|
Miscellaneous
| Compatibility | VESDA-E VEA series of detectors |
|---|
Attributes
| Compatibility | VESDA-E VEA series of detectors |
|---|---|
| Device Supported | Smoke Detector |
| Indoor or outdoor use | Indoor |
| Weight | 453.60g |
