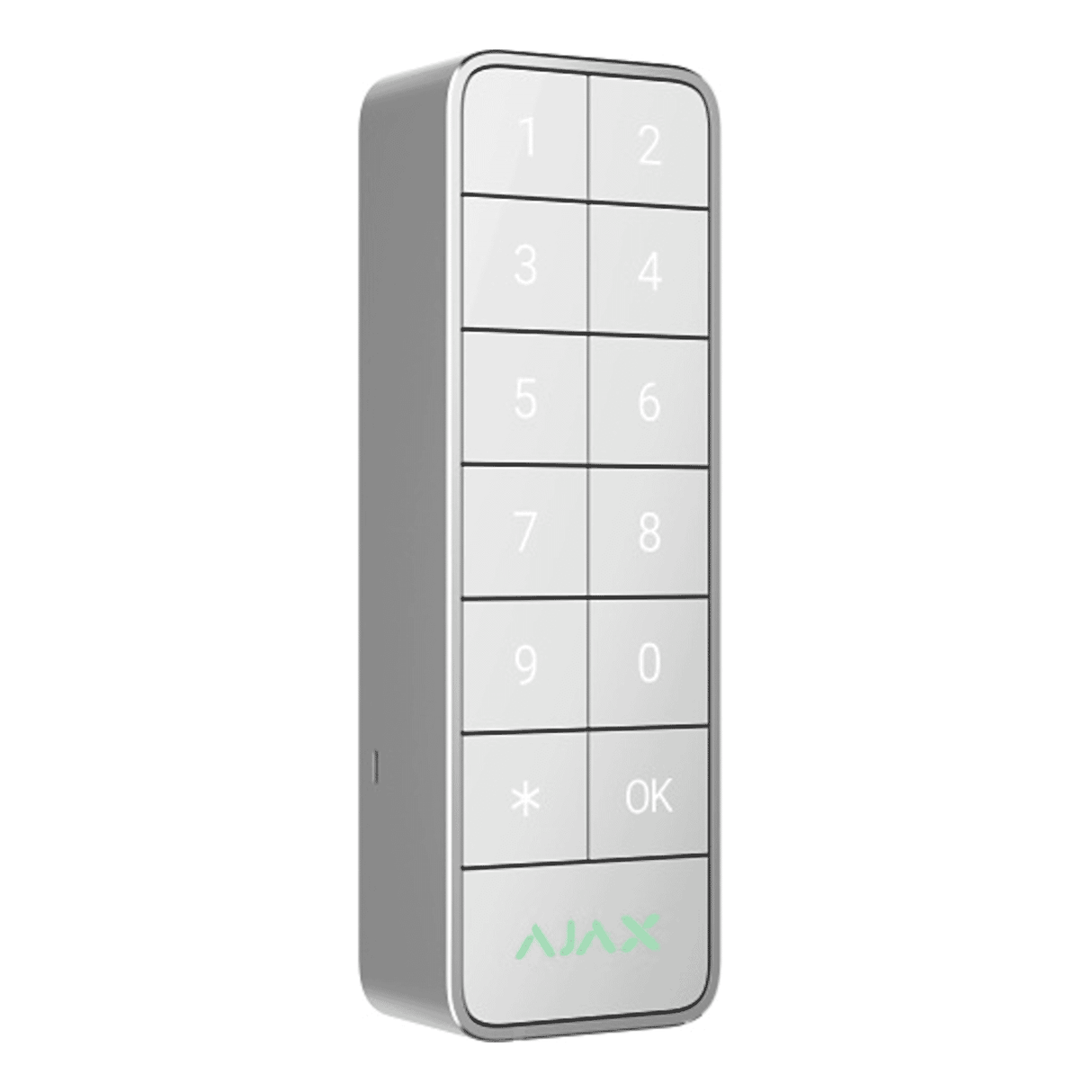

Ajax Superior KeyPad Outdoor Fibra, DESFire & BLE, IP66, EN50131 Grade 3 117759.285.WH ITM005405

Introduction to the Ajax Superior KeyPad Outdoor Fibra and its key features

Ajax Superior KeyPad Outdoor Fibrais a professional, wired outdoor access keypad engineered for demanding security installations. Built for the Ajax Fibra ecosystem, the unit combines multi‑factor authentication (DESFire contactless credentials, Bluetooth smartphone authorisation and numeric passcodes), a weather‑tough IP66/IK08 enclosure and compliance with EN 50131 Grade 3. That combination makes it suitable for commercial premises, high‑security residential sites and systems integrators who require reliable, tamper‑resistant access control at external entry points.

Detailed description of specifications and benefits

The Superior KeyPad Outdoor Fibra is designed to be both robust and flexible. Below are the core technical specifications and the practical benefits they deliver:

• Communication:Fibra wired two‑way protocol — stable, low‑latency connection to Ajax hubs and other Fibra devices.
• Authentication methods:DESFire (13.56 MHz EV1/EV2/EV3) contactless tags and keyfobs, BLE smartphone authorisation and numeric passcodes.
• Bluetooth:BLE 4.2+ with support through Ajax mobile apps for iOS and Android for convenient smartphone access.
• Power supply:Operates from the Fibra line at 7–30 V DC (nominal 24 V); typical current draw ~25 mA at 24 V (~0.6 W).
• Environmental ratings:IP66 ingress protection and IK08 impact resistance; operational temperature −25 °C to +60 °C; up to 80% non‑condensing humidity.
• Form factor:Compact dimensions (137 × 45 × 27 mm) and lightweight (~160 g) for unobtrusive mounting near entrances.
• User capacity:Up to 50 personal codes and up to 50 unregistered or temporary codes (hub‑dependent limits).
• Standards:EN 50131 (Grade 3) — professional grade for high‑security applications.

• Multi‑method authentication:Support for DESFire EVx ensures modern, secure contactless credential handling — more resistant to cloning than legacy RFID. Combined with BLE and passcodes, the keypad allows layered authentication and flexible access workflows.
• Weather and vandal resistance:IP66 and IK08 ratings mean the device withstands rain, dust and moderate impact — essential for external mounting in exposed locations.
• Professional‑grade security:EN 50131 Grade 3 compliance signals suitability for high‑risk sites (e.g., government buildings, banks, critical infrastructure) where stricter requirements apply.
• Installer‑friendly features:The Fibra two‑way wired protocol simplifies reliable communication and remote configuration via Ajax management tools. Anti‑tamper protection and SmartBracket mounting with screw provide additional security against tampering.
• Flexible access control:Personal, duress, temporary and unregistered codes plus single‑button automation scenarios let administrators tailor entry behaviour to operational needs.

Use cases and scenarios where the product excels

The Ajax Superior KeyPad Outdoor Fibra is purpose‑built for places where durability, security and flexible authentication converge. Typical scenarios include:

• Securing employee and contractor entry points where weatherproofing and reliable operation are required. The keypad allows employees to use badges, smartphones or codes depending on company policy.

• Properties demanding Grade 3 security can benefit from DESFire and encrypted BLE authorisations so residents and approved visitors gain controlled access without exposing mechanical locks to the elements.

• Loading bays, plant rooms and perimeter doors often need rugged access control hardware. The IP66/IK08 enclosure survives harsh outdoor conditions and moderate impacts while preserving reliable authentication.

• Where regulatory or insurance requirements demand certified systems, EN 50131 Grade 3 compliance is an important differentiator for perimeter and external door access control.

Comparisons with similar products in the market

When evaluating outdoor keypads, installers and buyers typically weigh connectivity (wired vs wireless), authentication methods, environmental durability and security certifications. The Ajax Superior KeyPad Outdoor Fibra positions itself strongly in several of these categories:

• Wired (Fibra) installations provide consistently low latency and immunity to RF interference or battery drain issues common in wireless devices. For campuses or facilities with existing cabling infrastructure, Fibra is a more dependable option for mission‑critical access points.
• Wireless keypads are easier to retrofit but may require frequent battery changes and can be more vulnerable to jamming or RF limitations in congested environments.

• Support for DESFire EV1/EV2/EV3 places the Ajax keypad ahead of systems relying on older, less secure tags. DESFire offers enhanced anti‑cloning and encryption features, making it preferable for high‑security deployments.

• IP66 and IK08 ratings make this keypad comparable to other premium outdoor access devices. What sets it apart for regulated projects is its EN 50131 Grade 3 compliance — not all outdoor readers meet this standard.

• Integrated BLE smartphone support alongside DESFire and passcodes gives more flexible operational modes than readers limited to one authentication type. Remote configuration via Fibra and compatibility with Ajax automation scenarios simplify installation and management compared with one‑trick readers.

Considerations and practical notes for installation

To get the best performance and longevity from the keypad, follow these practical guidelines:

• Adhere to Ajax Fibra planning tools and wiring topologies — maximum wired run and hub capacity are topology dependent.
• Use correct sealing and cable entry practices on external installations to preserve IP66 integrity and prevent water ingress around mounting points.
• Disable power before wiring and follow local electrical regulations and standards for access control systems; consider surge protection where appropriate for external devices.
• Confirm limits for user codes and unregistered codes with the chosen Ajax hub; larger projects may require hub models that support higher user capacity.

Conclusion: Why this product is a great choice

The Ajax Superior KeyPad Outdoor Fibra combines several attributes that make it an excellent choice for professional access control projects: multi‑method authentication (DESFire, BLE and passcodes), a rugged IP66/IK08 outdoor enclosure, and EN 50131 Grade 3 compliance for high‑security requirements. For system integrators and security managers who need reliable wired performance, flexible authentication workflows and reduced maintenance demands in outdoor settings, this keypad offers a compelling balance of security, durability and installer‑friendly features.

Suggested retail pricing for reference is approximately 239.00 (check local distributors for current pricing and availability). Warranty terms are vendor dependent — confirm support and warranty arrangements with your supplier or installer prior to purchase.

In summary, if your project requires a professional, durable and secure outdoor keypad that supports modern contactless credentials, smartphone authorisation and robust wired communication, the Ajax Superior KeyPad Outdoor Fibra is a strong candidate to consider.
