Bosch F.01U.325.048 desktop call station, Grey

Free Delivery
£ 1,101 42
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

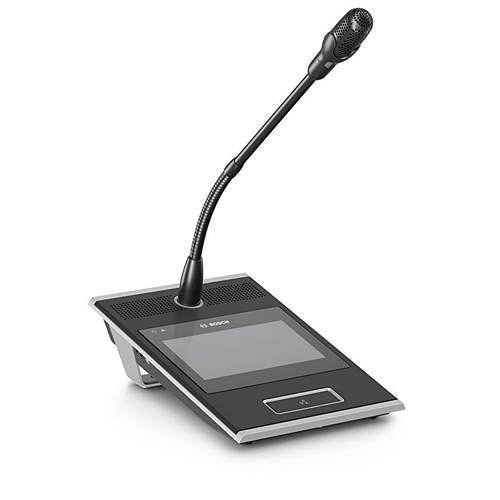

Bosch F.01U.325.048 is a desktop call station from the PRAESENSA range.

This call station for use in PRAESENSA Public Address and Voice Alarm systems is easy to install and intuitive to operate because of its touch screen LCD, providing clear user feedback about setting up a call and monitoring its progress, or controlling back ground music. The call station allows for positioning without much effort, because it only requires a connection to an OMNEO IP‑network with Power over Ethernet (PoE) for communication and power supply combined. It can be configured for use as business call station, but also as emergency call station.

The stylish design incorporates a supervised microphone, an internal monitor loudspeaker and a socket to insert a local audio source for background music. The 4.3" high‑resolution full‑color capacitive touch screen gives the operator optimum control and feedback at all times. Every call station must have at least one PRA-CSE call station extension for zone selection, with a maximum of four extensions.

Key features

  • Desktop housing with gooseneck microphone
  • Housing fits surface‑mounting or flush‑mounting
  • 4.3" full‑color capacitive touch screen
  • Graphical user interface for optimum user guidance and feedback
  • Status and fault indicators for voice alarm purposes

If you are matching this to an existing installation, work from the F.01U.325.048 part number rather than the description.

£ 1,101 42
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£1,101.42 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Bosch
Manufacturer Part Number
F.01U.325.048
Product Series
PRAESENSA
Product Type
Call Station
Audio
Maximum Frequency Response
14kHz
Minimum Frequency Response
100Hz
General information
Application/Usage
Alarm System, Public Address System
Microphone
Microphone Technology
Condenser (Electret)
Microphone Type
Gooseneck
Miscellaneous
Package Contents
1 x Desktop LCD call station 1 x Bracket (attached to bottom) 1 x Connector cover (attached to bottom) 1 x Quick Installation Guide 1 x Safety information
Physical characteristics
Colour
Grey
Depth
18.90cm
Height
6.20cm
Material
Plastic, Zamak
Width
13.00cm
Power description
Power Source
PoE (Power over Ethernet)
Technical information
Connectivity Technology
Wired
Host Interface
Ethernet
Polar Pattern
Uni-directional
Attributes
Package Contents
1 x Desktop LCD call station 1 x Bracket (attached to bottom) 1 x Connector cover (attached to bottom) 1 x Quick Installation Guide 1 x Safety information
Power Source
PoE (Power over Ethernet)

Specifications

Brand Name Bosch
Manufacturer Part Number F.01U.325.048
Product Series PRAESENSA
Product Type Call Station

Audio

Maximum Frequency Response 14kHz
Minimum Frequency Response 100Hz

General information

Application/Usage Alarm System, Public Address System

Microphone

Microphone Technology Condenser (Electret)
Microphone Type Gooseneck

Miscellaneous

Package Contents 1 x Desktop LCD call station 1 x Bracket (attached to bottom) 1 x Connector cover (attached to bottom) 1 x Quick Installation Guide 1 x Safety information

Physical characteristics

Colour Grey
Depth 18.90cm
Height 6.20cm
Material Plastic, Zamak
Width 13.00cm

Power description

Power Source PoE (Power over Ethernet)

Technical information

Connectivity Technology Wired
Host Interface Ethernet
Polar Pattern Uni-directional

Attributes

Package Contents 1 x Desktop LCD call station 1 x Bracket (attached to bottom) 1 x Connector cover (attached to bottom) 1 x Quick Installation Guide 1 x Safety information
Power Source PoE (Power over Ethernet)

Bosch F.01U.325.048 desktop call station

Bosch F.01U.325.048 desktop call station, Grey

Who this is for

For the installer — this is the desktop call station supplied under Bosch part number F.01U.325.048. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a desktop call station made by Bosch. The part number F.01U.325.048 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this desktop call station is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact desktop call station I have been quoted? Check the manufacturer part number F.01U.325.048 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against F.01U.325.048 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Bosch F.01U.325.048 desktop call station
Bosch

Bosch F.01U.325.048 desktop call station, Grey

£1,101.42

Please note: this is a non-returnable item (excluding faulty goods)

Bosch F.01U.325.048 is a desktop call station from the PRAESENSA range.

This call station for use in PRAESENSA Public Address and Voice Alarm systems is easy to install and intuitive to operate because of its touch screen LCD, providing clear user feedback about setting up a call and monitoring its progress, or controlling back ground music. The call station allows for positioning without much effort, because it only requires a connection to an OMNEO IP‑network with Power over Ethernet (PoE) for communication and power supply combined. It can be configured for use as business call station, but also as emergency call station.

The stylish design incorporates a supervised microphone, an internal monitor loudspeaker and a socket to insert a local audio source for background music. The 4.3" high‑resolution full‑color capacitive touch screen gives the operator optimum control and feedback at all times. Every call station must have at least one PRA-CSE call station extension for zone selection, with a maximum of four extensions.

Key features

If you are matching this to an existing installation, work from the F.01U.325.048 part number rather than the description.
