FireClass 514.800.805 addressable indoor callpoint

Visit Fire & Safety Equipment
£ 28 73
(Incl. VAT)

About this product

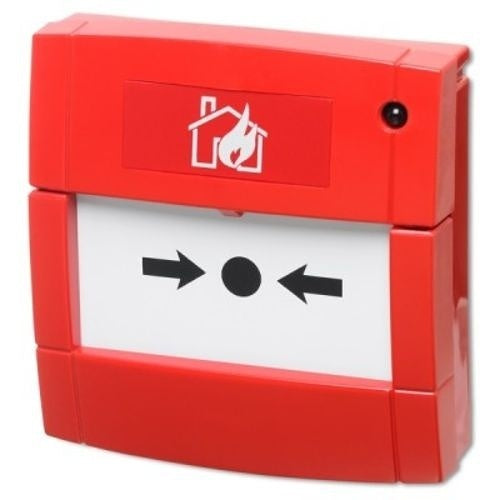

FireClass 514.800.805 is an addressable indoor callpoint.

A comprehensive range of call points for use with FireClass addressable systems, using the robust and reliable FireClass open protocol. All the callpoints are designed to enable an alarm signal to be given by a plastic resettable element, which means that the call point can be easily reset after it has been activated. Any change in the status of the switch is immediately communicated to the FireClass Control and Indicating Equipment (CIE).

All call points have an integral short-circuit isolator for monitoring the addressable loop wiring. The integral LED indicator is normally off. When the frangible element is broken, an alarm is registered and the LED will illuminate red.

If a section of the loop wiring adjacent to the call point is shorted, the built-in short-circuit isolator trips, isolating the shorted section and the LED is illuminated yellow. The status remains until the short is removed. If required, an optional transparent hinged cover may be installed to guard against accidental operation.

Both indoor and outdoor versions are available.

Key features

  • Integral short circuit isolator
  • Dual color LED indication
  • EN54-11 Certification
  • Compact, modern styling
  • Test Key for Fast Testing
  • IP67 Ingress Protection models for external applications

If you are matching this to an existing installation, work from the 514.800.805 part number rather than the description.

£ 28 73
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£28.73 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
FireClass
Manufacturer Part Number
514.800.805
Product Type
Emergency Communication System
Miscellaneous
Compatibility
Fast Testing, FC420CP-I, Monitoring Addressable loop wiring
Physical characteristics
Depth
45.00mm
Form Factor
Indoor
Height
93.00mm
Material
Plastic
Weight
110.00g
Width
89.00mm
Technical information
Number of Contacts
1000
Attributes
Compatibility
Fast Testing, FC420CP-I, Monitoring Addressable loop wiring
Weight
110.00g
Specifications
Miscellaneous
Physical characteristics
Technical information
Attributes

Specifications

Brand Name FireClass
Manufacturer Part Number 514.800.805
Product Type Emergency Communication System

Miscellaneous

Compatibility Fast Testing, FC420CP-I, Monitoring Addressable loop wiring

Physical characteristics

Depth 45.00mm
Form Factor Indoor
Height 93.00mm
Material Plastic
Weight 110.00g
Width 89.00mm

Technical information

Number of Contacts 1000

Attributes

Compatibility Fast Testing, FC420CP-I, Monitoring Addressable loop wiring
Weight 110.00g

FireClass 514.800.805 addressable indoor callpoint

FireClass 514.800.805 addressable indoor callpoint

Who this is for

For the installer — this is the addressable indoor callpoint supplied under FireClass part number 514.800.805. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an addressable indoor callpoint made by FireClass. The part number 514.800.805 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this addressable indoor callpoint is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact addressable indoor callpoint I have been quoted? Check the manufacturer part number 514.800.805 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against 514.800.805 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

FireClass 514.800.805 addressable indoor callpoint
FireClass

FireClass 514.800.805 addressable indoor callpoint

£28.73

FireClass 514.800.805 is an addressable indoor callpoint.

A comprehensive range of call points for use with FireClass addressable systems, using the robust and reliable FireClass open protocol. All the callpoints are designed to enable an alarm signal to be given by a plastic resettable element, which means that the call point can be easily reset after it has been activated. Any change in the status of the switch is immediately communicated to the FireClass Control and Indicating Equipment (CIE).

All call points have an integral short-circuit isolator for monitoring the addressable loop wiring. The integral LED indicator is normally off. When the frangible element is broken, an alarm is registered and the LED will illuminate red.

If a section of the loop wiring adjacent to the call point is shorted, the built-in short-circuit isolator trips, isolating the shorted section and the LED is illuminated yellow. The status remains until the short is removed. If required, an optional transparent hinged cover may be installed to guard against accidental operation.

Both indoor and outdoor versions are available.

Key features

If you are matching this to an existing installation, work from the 514.800.805 part number rather than the description.
