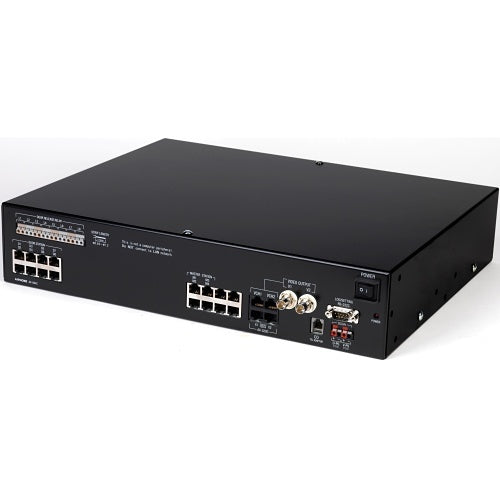

Aiphone AX-084C central exchange unit, Desk, Rack, Surface, Wall Mount

Free Delivery
£ 1,189 06
(Incl. VAT) RRP: £1,426.87
Save £237.81

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Aiphone AX-084C is a central exchange unit from the AX range.

The AX-084C is a Central Exchange Unit for the AX Integrated Audio & Video Security system. Audio/ Video and/or Audio-only Master or Door Stations connect directly to this unit via homerun CAT-5e wiring and RJ45 jacks. The AX-084C supports up to 4 Master Stations and up to 8 Door/Sub stations.

The AX-084C can be expanded in increments of 32 for up to 104 Door/ Sub stations with the use of AX-320C add-on CEU's. The CEU handles the calling and communication signals for the system, as well as providing selective door release outputs, video outputs, DVR trigger outputs, and CO line transfer output. System set-up and a variety of functions are programmed in the CEU with the use of the supplied software.

Power is applied directly to the CEU via two PS-2420UL power supplies. The serial connection is for uploading the system programming, for raw RS232 data output, or for system monitoring via the supplied program. The unit can be surface mounted to a wall, desk mounted, or mounted in a standard 19" EIA rack using the supplied mounting brackets.

Key features

  • Management center for 8 street panels and 4 master stations
  • Black metal case
  • 24V Power supply with 2 PS2420DM (1 for audio and 1 for video)
  • RJ45 Wiring with CAT6 cable
  • 2 BNC 525-line NTSC composite video outputs for displaying the video signal from the street panels on a monitor
  • 2 RJ45 outputs for triggering a digital recorder
  • 2 RJ45 outputs for connection to AX320C control panels (32 street panels)
  • 1 RS232 (serial) input for PC programming
  • 1 RJ11 Output for connection with a telephone interface (audio optional)
  • 8 RJ45 Inputs for connection to 8 street panels

If you are matching this to an existing installation, work from the AX-084C part number rather than the description.

£ 1,189 06
RRP: £1,426.87 Save £237.81
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£1,189.06 Incl. VAT £1,426.87
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Aiphone
Manufacturer Part Number
AX-084C
Product Series
AX
Product Type
Intercom Central Exchange Unit
General information
Application/Usage
Audio/Video System, Door Station, Security System, Signaling System
Packaged Quantity
1
Technical information
Connectivity Technology
Wired
Number of Sub Stations Supported
104
Physical characteristics
Colour
Black
Depth
335.00mm
Form Factor
Desk Mount, Rack Mount, Surface Mount, Wall Mount
Height
88.00mm
Material
Metal
Weight
4.69kg
Width
480.00mm
Power description
Input Voltage
24V
Power Source
AC Power
Product information
Mount Type
Rack Mount
Miscellaneous
Compatibility
Aiphone AX Series Integratable Audio/Video Security System
Indoor or outdoor use
Indoor
Package Contents
AX-084C Intercom Central Exchange Unit Mounting Screws (For 19-inch Rack Mounting) USB to Serial Programming Cable With Driver Rack/Wall Mounting Brackets Mounting Screws , QuikStart Guide Installation CD
Attributes
Compatibility
Aiphone AX Series Integratable Audio/Video Security System
Input Voltage
24V
Package Contents
AX-084C Intercom Central Exchange Unit Mounting Screws (For 19-inch Rack Mounting) USB to Serial Programming Cable With Driver Rack/Wall Mounting Brackets Mounting Screws , QuikStart Guide Installation CD
Power Source
AC Power
Weight
4.69kg
Specifications
General information
Technical information
Physical characteristics
Power description
Product information
Miscellaneous
Attributes

Specifications

Brand Name Aiphone
Manufacturer Part Number AX-084C
Product Series AX
Product Type Intercom Central Exchange Unit

General information

Application/Usage Audio/Video System, Door Station, Security System, Signaling System
Packaged Quantity 1

Technical information

Connectivity Technology Wired
Number of Sub Stations Supported 104

Physical characteristics

Colour Black
Depth 335.00mm
Form Factor Desk Mount, Rack Mount, Surface Mount, Wall Mount
Height 88.00mm
Material Metal
Weight 4.69kg
Width 480.00mm

Power description

Input Voltage 24V
Power Source AC Power

Product information

Mount Type Rack Mount

Miscellaneous

Compatibility Aiphone AX Series Integratable Audio/Video Security System
Indoor or outdoor use Indoor
Package Contents AX-084C Intercom Central Exchange Unit Mounting Screws (For 19-inch Rack Mounting) USB to Serial Programming Cable With Driver Rack/Wall Mounting Brackets Mounting Screws , QuikStart Guide Installation CD

Attributes

Compatibility Aiphone AX Series Integratable Audio/Video Security System
Input Voltage 24V
Package Contents AX-084C Intercom Central Exchange Unit Mounting Screws (For 19-inch Rack Mounting) USB to Serial Programming Cable With Driver Rack/Wall Mounting Brackets Mounting Screws , QuikStart Guide Installation CD
Power Source AC Power
Weight 4.69kg

Aiphone AX-084C central exchange unit

Aiphone AX-084C central exchange unit, Desk, Rack, Surface, Wall Mount

Who this is for

For the installer — this is the central exchange unit supplied under Aiphone part number AX-084C. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a central exchange unit made by Aiphone. The part number AX-084C is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this central exchange unit is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact central exchange unit I have been quoted? Check the manufacturer part number AX-084C against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against AX-084C answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
