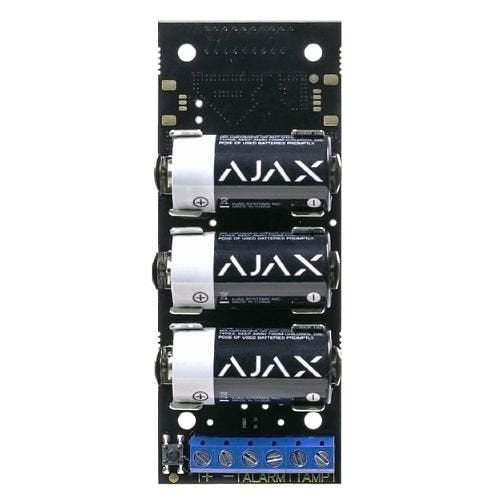

Ajax Systems 56211.18.NC1 transmitter

Visit Ajax Security Systems
£ 64 11
(Incl. VAT)

About this product

Ajax Systems 56211.18.NC1 is a transmitter.

Transmitter is a module for connecting third-party detectors to Ajax security system. It transmits alarms and notifies when the tamper of the third-party detector triggers. The module is equipped with its own accelerometer, which protects it from dismounting.

It runs on batteries and can supply power to the connected detector. Transmitter operates within the Ajax security system, by connecting via the protected Jeweller protocol to the hub. It is not intended to use the device in third-party systems.

The communication range can be up to 1,600m provided that there are no obstacles and the case is removed. Transmitter is set up via a mobile application for iOS and Android based smartphones. Not compatible with the uartBridge or ocBridge Plus.

Key features

  • Connecting a device with a NC/NO contact type
  • 3.3 V⎓ Power supply for a connected wired device
  • Quick pairing with the security system via QR code
  • Supporting pulse or bistable operation mode
  • Selecting one of eight types of wired device events
  • Remote control and configuring via the Ajax apps
£ 64 11
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£64.11 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Ajax Systems
Manufacturer Part Number
56211.18.NC1
Product Type
Wireless Transmitter
Certifications
Certifications & Standards
EN 50131 (Grade 2), PD 6662 2017
Physical characteristics
Depth
22.00mm
Height
100.00mm
Width
39.00mm
Power description
Input Voltage
3.3V
Power Source
Battery
Miscellaneous
Additional Information
Module for integrating a third-party wired detector or device into an Ajax security system.
Compatibility
All Ajax hubs, All Ajax Radio Signal Range Extenders, Any detector or device with a NC/NO contact type
Package Contents
Transmitter Jeweller, 3 x CR123A battery, Double-sided tape, Quick Start Guide
Attributes
Compatibility
All Ajax hubs, All Ajax Radio Signal Range Extenders, Any detector or device with a NC/NO contact type
Input Voltage
3.3V
Power Source
Battery
Specifications
Certifications
Physical characteristics
Power description
Miscellaneous
Attributes

Specifications

Brand Name Ajax Systems
Manufacturer Part Number 56211.18.NC1
Product Type Wireless Transmitter

Certifications

Certifications & Standards EN 50131 (Grade 2), PD 6662 2017

Physical characteristics

Depth 22.00mm
Height 100.00mm
Width 39.00mm

Power description

Input Voltage 3.3V
Power Source Battery

Miscellaneous

Additional Information Module for integrating a third-party wired detector or device into an Ajax security system.
Compatibility All Ajax hubs, All Ajax Radio Signal Range Extenders, Any detector or device with a NC/NO contact type
Package Contents Transmitter Jeweller, 3 x CR123A battery, Double-sided tape, Quick Start Guide

Attributes

Compatibility All Ajax hubs, All Ajax Radio Signal Range Extenders, Any detector or device with a NC/NO contact type
Input Voltage 3.3V
Power Source Battery

Ajax Systems 56211.18.NC1 transmitter

Ajax Systems 56211.18.NC1 transmitter

Who this is for

For the installer — this is the transmitter supplied under Ajax Systems part number 56211.18.NC1. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a transmitter made by Ajax Systems. The part number 56211.18.NC1 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this transmitter is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact transmitter I have been quoted? Check the manufacturer part number 56211.18.NC1 against your quote. That code is the only reliable identity for this item.

Can you check compatibility for us? We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against 56211.18.NC1 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
