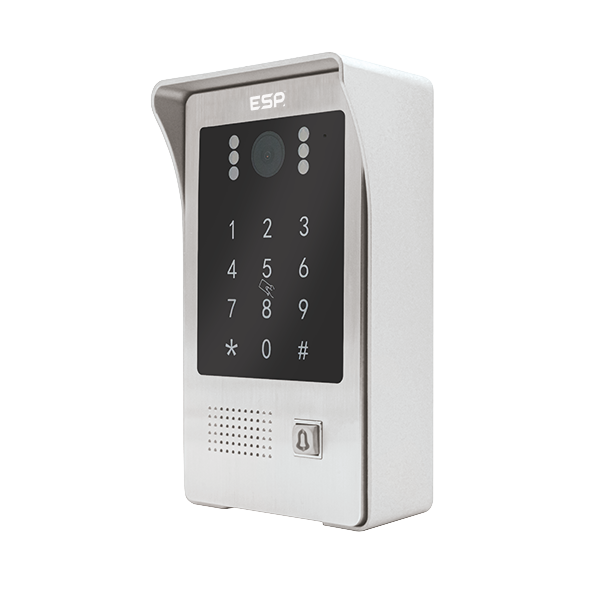

Aperta A1IPVDS IP PoE IP65 Singleway Outdoor Station

Scale

This is the door panel for one address — a house, or a single flat. If you need visitors to pick from a list of flats, that is the multi-way A1IPDSM1, which calls up to 200.

Entry without a call

The occupant can let themselves in without picking up the handset — a fob held to the panel does it. Ten are supplied. The reader works at 13.56 MHz and holds up to 200 fobs, with more in packs of ten as the A1IP10. A keypad is built in as well.

The call

A caller presses once. You can then see and speak to them: the camera covers 110° horizontally, so someone standing to one side of the panel is still in shot. The audio is full duplex with noise suppression and echo cancellation, so you can both talk at once.

Outdoors

It goes on an outside wall, so the case is aluminium alloy, sealed to IP65 against rain and dust and rated IK10 for impact. Surface or flush mounted, 150 × 84 × 33 mm.
