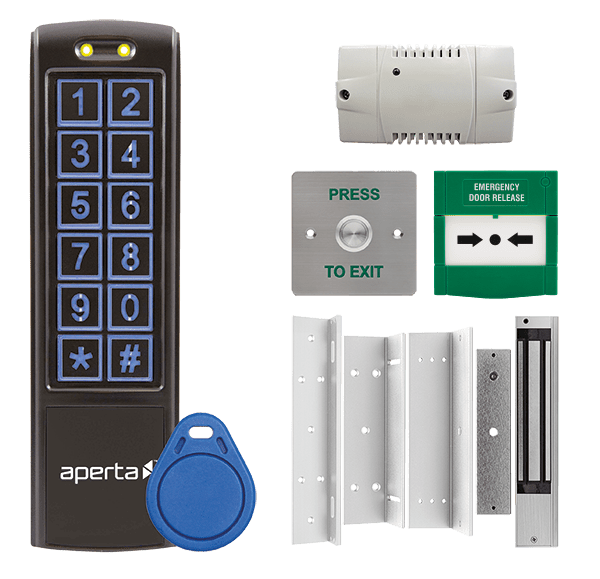

Aperta EZT3KB Single Door Internal Keypad Kit, Black, Green
About this product
The Aperta EZT3KB is a Single Door Internal Keypad Kit, Black, Green. Featuring a black finish and a green finish, it is built for dependable professional installation.
Key Features
- Backlit keypad
- Supplied with 10 proximity tags
- Aluminium Alloy Keypad
- Power supply unit provided
- A black finish
In Detail
ESP's door entry system equipment lets occupants see and control who reaches the door, a practical security and convenience upgrade for homes, offices and communal entrances.
Designed for simple two-core or IP installation, the range is straightforward to commission and expand, with consistent ESP componentry that works together reliably.
The Aperta EZT3KB is a practical choice wherever a reliable door entry system is required, supplied with full WME trade support and free UK delivery on orders over £129.
Technical Specifications
| Brand | Aperta |
| Product code | EZT3KB |
| Dimensions (mm) | 150 x 44 x 24 |
| Colour | Black |
| Materials | ABS |
| Mounting | Surface |
| Supply Voltage (V AC) | 100 - 230 |
| Fob Reader Operating Distance (mm) | <50 |
| Type | Configurable Normally Open or |
| Status Indication | Red, Green, and Amber LEDs |
| Lock output | 12V DC @ 1.5A |
| Operating Voltage (V DC) | 12 - 24 |
| Operating Current (mA) | 110 |
| Unlatched Relay Time | 1 - 99 Seconds |
| Maximum Switchable Load | 30V @ 4A |
| Lock outputs | 2 |
| PIN Length | 2 - 6 Digits |
| Relay Types | Normally Open & Normally Closed; |
| Finish | Brushed Steel |
| Relay Voltage | 125-250V |
| Relay Rating | 3A @125-250V AC |
| Contact Type | 2 x SPST (Normally Open & Normally |
| Operating Temperature (°C) | -20 to +55 |
| Component 5 | Quantity |
| Z and L Brackets | 1 |
| Maximum Holding Force (Kg) | 250 |
| Warranty Years | 2 |
| Weight | 3.872 kg |
| GTIN | 5060654466725 |
| Commodity Code | 8537109199 |
