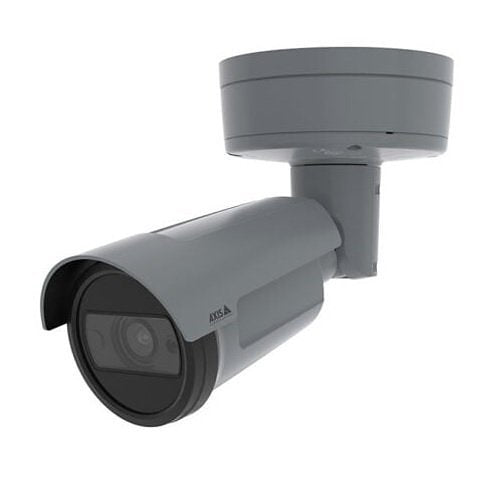

Axis Communications 02534-001 IP bullet camera, 8MP

Free Delivery
£ 3,440 42
(Incl. VAT)

About this product

Axis Communications 02534-001 is an IP bullet camera from the P14 range.

This explosion-protected camera is designed and certified for Zone and Division 2 according to international standards (ATEX, IECEx, cULus). Built on ARTPEC-8, it includes a deep learning processing unit (DLPU) enabling advanced features and powerful analytics that run on the edge. Ideal for health and safety applications as well as operational efficiency, you can gain a deeper understanding and awareness by creating an advanced data-driven sensory network that can be integrated with existing sensors and systems.

Including Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS P1468-XLE ensures sharp, detailed 4K images under any light conditions. Furthermore, this impact-resistant, outdoor-ready camera includes built-in cybersecurity features.

Key features

  • Certified for Zone and Division 2
  • Deep learning-based analytics
  • Detailed images in any light conditions
  • Excellent video quality with 4K at 60 fps
  • Impact- and weather-resistant

If you are matching this to an existing installation, work from the 02534-001 part number rather than the description.

£ 3,440 42
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£3,440.42 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Axis Communications
Manufacturer Part Number
02534-001
Product Series
P14
Product Type
Explosion-protected cameras
General information
Supported Network Protocols
IPv6
Technical information
Aperture
f/1.6-2.9
Connectivity Technology
Wired
Effective resolution
8MP
Field of View
Horizontal, Vertical
Lens Type
Varifocal
Maximum Aperture
f/1.6
Maximum Frame Rate
60fps
Minimum Focal Length
6.20mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
2.0x
Video Formats
H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, H.265 Baseline Profile, H.265 High Profile, H.265 Main Profile, Motion JPEG, Zipstream
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
40.00m
Certifications
Ingress protection
IP66, IP67
Display & graphics
Maximum video resolution
3840 x 2160
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-40°C
Operating Humidity
100%
Exposure
Longest Shutter Speed
2 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/66500 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
6.2-12.9mm
Lens Included
Yes
Maximum Focal Length
12.90mm
Minimum Aperture
f/2.9
Memory
Memory Card Supported
Yes
Network & communication
Remote Management
Yes
Physical characteristics
Colour
Black
Durability
Impact Resistant, Weather Resistant
Form Factor
Bullet
Weight
1.30kg
Power description
Input Voltage
28V DC
Maximum Power Consumption
13.00W
Power over Ethernet (PoE)
Yes
Product information
Diameter
132.00mm
Mount Type
Conduit Box Mount, Corner Mount, Pole Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Environmental certification
IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 (Method B), NEMA 250 Type 4X
Environmental status
Yes
Features
Audio Detection, Built-in IR LED, Day/Night, Human Detection, Motion Detection, PTZ, SD Card Local Storage, Shock Detection, Vehicle Detection, Video Management System, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Input Voltage
28V DC
Weight
1.30kg

Specifications

Brand Name Axis Communications
Manufacturer Part Number 02534-001
Product Series P14
Product Type Explosion-protected cameras

General information

Supported Network Protocols IPv6

Technical information

Aperture f/1.6-2.9
Connectivity Technology Wired
Effective resolution 8MP
Field of View Horizontal, Vertical
Lens Type Varifocal
Maximum Aperture f/1.6
Maximum Frame Rate 60fps
Minimum Focal Length 6.20mm
Night Vision Yes
Night Vision Type Infrared (IR)
Optical Zoom 2.0x
Video Formats H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, H.265 Baseline Profile, H.265 High Profile, H.265 Main Profile, Motion JPEG, Zipstream
Video Resolution 1280 x 720
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 40.00m

Certifications

Ingress protection IP66, IP67

Display & graphics

Maximum video resolution 3840 x 2160

Environmental conditions

Maximum Operating Temperature 60°C
Minimum Operating Temperature -40°C
Operating Humidity 100%

Exposure

Longest Shutter Speed 2 Second
Minimum Illumination 0.0000lux
Shortest Shutter Speed 1/66500 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 6.2-12.9mm
Lens Included Yes
Maximum Focal Length 12.90mm
Minimum Aperture f/2.9

Memory

Memory Card Supported Yes

Network & communication

Remote Management Yes

Physical characteristics

Colour Black
Durability Impact Resistant, Weather Resistant
Form Factor Bullet
Weight 1.30kg

Power description

Input Voltage 28V DC
Maximum Power Consumption 13.00W
Power over Ethernet (PoE) Yes

Product information

Diameter 132.00mm
Mount Type Conduit Box Mount, Corner Mount, Pole Mount

Storage

Recording Formats H.264, H.265 / HEVC
Storage Type SD Card

Video

Maximum Resolution 1280 x 720

Miscellaneous

Environmental certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 (Method B), NEMA 250 Type 4X
Environmental status Yes
Features Audio Detection, Built-in IR LED, Day/Night, Human Detection, Motion Detection, PTZ, SD Card Local Storage, Shock Detection, Vehicle Detection, Video Management System, Wide Dynamic Range
Impact protection IK10
Indoor or outdoor use Outdoor

Attributes

Input Voltage 28V DC
Weight 1.30kg

Axis Communications 02534-001 IP bullet camera

Axis Communications 02534-001 IP bullet camera, 8MP

Who this is for

For the installer — this is the IP bullet camera supplied under Axis Communications part number 02534-001. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an IP bullet camera made by Axis Communications. The part number 02534-001 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this IP bullet camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact IP bullet camera I have been quoted? Check the manufacturer part number 02534-001 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against 02534-001 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
