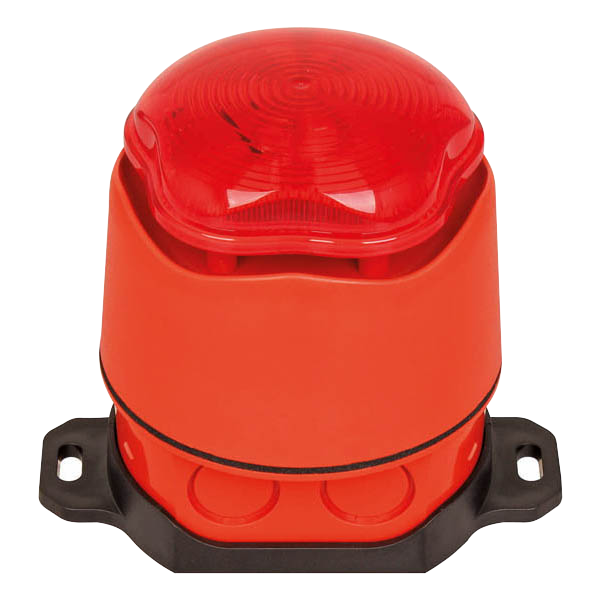

Banshee CB-1RIP66 Waterproof Sounder and Strobe
£
63
81
(Incl. VAT)
3 Years Warranty
Waterproof Sounder and Strobe
About this product
About this product
The Banshee CB-1RIP66 is a Waterproof Sounder and Strobe. Featuring a red finish, it is built for dependable professional installation.
Key Features
- Combined sounder & strobe
- Suitable for conventional 4-wire sounder circuits
- A red finish
- Genuine ESP sounder and strobe supplied by WME
- Backed by WME UK stock and trade support
-
Download
- CB-1RIP66 Tech Sheet
£
63
81
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø90 x 110
Colour
Red
Materials
Housing: ABS
LED colour
Red
Flash Rate
60/Minute
Warranty (Years)
3
Operating Voltage (V DC)
9 - 30
Cable Size (mm²)
0.28 - 2.5
Current Consumption (Sounder)(mA)
3 - 39
Current Consumption (Strobe)(mA)
12 (@12V DC), 16 (@24V DC)
Sound Output @ 1m (db)
88 - 110
Operating Temperature (°C)
-20 to +70
Relative Humidity Resistance (%)
93
Dimensions
Dimensions (mm)
ø90 x 110
Specifications
| Dimensions (mm) | ø90 x 110 |
|---|---|
| Colour | Red |
| Materials | Housing: ABS |
| LED colour | Red |
| Flash Rate | 60/Minute |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 9 - 30 |
| Cable Size (mm²) | 0.28 - 2.5 |
| Current Consumption (Sounder)(mA) | 3 - 39 |
| Current Consumption (Strobe)(mA) | 12 (@12V DC), 16 (@24V DC) |
| Sound Output @ 1m (db) | 88 - 110 |
| Operating Temperature (°C) | -20 to +70 |
| Relative Humidity Resistance (%) | 93 |
Dimensions
| Dimensions (mm) | ø90 x 110 |
|---|
Waterproof Sounder and Strobe features
Banshee CB-1RIP66 Waterproof Sounder and Strobe
