Beacon UDTAPLBMG Disabled Toilet Alarm Power Light & Buzzer Module, Grey
£
23
15
(Incl. VAT)
2 Years Warranty
Disabled Toilet Alarm Power Light & Buzzer Module, Grey
About this product
About this product

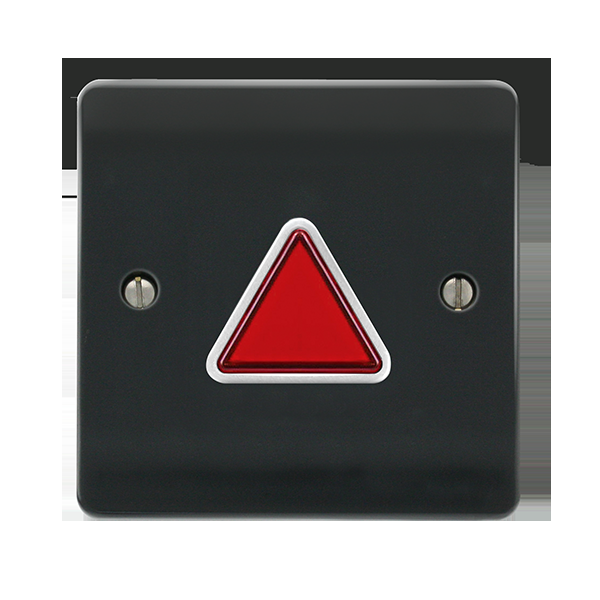

The Beacon UDTAPLBMG is a Disabled Toilet Alarm Power Light & Buzzer Module, Grey.
Key Features
- Operating Voltage (V AC): 100 - 230
- Number of Outputs: 2
- Materials: Anti-Microbial ABS
- Genuine Beacon light buzzer module supplied by WME
- Backed by WME UK stock and trade support
- Free UK delivery on orders over £129
-
Download
- UDTAPLBMG Tech Sheet
£
23
15
Price
Technical Details
Specifications
Dimensions (mm)
87 x 87 x 41
Plate Size
Single Gang
Colour
Grey
Light Reflectance Value (LRV)
32
Materials
Anti-Microbial ABS
Mounting
Surface or Flush (Surface Box Included)
Indication
LED illuminates in red when in alarm state
Buzzer Sound Level When Activated (db)
>80
Purpose
Activation and Reset Circuits
Warranty (Years)
2
Operating Voltage (V AC)
100 - 230
Maximum Cable Size (mm²)
1.5
Power Consumption (A)
0.2
Battery Backup
Yes
Input Type
Ground & 2 live circuits - X1 & X2
Activation Type
Energise with a Normally Open Clean Contact
Number of Outputs
2
Type
1 Switched Live sharing common ground
Rating
12V 500mA
Supplied
1 x Backbox, Installation Bolts, User Manual
Weight
0.248 kg
GTIN
5060654467777
Commodity Code
8531103000
Dimensions
Dimensions (mm)
87 x 87 x 41
Specifications
| Dimensions (mm) | 87 x 87 x 41 |
|---|---|
| Plate Size | Single Gang |
| Colour | Grey |
| Light Reflectance Value (LRV) | 32 |
| Materials | Anti-Microbial ABS |
| Mounting | Surface or Flush (Surface Box Included) |
| Indication | LED illuminates in red when in alarm state |
| Buzzer Sound Level When Activated (db) | >80 |
| Purpose | Activation and Reset Circuits |
| Warranty (Years) | 2 |
| Operating Voltage (V AC) | 100 - 230 |
| Maximum Cable Size (mm²) | 1.5 |
| Power Consumption (A) | 0.2 |
| Battery Backup | Yes |
| Input Type | Ground & 2 live circuits - X1 & X2 |
| Activation Type | Energise with a Normally Open Clean Contact |
| Number of Outputs | 2 |
| Type | 1 Switched Live sharing common ground |
| Rating | 12V 500mA |
| Supplied | 1 x Backbox, Installation Bolts, User Manual |
| Weight | 0.248 kg |
| GTIN | 5060654467777 |
| Commodity Code | 8531103000 |
Dimensions
| Dimensions (mm) | 87 x 87 x 41 |
|---|
