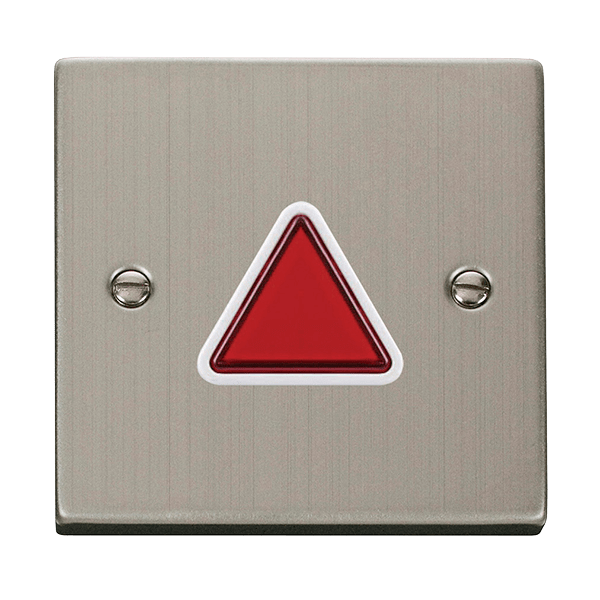

Beacon UDTAPLBMSS Disabled Toilet Alarm Power Light & Buzzer Module, Stainless Steel
£
36
59
(Incl. VAT)
2 Years Warranty
Assistance Alarm Power Light Buzzer Module
About this product
About this product
The Beacon UDTAPLBMSS is a Disabled Toilet Alarm Power Light & Buzzer Module, Stainless Steel.
Key Features
- Replacement power, light & buzzer module for UDTAKIT
- Clear alarm LED alert
- Genuine ESP disabled toilet alarm power light and buzzer module supplied by WME
- Backed by WME UK stock and trade support
- Free UK delivery on orders over £129
-
Download
- UDTAPLBMSS Tech Sheet
£
36
59
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
87 x 87 x 41
Plate Size
Single Gang
Colour
Grey
Materials
Stainless Steel (Grade 304)
Mounting
Surface or Flush (Surface Back Box Not Included)
Indication
LED illuminates in red when in alarm state
Buzzer Sound Level When Activated (db)
>80
Purpose
Activation and Reset Circuits
Warranty (Years)
2
Operating Voltage (V AC)
100 - 230
Maximum Cable Size (mm²)
1.5
Power Consumption (A)
0.2
Battery Backup
Yes
Input Type
Ground & 2 live circuits - X1 & X2
Activation Type
Energise with a Normally Open Clean Contact
Number of Outputs
2
Type
1 Switched Live sharing common ground
Rating
12V 500mA
Operating Temperature (°C)
-10 to +40
Supplied
User Manual
Additional Information
If mounting surface you will need UDTASMBSS Surface Mount Back Box.
Intermittantly When Battery Needs Replacing.
Module
Dimensions
Dimensions (mm)
87 x 87 x 41
Specifications
| Dimensions (mm) | 87 x 87 x 41 |
|---|---|
| Plate Size | Single Gang |
| Colour | Grey |
| Materials | Stainless Steel (Grade 304) |
| Mounting | Surface or Flush (Surface Back Box Not Included) |
| Indication | LED illuminates in red when in alarm state |
| Buzzer Sound Level When Activated (db) | >80 |
| Purpose | Activation and Reset Circuits |
| Warranty (Years) | 2 |
| Operating Voltage (V AC) | 100 - 230 |
| Maximum Cable Size (mm²) | 1.5 |
| Power Consumption (A) | 0.2 |
| Battery Backup | Yes |
| Input Type | Ground & 2 live circuits - X1 & X2 |
| Activation Type | Energise with a Normally Open Clean Contact |
| Number of Outputs | 2 |
| Type | 1 Switched Live sharing common ground |
| Rating | 12V 500mA |
| Operating Temperature (°C) | -10 to +40 |
| Supplied | User Manual |
| Additional Information | If mounting surface you will need UDTASMBSS Surface Mount Back Box. |
| Intermittantly When Battery Needs Replacing. | Module |
Dimensions
| Dimensions (mm) | 87 x 87 x 41 |
|---|
