BPT XTS/7IP WH WIFI xts monitor screen, White

Free Delivery
£ 627 65
(Incl. VAT) RRP: £753.18
Save £125.53

About this product

Please note: this is a non-returnable item (excluding faulty goods)

BPT XTS/7IP WH WIFI is a xts monitor screen from the XTS range.

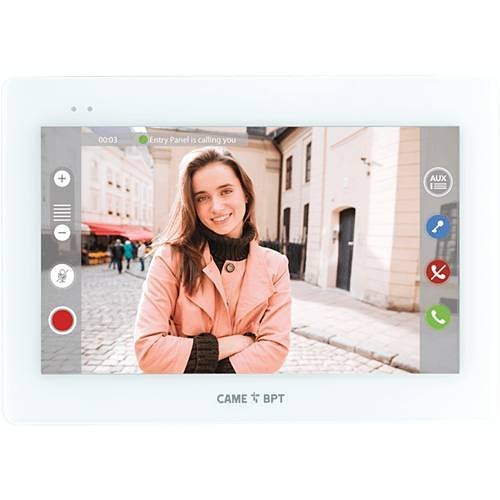

Full touch video intercom for IP360 system, 7" TFT touch-screen display, WiFi and Graphical User Interface - white. Surface mounted monitor with 7" TFT touch-screen display with Optical Bonding technology, integrated WiFi for remote calls on smartphones running the dedicated app. User interface for managing video intercom unctions, intercom calls, video-messaging, and text messaging.

It uses SIP protocol and G711 audio codec and H.264 video codec. RJ45 port for network, PoE or local connection. On-board web server for configuring and updating firmware.

It includes bracket for surface mounting on 503 box (horizontal) and Ø 60 mm round box. Ready for flush mounting with dedicated box. Compatible with IP360 system.

Key features

  • Full-duplex audio speakerphone
  • 7" TFT display Full touch-screen with Optical Bonding anti-glare technology for enhanced readability in brightly lit settings
  • RJ45 port for directly connecting to the Ethernet
  • On-board WiFi for remotely controlling calls
  • Local or PoE (Powered over Ethernet) power supply
  • Customizable user interface with UI Creator software
  • Up to 19 mobile devices for managing the system from any remote location
  • Configurable quick controls (default main entrance door-opener)
  • List of AUX commands for activating auxiliary functions
  • "Panic" function for emergency calls to the porter (if present on the system)

If you are matching this to an existing installation, work from the XTS/7IP WH WIFI part number rather than the description.

£ 627 65
RRP: £753.18 Save £125.53
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£627.65 Incl. VAT £753.18
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
BPT
Manufacturer Part Number
XTS/7IP WH WIFI
Product Series
XTS
Product Type
Video Door Phone
General information
Application/Usage
Entryway
Technical information
Device Supported
Video entry phone
Physical characteristics
Colour
White
Depth
24.00mm
Height
129.00mm
Width
185.00mm
Power description
Power Source
PoE (Power over Ethernet)
Product information
Mount Type
Surface Mount
Miscellaneous
Compatibility
BPT IP360 Systems
Attributes
Compatibility
BPT IP360 Systems
Device Supported
Video entry phone
Package Contents
Handsfree Video Entry Phones for IP360 Systems; Bracket
Power Source
PoE (Power over Ethernet)

Specifications

Brand Name BPT
Manufacturer Part Number XTS/7IP WH WIFI
Product Series XTS
Product Type Video Door Phone

General information

Application/Usage Entryway

Technical information

Device Supported Video entry phone

Physical characteristics

Colour White
Depth 24.00mm
Height 129.00mm
Width 185.00mm

Power description

Power Source PoE (Power over Ethernet)

Product information

Mount Type Surface Mount

Miscellaneous

Compatibility BPT IP360 Systems

Attributes

Compatibility BPT IP360 Systems
Device Supported Video entry phone
Package Contents Handsfree Video Entry Phones for IP360 Systems; Bracket
Power Source PoE (Power over Ethernet)

BPT XTS/7IP WH WIFI xts monitor screen

BPT XTS/7IP WH WIFI xts monitor screen, White

Who this is for

For the installer — this is the xts monitor screen supplied under BPT part number XTS/7IP WH WIFI. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a xts monitor screen made by BPT. The part number XTS/7IP WH WIFI is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this xts monitor screen is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact xts monitor screen I have been quoted? Check the manufacturer part number XTS/7IP WH WIFI against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against XTS/7IP WH WIFI answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
