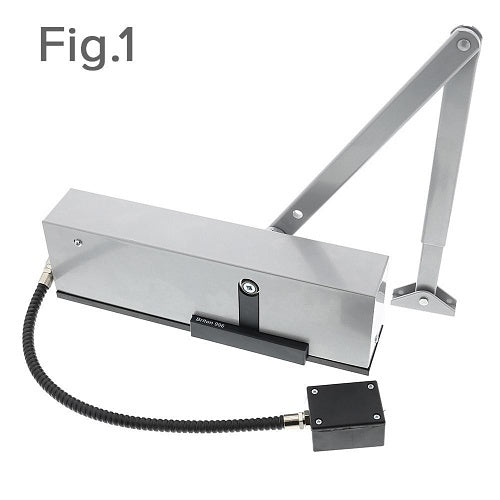

Briton 996/FLSL/550 flexible loop
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Briton 996/FLSL/550 is a flexible loop.
A series door closers with an integrated electromagnetic hold-open mechanism. Typically used on fire rated doors where the hold-open or swing-free feature is required.
Key features
- Fixed power size EN 3, EN 4 and EN 5
- Satisfies the requirements of Approved Document M
- Suitable for doors up to 950mm wide and 60kg (9963), 1110mm wide and 80kg (9964), 1250mm wide and 100kg (9965)
- Certified for door, transom and parallel arm mount applications
- Caption plate can be set to operate in hold-open or swing-free at the point of installation
- Adjustable closing speed and latch action
- Fitting template for quick and easy installation
- Designed for use on low voltage circuits 24VDC linked to a fire alarm
- Supplied with armset and brackets for regular or transom mounting
- Electromagnet is controlled by the building fire alarm / detector and activates the 'catch plate' to ensure the door closes automatically in the event of a fire or power failure
If you are matching this to an existing installation, work from the 996/FLSL/550 part number rather than the description.
-
Download
- 996/FLSL/550 — Product Manual
Specifications
Power description
Attributes
Specifications
| Brand Name | Briton |
|---|---|
| Manufacturer Part Number | 996/FLSL/550 |
Power description
| Input Voltage | 24V DC |
|---|
Attributes
| Input Voltage | 24V DC |
|---|
