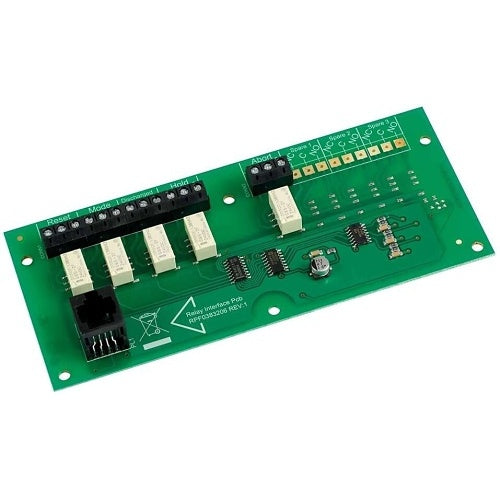

C-TEC EP212 fire alarm control panel accessory
About this product
Please note: this is a non-returnable item (excluding faulty goods)
C-TEC EP212 is a fire alarm control panel accessory.
The C-Tec EP212 Output Expansion Relay Board is an optional system expansion device designed for use with the EP203 three zone automatic extinguisher panel. This board mounts inside the EP203 panel and provides five volt free relay contacts including reset, mode, discharged, hold, and abort. The reset relay activates during the panel's reset cycle, while the mode relay switches when the extinguishant system mode changes to manual.
Additionally, the discharged relay signals when the extinguishant has been released, the hold relay halts the extinguishant release sequence under specified conditions, and the abort relay cancels the release sequence upon receiving an abort input.
Key features
- An optional system expansion device for use with the EP203 three zone automatic extinguisher panel.
- Mounts inside the EP203 panel to provide five volt free relay contacts (reset, mode, discharged, hold and abort).
- Reset relay switches during the panel’s reset cycle.
- Mode relay switches when the extinguishant system’s mode is changed to manual.
- Discharged relay switches when a released flow switch input (e.g. from the extinguishant pipework) is received to indicate the extinguishant has been released.
- Hold relay switches when a hold input is received at the panel. If the panel is in 2nd stage alarm (i.e. it is in automatic mode and detection circuits are activated, or it is in either automatic/manual mode and a manual release input is operated) the extinguishant release sequence is halted.
- Abort relay switches when an abort input is received at the panel to cancel the extinguishant release sequence
If you are matching this to an existing installation, work from the EP212 part number rather than the description.
Specifications
Certifications
Specifications
| Brand Name | C-TEC |
|---|---|
| Manufacturer Part Number | EP212 |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Exempt |
