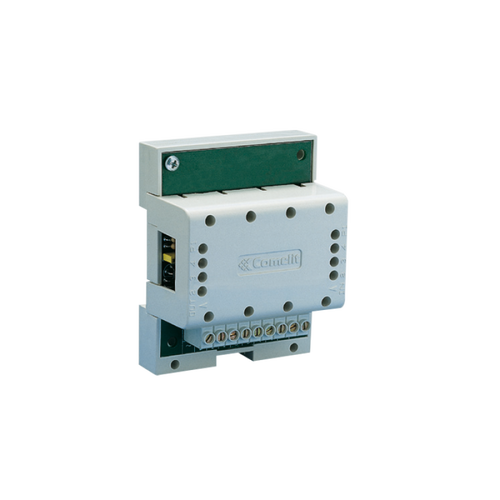

Comelit PAC 1415 intercom system branch terminal
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comelit PAC 1415 is an intercom system branch terminal.
Part. 1415 is used to branch up to 4 internal units on the riser (with a different address for each output) and also acts as line protection, isolating the branches in the event of power surges or short circuit. This unit can be used with systems with Simplebus 2 video systems, and as it is powered by the 2 wire bus it does not need any additional power supply.
Max. 100 users can be connected to each Mixer part. 4888 or part.
4888C whatever the number of Art. 1415 used, and max. 3 internal units can be connected in cascade for each output of Art.
1415.
Key features
- Branches up to 4 internal units on the riser
- Integrated line protection for power surges
- Compatible with Simplebus2 video systems
- Powered by 2-wire bus, no extra power supply needed
- Isolates branches during short circuits
- Connects up to 100 users with Mixer part 4888 or 4888C
- Supports cascading of up to 3 internal units per output
If you are matching this to an existing installation, work from the 1415 part number rather than the description.
Specifications
Technical information
Certifications
Attributes
Specifications
| Brand Name | Comelit PAC |
|---|---|
| Manufacturer Part Number | 1415 |
| Product Type | Intercom System Branch Terminal |
Technical information
| Device Supported | Intercom System |
|---|
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Attributes
| Device Supported | Intercom System |
|---|
Comelit PAC 1415 intercom system branch terminal
