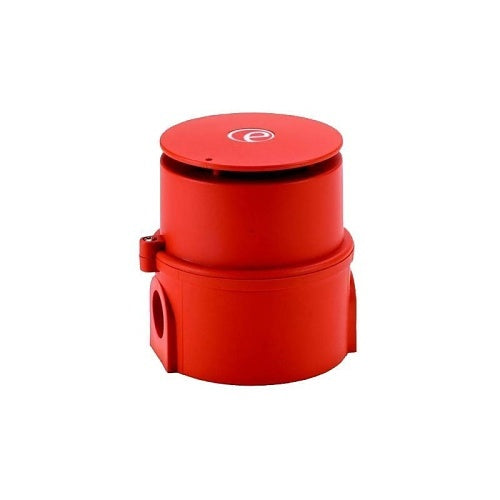

Comelit PAC ISMA1 siren, Red
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comelit PAC ISMA1 is a siren from the ATEX range.
ATEX Sounder designed for installation in environments with a high risk of explosion. To be connected to Zener barrier item 48BAZ001, maximum 2 sirens per line, with synchronised sound. It has 49 different tones programmable via DIP-Switches and second and third tone option for different alarm stages.
Operating voltage 16-28V CC. Maximum power consumption 25 mA. IP65 Protection rating.
ATEX II 1G Ex ia IIC T4 Ga approved and certified. Certified to EN54-3.
Key features
- Supports up to 2 sirens per line with synchronised sound
- Second and third tone options for different alarm stages
- Operating voltage range: 16-28V DC
- Maximum power consumption: 25 mA
- IP65 Protection rating
- ATEX II 1G Ex ia IIC T4 Ga approved
If you are matching this to an existing installation, work from the ISMA1 part number rather than the description.
-
Download
- ISMA1 — Product Manual
Specifications
Technical information
Certifications
Environmental conditions
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Comelit PAC |
|---|---|
| Manufacturer Part Number | ISMA1 |
| Product Series | ATEX |
| Product Type | Siren |
Technical information
| Alarm Type | Audible |
|---|---|
| Connectivity Technology | Wired |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Environmental conditions
| Sound Emission | 100dB |
|---|
Physical characteristics
| Colour | Red |
|---|---|
| Height | 98.00mm |
| Weight | 230.00g |
Power description
| Input Voltage | 28V DC |
|---|
Product information
| Diameter | 86.00mm |
|---|
Miscellaneous
| Compatibility | Zener barrier item 48BAZ001 |
|---|
Attributes
| Compatibility | Zener barrier item 48BAZ001 |
|---|---|
| Input Voltage | 28V DC |
| Weight | 230.00g |
